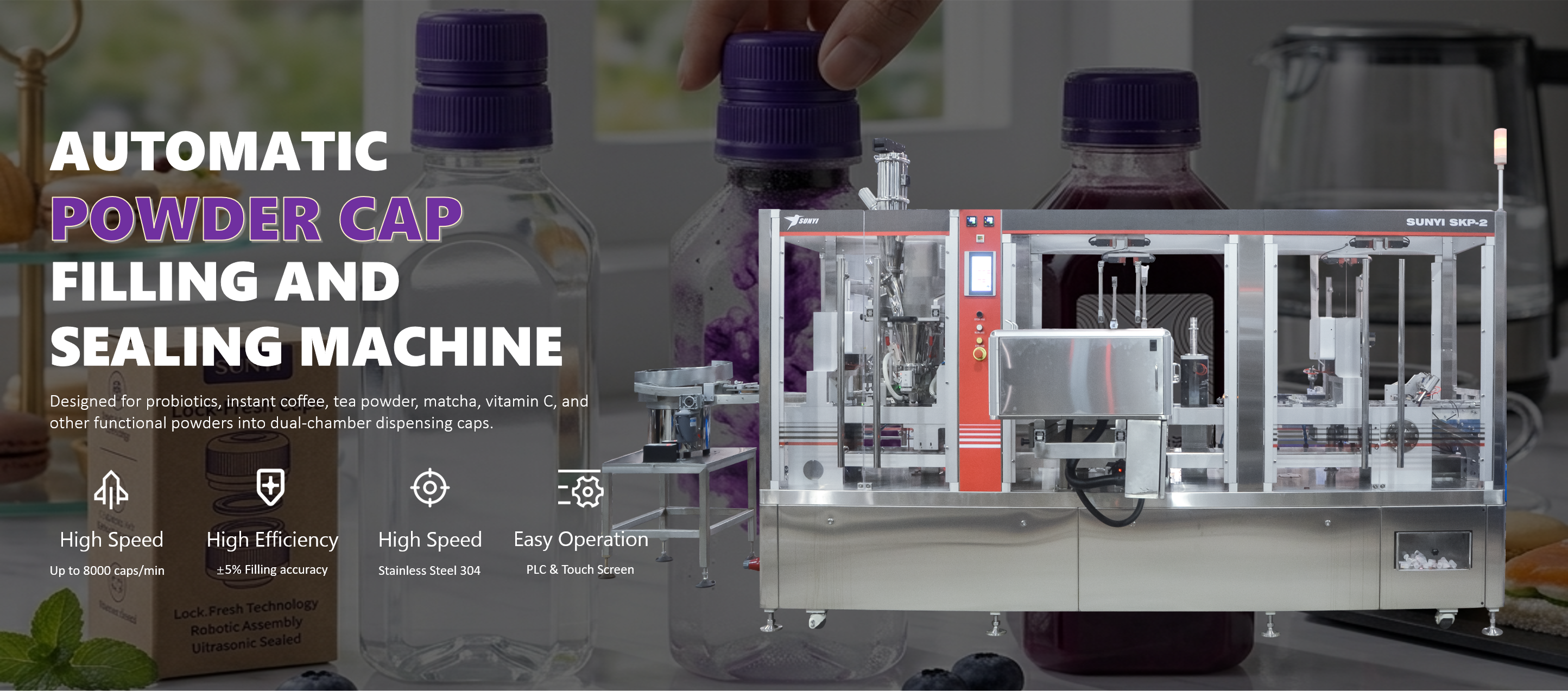

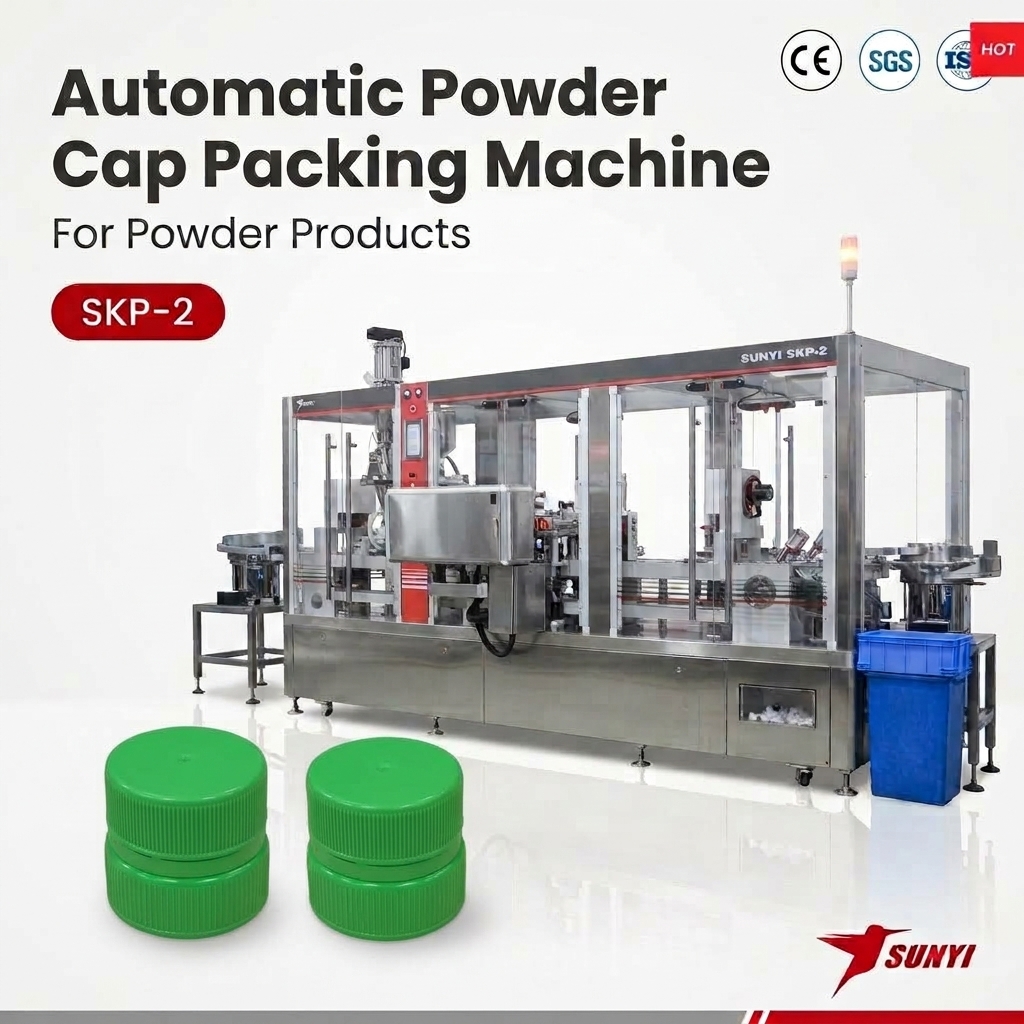

SKP-2
SUNYI
HS 842230,9090

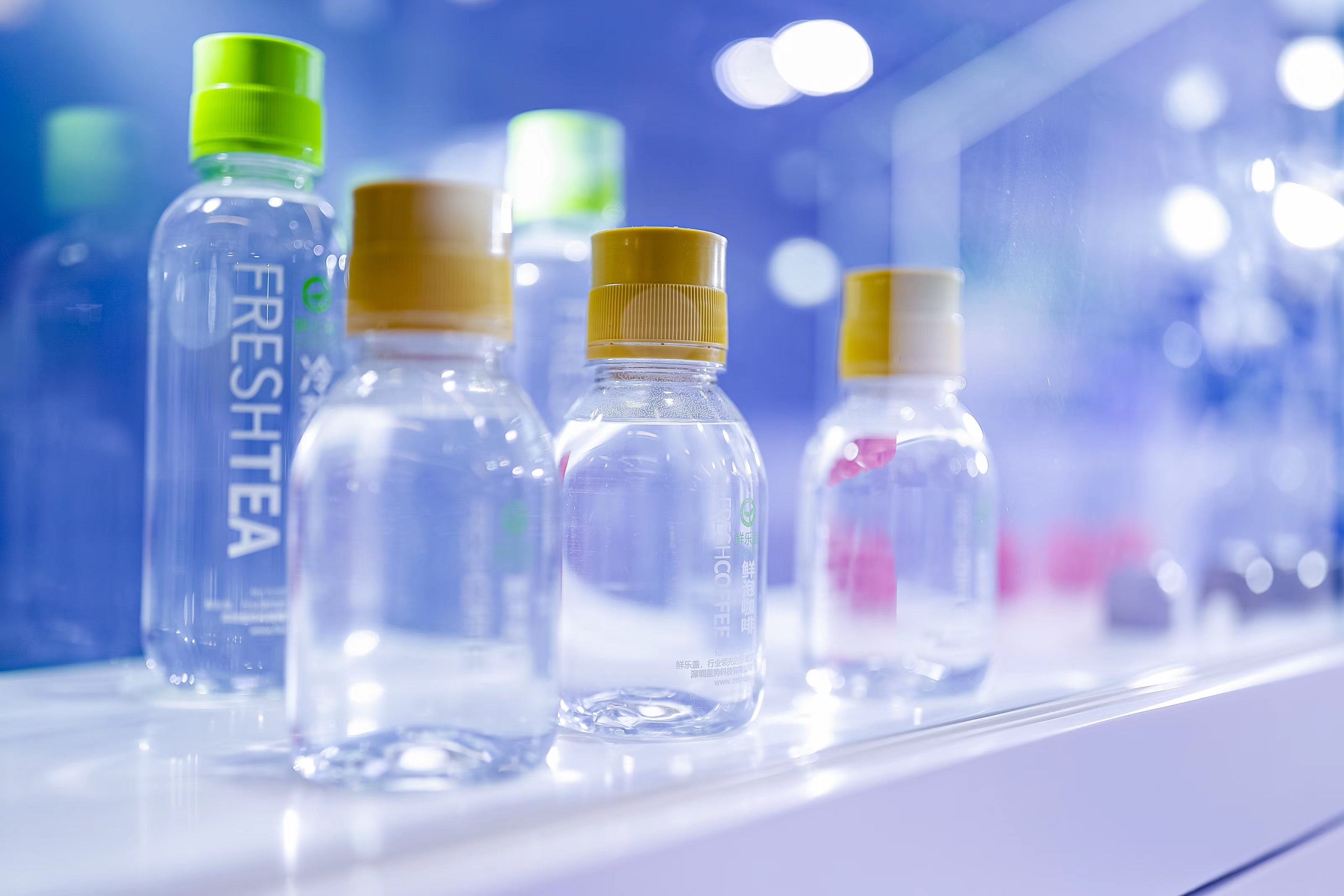

B Cap is an innovative beverage packaging concept that combines powder storage and a drinking-water bottle cap into one convenient format.
The powder is pre-filled and sealed inside the cap, allowing consumers to carry it conveniently wherever they go. When they want to enjoy a functional or flavored beverage outdoors, they simply place the B Cap on a bottle of water, twist it open, and release the powder into the water. After mixing, the beverage is ready to enjoy.
B Cap also creates opportunities for consumers to mix and match different powder formulas according to their personal preferences, making it suitable for functional beverages, nutrition, flavor enhancement, and personalized beverage applications.
SUNYI provides a complete automated solution covering the major processes required for B Cap production:

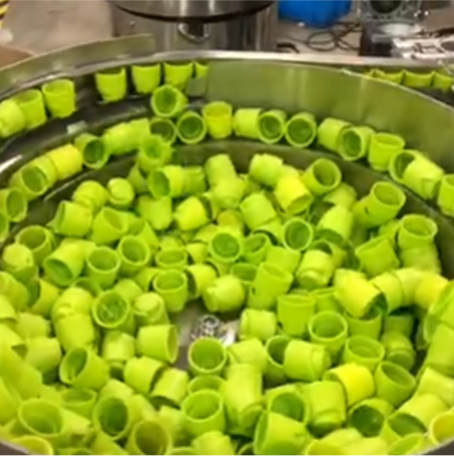

Automatic Cap Sorting & Feeding
B Caps are automatically sorted and fed into the production system.
Cap Feeding & Precision Positioning
The caps are accurately transferred and positioned for the subsequent filling process.
Powder Filling
The required powder is accurately dosed and filled into the powder chamber.
Automatic Inner Plug Sorting
The inner plugs are automatically organized and supplied to the assembly station.

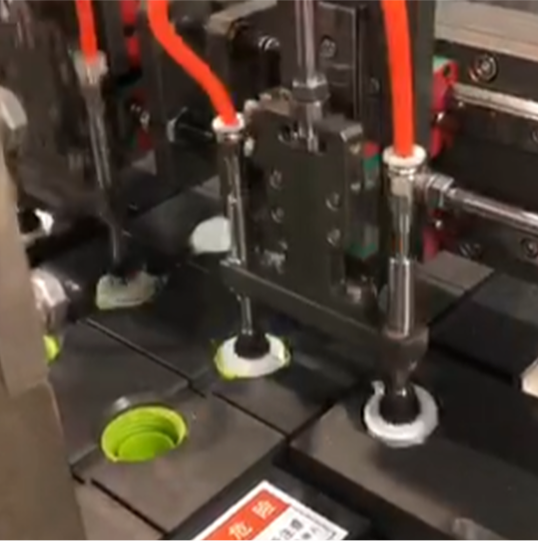

Automatic Pick-and-Place & Positioning
The inner plugs are automatically picked, positioned, and placed with high precision.
Inner Plug & Cap Assembly
The inner plug is accurately assembled with the filled cap to ensure reliable component positioning.

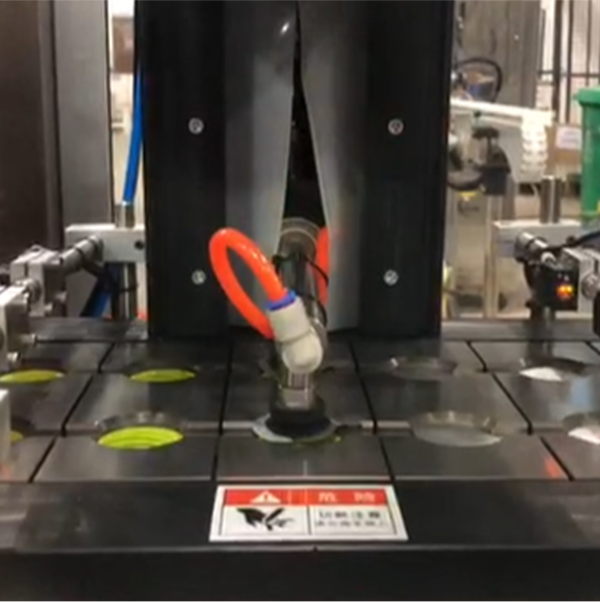

Film Placement & Heat Sealing
The sealing film is automatically placed and heat-sealed to create a secure barrier for the powder.

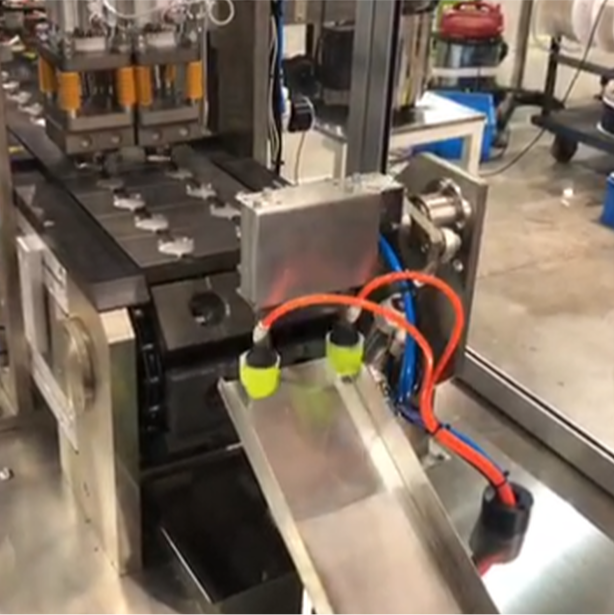

Automatic Finished Product Discharge
After all processes are completed, qualified B Caps are automatically discharged from the machine.
The complete machine can achieve a production capacity of up to 5,000 B Caps per hour, making it a suitable solution for medium-capacity B Cap production.
To provide additional product quality control, the system can also be equipped with optional functions such as:
• UV sterilization
• Empty cap cleaning
• Online weighing
• Automatic quality inspection and rejection
These additional functions help improve process hygiene, filling consistency, and finished-product quality.
From cap feeding and powder filling to inner plug assembly, film sealing, inspection, and finished-product discharge, SUNYI provides a complete automated B Cap packaging solution designed for stable, efficient, and high-quality mass production.
SUNYI — Customized Packaging Automation for Innovative Beverage Solutions.
Basic Farameters
Certificate | CE, SGS , ISO 9001, |
The packed object | Tea Powder, Powder-dispensing caps can be filled with various powders, including freeze-dried tea powder, freeze-dried coffee powder, blended coffee powder, nutritional supplement powder, anthocyanin powder, flower tea powder, botanical extracts, herbal powder, matcha powder, etc. |
Capacity | 70-100 caps /per minute |
Filling system | Servo-controlled piston filling pump |
Filling accuracy | ± 5% |
Filling range | 1-5g |
Sealing | pre-cut lids/ sealing film in roll/capping |
Balance Tank Capacity | 20L |
Power | 7.5 KW |
Power Supply | 3-Phase 380V 50HZ/60HZ |
Compressed air pressure | ≥0.7Mpa |
Compressed Air Consumption | 0.7 mˆ3／minute |
Machine Weight | 3200kgs |
Machine Dimension | 5241mm（L）*2047mm(W)*2800mm(H) |

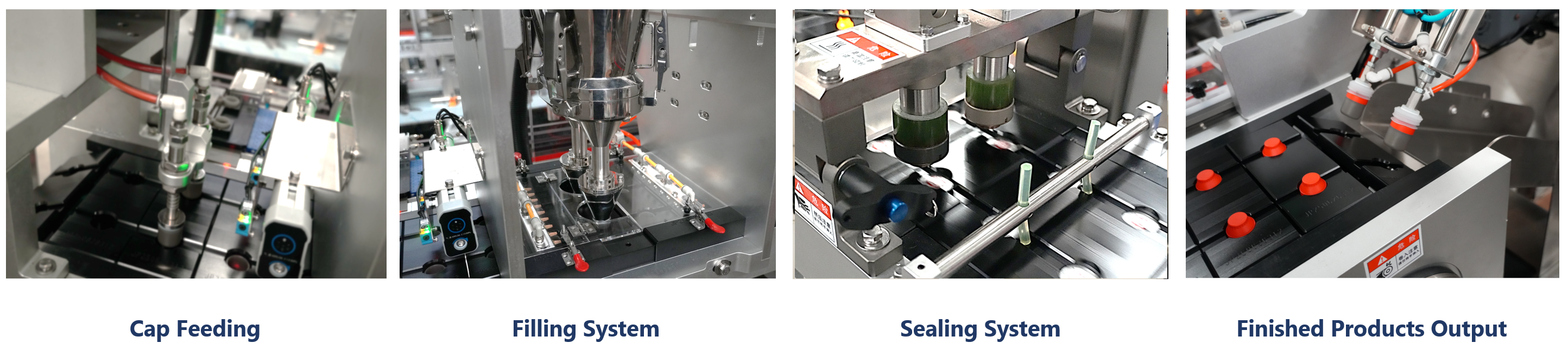

DETAILS DISPLAY
1.High Speed & Accuracy: Equipped with a servo-controlled piston filling pump, ensuring high accuracy (±5%) and stable operation.
2.Full Automation: Integrates automatic cap feeding, servo filling, sealing, online weighing, and finished product output.
3.Easy Operation & Maintenance: Controlled via PLC and interactive touch screen, designed for easy cleaning and routine maintenance.
4.Sanitary Construction: Built with Stainless Steel 304 to meet strict hygiene standards.
5.Optional Features & Upgrades:
•Nitrogen flushing system or vacuum system
•Precise temperature control system
•Cap quality control system
•Dust removal system
WIDE APPLICATION
•Applicable Materials:
•Freeze-dried tea powder, freeze-dried coffee powder, blended coffee powder
•Probiotics, Vitamin C, and nutritional supplement powders
•Matcha powder, herbal tea powder, botanical extracts, herbal powders
•Anthocyanin powder and other functional powders
•Compatible Cap Materials: PP, PE, PET, and other materials.
