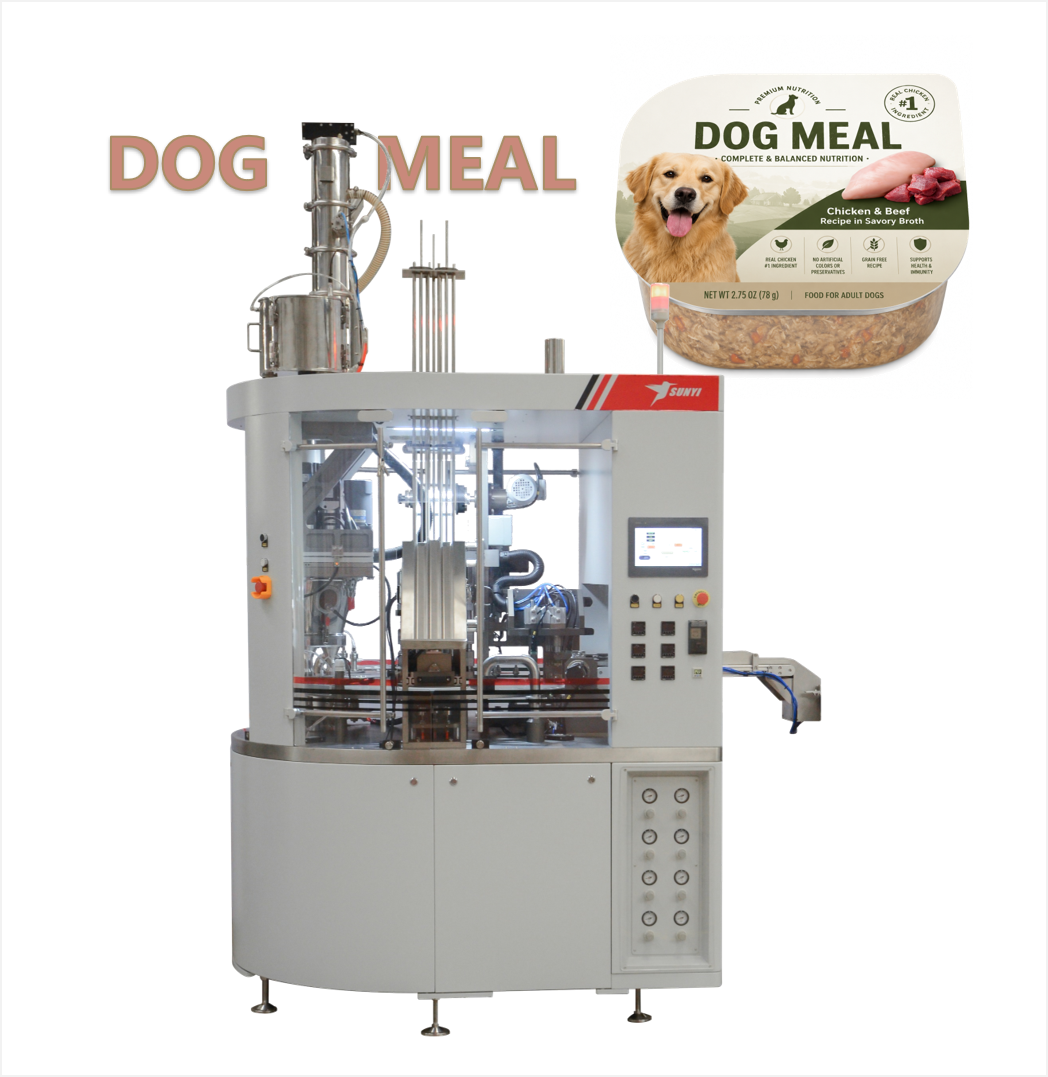

Automatic Dog Meal Box Filling & Sealing Packaging Line for Wet DogFood (Paste, Mousse & Chunks)
Elevate your pet food manufacturing efficiency with SUNYI’s Automatic Dog Food Cup Filling and Sealing Machine. Engineered specifically for the fast-growing pet nutrition market, this high-performance system delivers a complete, turn-key solution for packaging single-serve meal toppers, wet dog food, meat pastes, mousses, and gravy toppers into preformed portion cups, trays, and containers.
Constructed with premium 304-grade stainless steel and designed for strict hygiene compliance, the line seamlessly integrates automatic cup feeding, servo-controlled precision filling, nitrogen flushing, foil sealing, date coding, and finished product discharge. Whether handling free-flowing broths or highly viscous meat pastes with small particles, our system guarantees superior dosing accuracy, robust leak-proof sealing, and consistent package presentation—helping pet food brands reduce labor costs and maximize throughput.
SUNYI's automatic meat paste cup filling and sealing machine is engineered for consistent production of single-serve cups. The system combines automatic cup dispensing, precision servo filling, heat sealing and finished product discharge into one compact solution. Designed for hygienic food processing, it supports PP, PET and aluminum containers and can be equipped with piston fillers, rotary pumps, nitrogen flushing, date coding and inspection systems. Its modular design allows manufacturers to package premium products efficiently while maintaining accurate fill weights, excellent seal integrity and low operating costs.
Basic Farameters
Certificate
CE, SGS , ISO 9001,
The packed object
wet cat food, dog food purées, pet broth, meat gravy, pet cheese spread, pet toppers, freeze-dried meat cups, and many other premium pet food products
Capacity
120-135 cups /per minute
Filling system
Independent Ceramic rotary valve pump with cutting off
Filling accuracy
± 1%
Filling range
10-300g
Sealing
pre-cut lids
Balance Tank Capacity
80L
Power
15 KW
Equipment Details
Vertical Cup Holder and cup loading system
•The extended cup storage compartment allows for one-time cup filling and can operate for at least 20 minutes.
•The cup guiding device enables easy addition of cups by hand, with a user-friendly operation.
•The vacuum suction cup assists in the cup dropping process, making it more stable and accurate.
Cup Detection and Cleaning
•Detect whether there is a cup or not through photoelectricity. No cup means no filling.
•The ion wind sweeps the empty cup, effectively preventing static electricity from adhering, and at the same time, it uses vacuum to remove dust and other foreign substances.
•Strong ultraviolet irradiation further enhances the cleanliness level.
Filling and Cleaning System > Fully sanitary structure design (Food / Pharmaceutical Grade) ;
•The liquid-contact parts of the entire machine are made of SUS304/SUS316L stainless steel.
•The inner surface is polished with a mirror finish, reducing the risk of residue and wall attachment.
•Arc-shaped transition design to avoid accumulation of materials in dead corners
•Quick-install clamp structure, easy to assemble and disassemble, reducing pollution risks.
•The filling error can be controlled within ±1% (depending on the properties of the material)
• Anti-drip and anti-leakage structure design, reducing wire drawing and splashing
> Spray ball CIP cleaning system;
•Internal circulation cleaning (Full CIP Loop) ;The cleaning solution circulates within the system, covering storage tanks, pipelines, distributors, and filling heads. It is suitable for high-standard food products or continuous production lines.
•Quick pulse cleaning (Pulse Cleaning); By using pulse spraying to enhance the flushing force, it effectively removes sticky residues and significantly shortens the cleaning time.
> Fluid stable conveying system;
•Sanitary hose connection.
•Streamlined flow path, reduction of pressure fluctuations.
•Pressure equalization distribution structure, ensuring consistency for multiple heads.
Lid Placing and position system Vertical Lids Storage
•made of polished stainless steel, can ensure that the lids does not deform while facilitating smooth extraction without any jamming.
•> Placing system
•The vacuum flexible loading and unloading mechanism, combined with the precise repetitive positioning design of the mechanical structure, enables efficient visual positioning.
> Lids detecting system
•Photoelectric detection, automatic shutdown upon no lid detection, and manual lid replenishment by workers is possible.
Heat Sealing System
•Sealing pads able to seal every type of heat-sealing foil. Easy to change and clean
•Sealing temperature be controlled by thermocouple
•Sealing pads every area temperature is same
•because of our designed elec-heating technology, in this case, sealing effect been improved.
•All sealing parameters are adjustable (time-pressure-temperature) •Fast removal system for easy cleaning, maintenance and changeover
Cup Output & Conveying System
•Catching the cups.
•Rotating the arm and place the capsules on an exterior conveyor
•Stainless Steel frame conveyor with plastic belt
Date coding and inspection
•Ultraviolet laser marking machine; Cold processing principle: No scorching, no deformation The markings are clearer and more detailed. More friendly to thin-walled PP; No consumables, long-term costs are controllable; More environmentally friendly, with dust recovery included
•Visual inspection
Box Packing
•Organize the materials in an orderly manner
•Robot automatic box-filling
•Spray glue and close the box
Can be customized according to the shape of the box.
SUNYI Intelligent Company Introduction
SUNYl is not just an equipment manufacturer-we are your strategic partner in single-serve packaging excellence. We combine deep process expertise with Industrial 5.0 innovation to deliver complete solutions that transform your production capabilities.
Shipping & Delivery
FAQ
1. What is a Preformed Cup for pet food paste Filling and Sealing Machine?
Our pet food paste filling and sealing machine is an automated packaging solution specifically designed for single-serve pet food paste, small, and high-viscosity liquids.
2. How does the machine work?
It integrates functions such as automatic cup dropping, quantitative filling, sealing, film cutting and cup discharging, achieving a stable, efficient and hygienic production process.
3. What's the core functions?
The core functions include precise quantitative filling, hygienic structure design, stable sealing system, and modular expansion.
4. Who can use this machine?
Suitable for chain restaurant sauce suppliers, airline food producers, takeout sauce manufacturers, food processing enterprises, sauce branders, and so on.
5. Is this easy to Clean?
Yes, it have the Internal circulation cleaning (Full CIP Loop), the cleaning solution circulates within the system, covering storage tanks, pipelines, distributors, and filling heads. It is suitable for high-standard food products or continuous production lines.
6. Why use preformed cups?
Better Food Protection and Longer Shelf Life
Pet food trays provide an excellent barrier against oxygen, moisture, and external contamination. Combined with hermetic heat sealing, the package helps maintain freshness, flavor, and nutritional value throughout the shelf life.
Premium Appearance and Higher Market Value
Compared with traditional pouches or cans, rigid trays offer a more attractive presentation. The flat surface provides more space for colorful printing, product information, and brand communication, helping products stand out on retail shelves.
Convenient Feeding Experience
Pre-portioned trays are designed for easy opening and serving. Pet owners can directly feed pets without additional preparation, making them ideal for single-meal portions.
