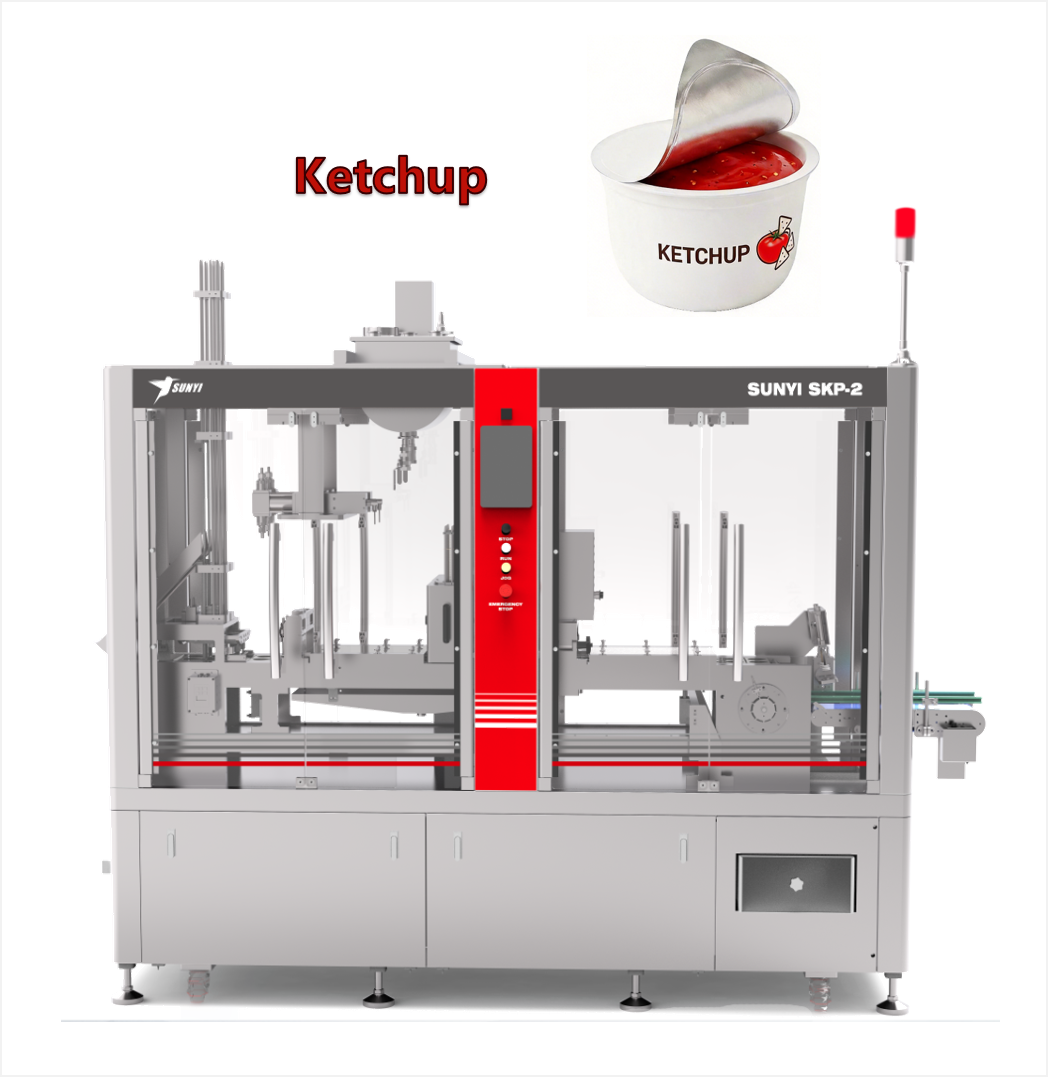

The Automatic Ketchup Cup Filling and Sealing Machine is designed for high-speed, hygienic, and accurate packaging of ketchup, mayonnaise, chili sauce, salad dressing, cheese sauce, and other liquid or semi-liquid condiments in preformed plastic cups.
Equipped with a servo-controlled filling system, automatic cup feeding, foil sealing, date coding, and optional lid placement, the machine ensures precise filling accuracy, reliable sealing performance, and consistent production quality. Built with food-grade stainless steel and designed for easy cleaning and maintenance, it meets the demanding requirements of modern food manufacturers.
Suitable for single-serve portion cups, takeaway condiments, retail packaging, and food service applications, the machine provides an efficient and cost-effective packaging solution while supporting a wide variety of cup sizes and packaging formats.
The Automatic Ketchup Cup Filling and Sealing Machine is designed for high-speed, hygienic, and accurate packaging of ketchup, mayonnaise, chili sauce, salad dressing, cheese sauce, and other liquid or semi-liquid condiments in preformed plastic cups.
Equipped with a servo-controlled filling system, automatic cup feeding, foil sealing, date coding, and optional lid placement, the machine ensures precise filling accuracy, reliable sealing performance, and consistent production quality. Built with food-grade stainless steel and designed for easy cleaning and maintenance, it meets the demanding requirements of modern food manufacturers.
Suitable for single-serve portion cups, takeaway condiments, retail packaging, and food service applications, the machine provides an efficient and cost-effective packaging solution while supporting a wide variety of cup sizes and packaging formats.
Basic Farameters
Certificate
CE, SGS , ISO 9001, UL
The packed object
ketchup, mayonnaise, chili sauce, salad dressing, cheese sauce, and other liquid or semi-liquid condiments
Capacity
80-90Pieces /per minute
Filling system
Independent Servo Driven Piston Pump
Filling accuracy
± 1%
Filling range
1-50g
Sealing
pre-cut lids/sealing film in roll
Balance Tank Capacity
80L
Power
25 KW

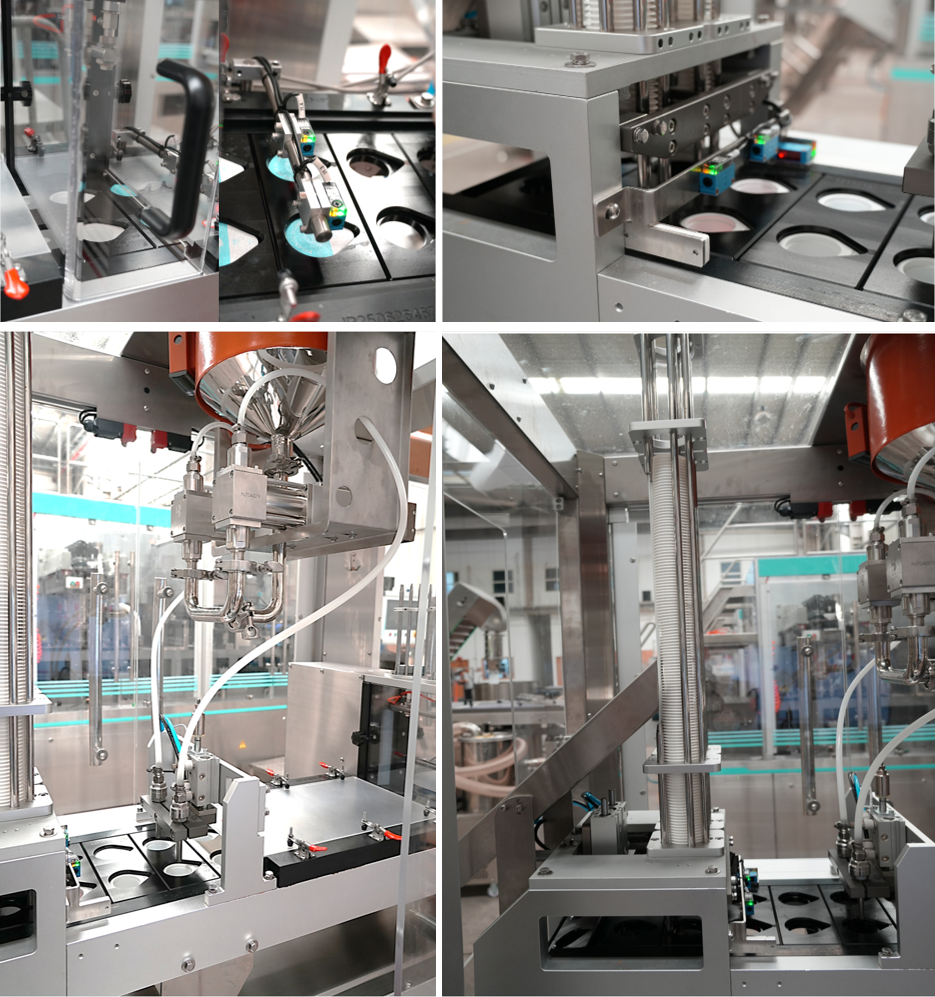

Equipment Details

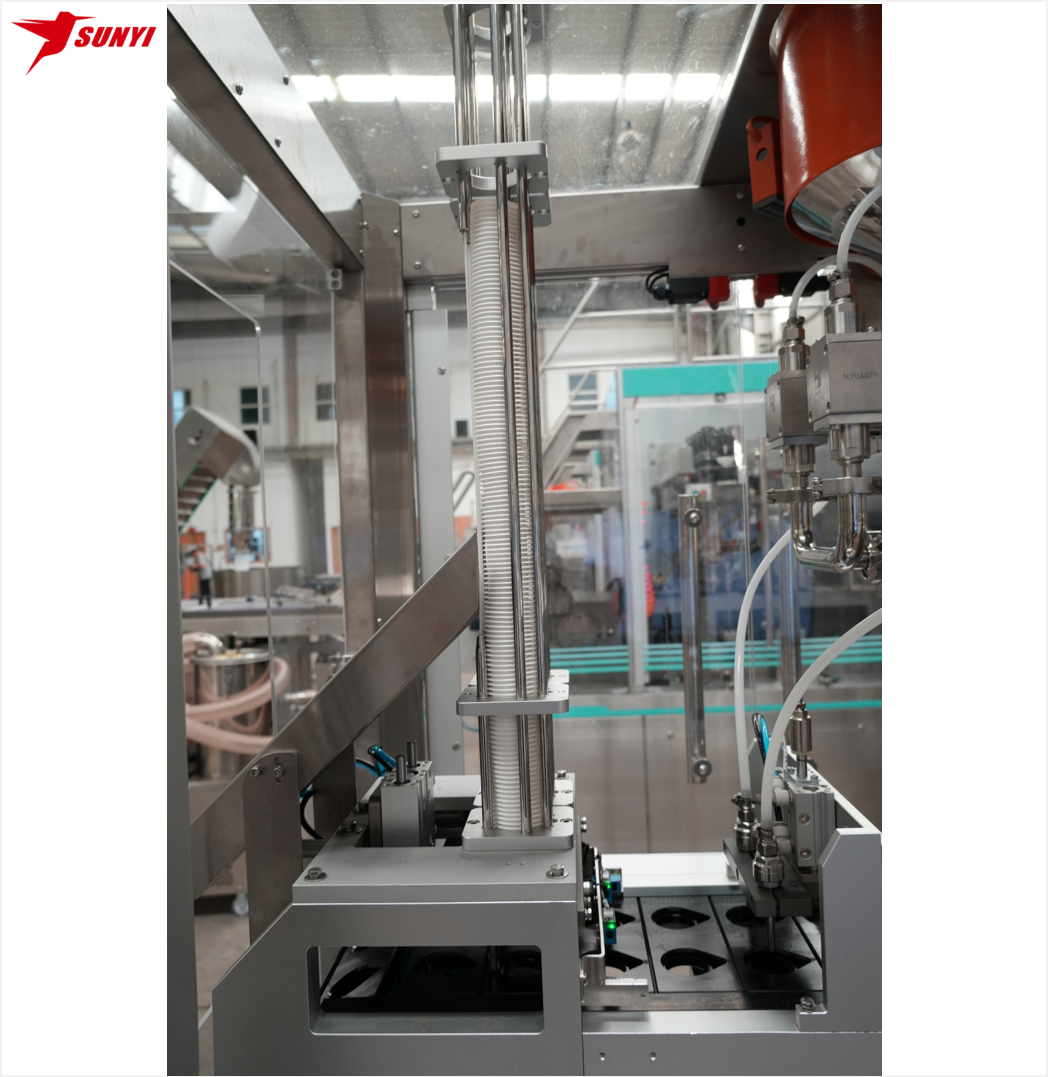

Vertical Cup Holder and cup loading system
•The extended cup storage compartment allows for one-time cup filling and can operate for at least 20 minutes.
•The cup guiding device enables easy addition of cups by hand, with a user-friendly operation.

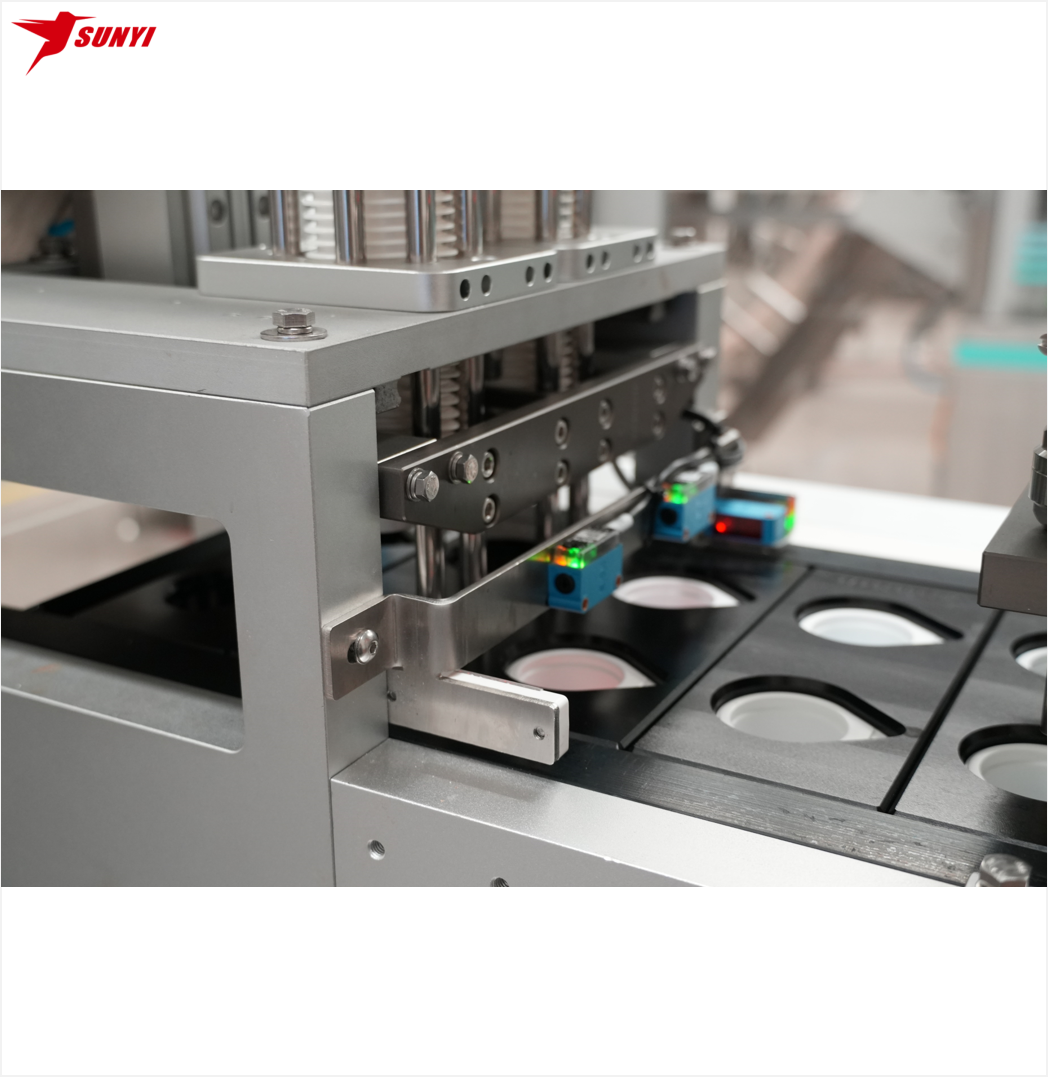

•The vacuum suction cup assists in the cup dropping process, making it more stable and accurate. Cup Detection and Cleaning
•Detect whether there is a cup or not through photoelectricity. No cup means no filling.
Filling and Cleaning System > Fully sanitary structure design (Food / Pharmaceutical Grade) ;
•The liquid-contact parts of the entire machine are made of SUS304/SUS316L stainless steel.
•The inner surface is polished with a mirror finish, reducing the risk of residue and wall attachment.
•Arc-shaped transition design to avoid accumulation of materials in dead corners
•Quick-install clamp structure, easy to assemble and disassemble, reducing pollution risks.
•The filling error can be controlled within ±1% (depending on the properties of the material)
• Anti-drip and anti-leakage structure design, reducing wire drawing and splashing
> Spray ball CIP cleaning system;
•Internal circulation cleaning (Full CIP Loop) ;The cleaning solution circulates within the system, covering storage tanks, pipelines, distributors, and filling heads. It is suitable for high-standard food products or continuous production lines.
•Quick pulse cleaning (Pulse Cleaning); By using pulse spraying to enhance the flushing force, it effectively removes sticky residues and significantly shortens the cleaning time.
> Fluid stable conveying system;
•Sanitary hose connection.
•Streamlined flow path, reduction of pressure fluctuations.
•Pressure equalization distribution structure, ensuring consistency for multiple heads.

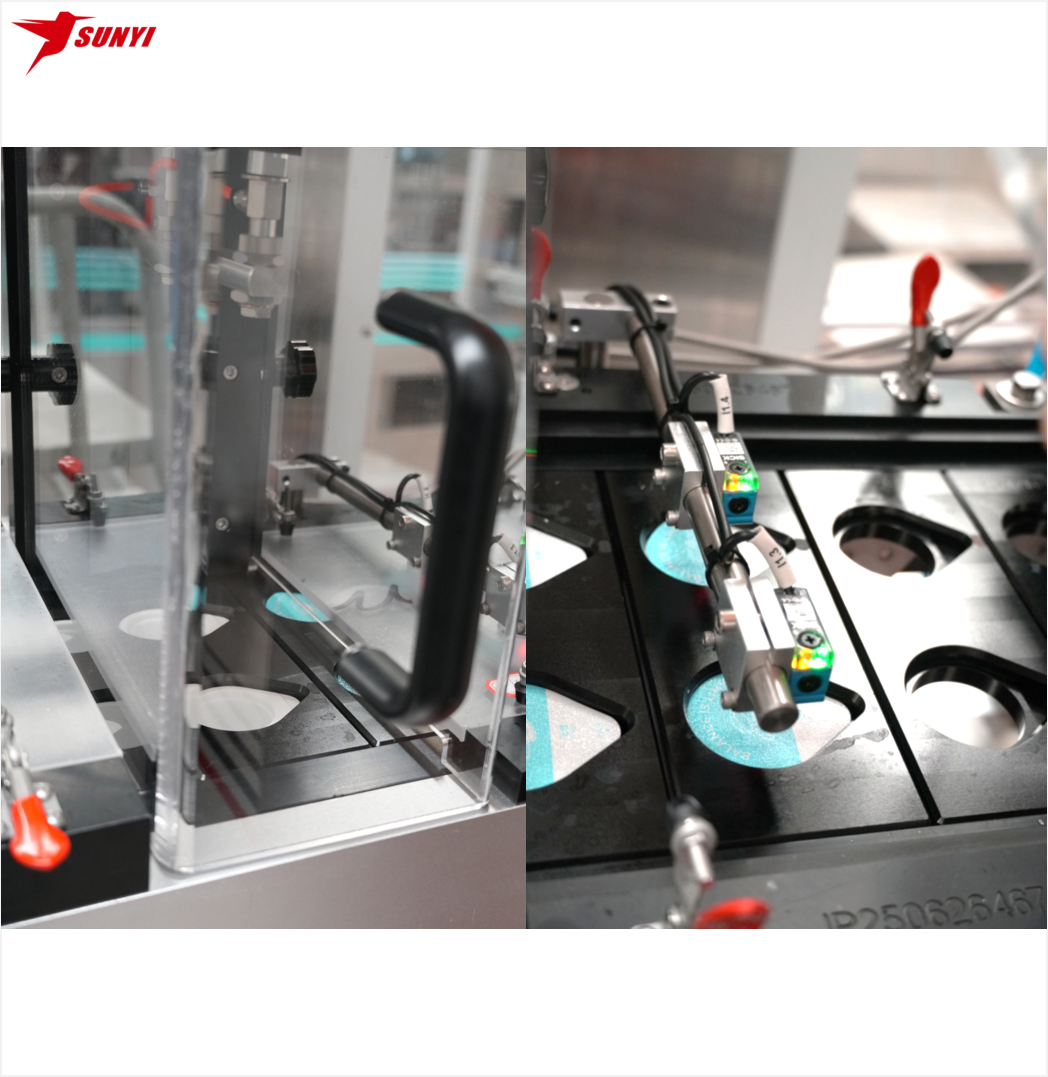

Lid Placing and position system •Vertical Lids Storage
•made of polished stainless steel, can ensure that the lids does not deform while facilitating smooth extraction without any jamming.
•Placing system
•The vacuum flexible loading and unloading mechanism, combined with the precise repetitive positioning design of the mechanical structure, enables efficient visual positioning.
•Lids detecting system
•Photoelectric detection, automatic shutdown upon no lid detection, and manual lidreplenishment by workers is possible.
Second Heat Sealing System
•Sealing pads able to seal every type of heat-sealing foil. Easy to change and clean
•Sealing temperature be controlled by thermocouple
•Sealing pads every area temperature is same
•because of our designed elec-heating technology, in this case, sealing effect been improved.
•All sealing parameters are adjustable (time-pressure-temperature) •Fast removal system for easy cleaning, maintenance and changeover

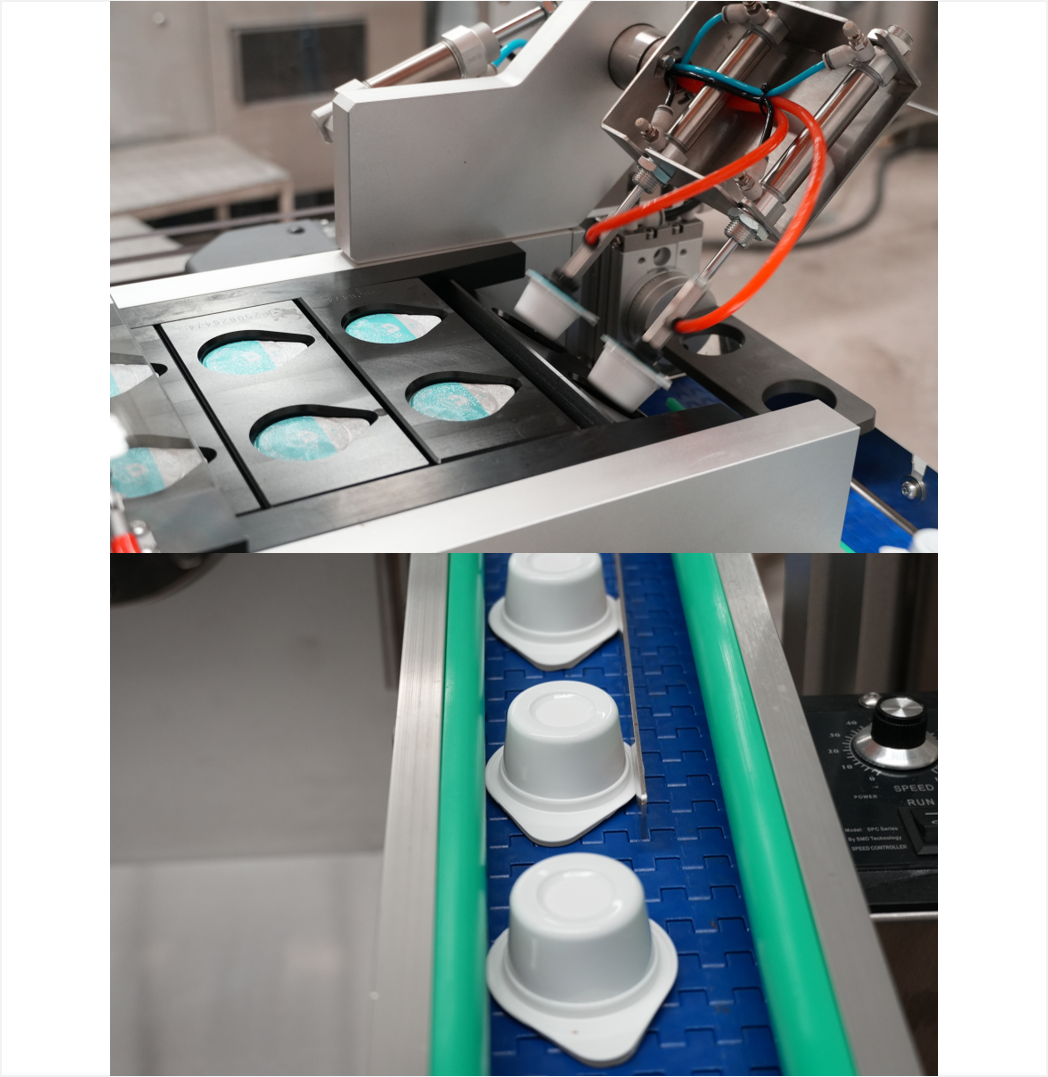

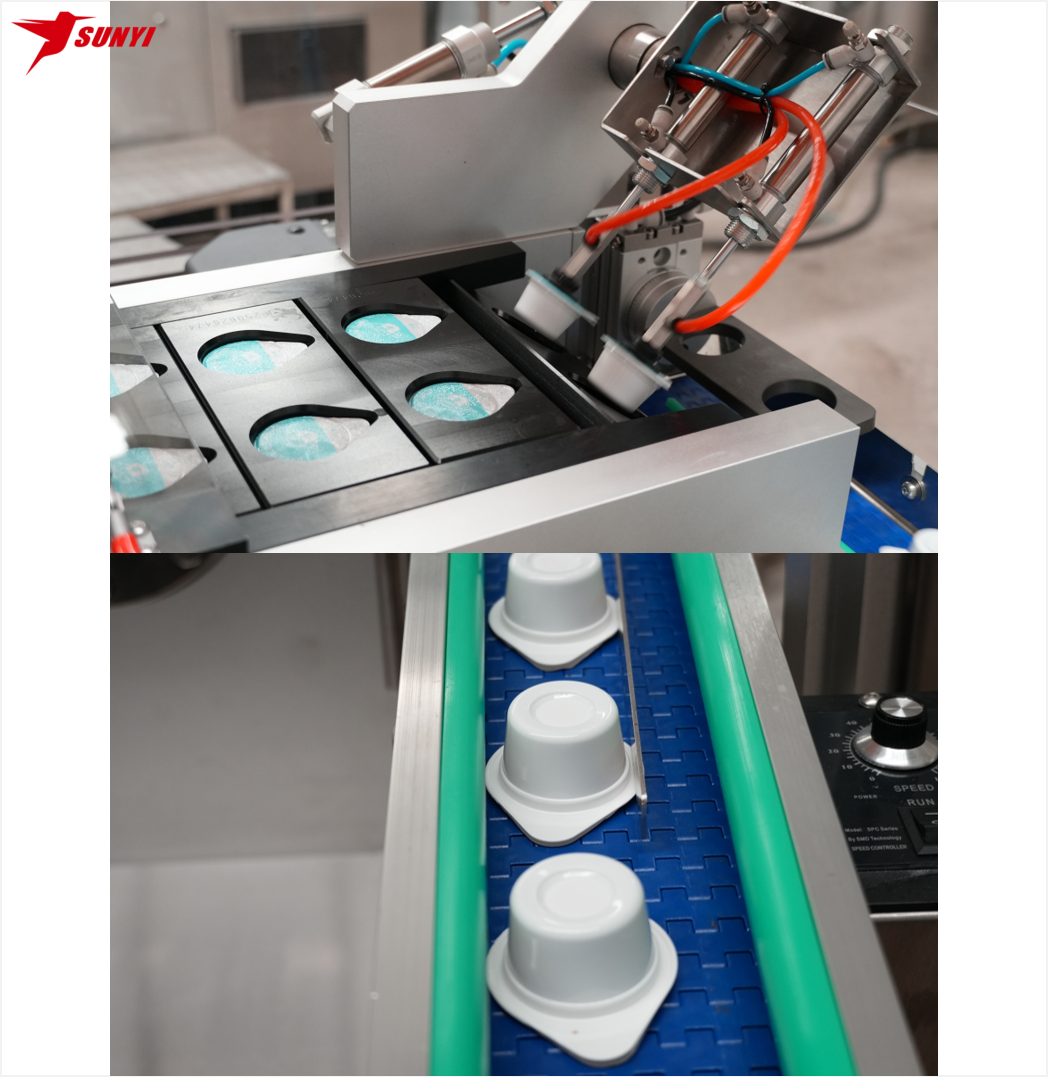

Capsule Output & Overturning System
•Catching the capsules and placement on the overturning arm
•Rotating the arm and place the capsules on an exterior conveyor
•Stainless Steel frame conveyor with plastic belt
•The Pick & Place system will pick up the finished capsules and drop the capsules into this overturn system to make the capsules bottom facing downward.
Date coding and inspection
•Ultraviolet laser marking machine; Cold processing principle: No scorching, no deformation The markings are clearer and more detailed. More friendly to thin-walled PP; No consumables, long-term costs are controllable; More environmentally friendly, with dust recovery included
•Visual inspection
Box Packing
•Organize the materials in an orderly manner
•Robot automatic box-filling
•Spray glue and close the box
Can be customized according to the shape of the box.
The package of finished products reference. This one can be achieved by SUNYI's top loading carton packaging.
SUNYI Intelligent Company Introduction
SUNYl is not just an equipment manufacturer-we are your strategic partner in single-serve packaging excellence. We combine deep process expertise with Industrial 5.0 innovation to deliver complete solutions that transform your production capabilities.
1. What is a Preformed Cup for Sauce Filling and Sealing Machine?
Our sauce filling and sealing machine is an automated packaging solution specifically designed for single-serve sauces, small cup dressings, dipping sauces, honey, syrups, and high-viscosity liquids.
2. How does the machine work?
It integrates functions such as automatic cup dropping, quantitative filling, sealing, film cutting and cup discharging, achieving a stable, efficient and hygienic production process.
3. What's the core functions?
The core functions include precise quantitative filling, hygienic structure design, stable sealing system, and modular expansion.
4. Who can use this machine?
Suitable for chain restaurant sauce suppliers, airline food producers, takeout sauce manufacturers, food processing enterprises, sauce branders, and so on.
5. Is this easy to Clean?
Yes, it have the Internal circulation cleaning (Full CIP Loop), the cleaning solution circulates within the system, covering storage tanks, pipelines, distributors, and filling heads. It is suitable for high-standard food products or continuous production lines.
