SKP-6
SUNYI
HS 842230,9090

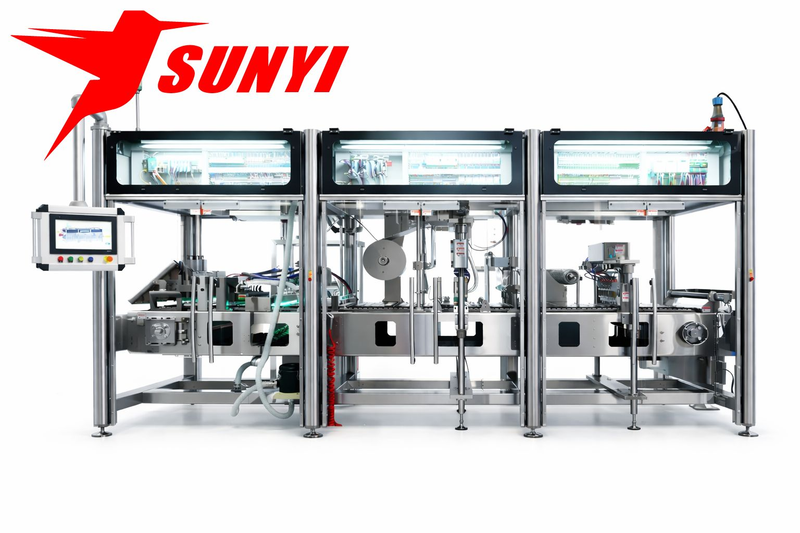

Automatic Viscous Product Cup Filling & Sealing Machine
SUNYI’s Automatic Viscous Product Cup Filling & Sealing Machine is designed for accurately filling and sealing a wide range of high-viscosity and semi-viscous products into preformed cups. The system can be configured according to product viscosity, filling volume, cup size, production speed and packaging requirements, providing reliable and consistent portion control for different food applications.
The machine is suitable for yogurt, butter, peanut butter, chocolate spread, hazelnut butter, honey, mayonnaise, ketchup, sauces, cream, hummus and fruit puree, as well as other viscous and semi-viscous food products. Depending on the product characteristics, SUNYI can integrate suitable filling technologies such as servo-driven piston filling, volumetric filling and customized dosing systems to achieve accurate and stable filling performance.
For products with different viscosities or flow characteristics, the filling system can be customized to reduce dripping, splashing and product residue during filling. For products containing small particles or fruit pieces, the filling system can also be adapted to maintain product integrity while achieving consistent filling accuracy.
After filling, the cups are automatically positioned and sealed with compatible lidding materials. The complete process can integrate cup feeding, product filling, foil lid placement, heat sealing, sealing inspection and finished-cup discharge, creating an efficient automatic packaging solution from empty cups to finished products.

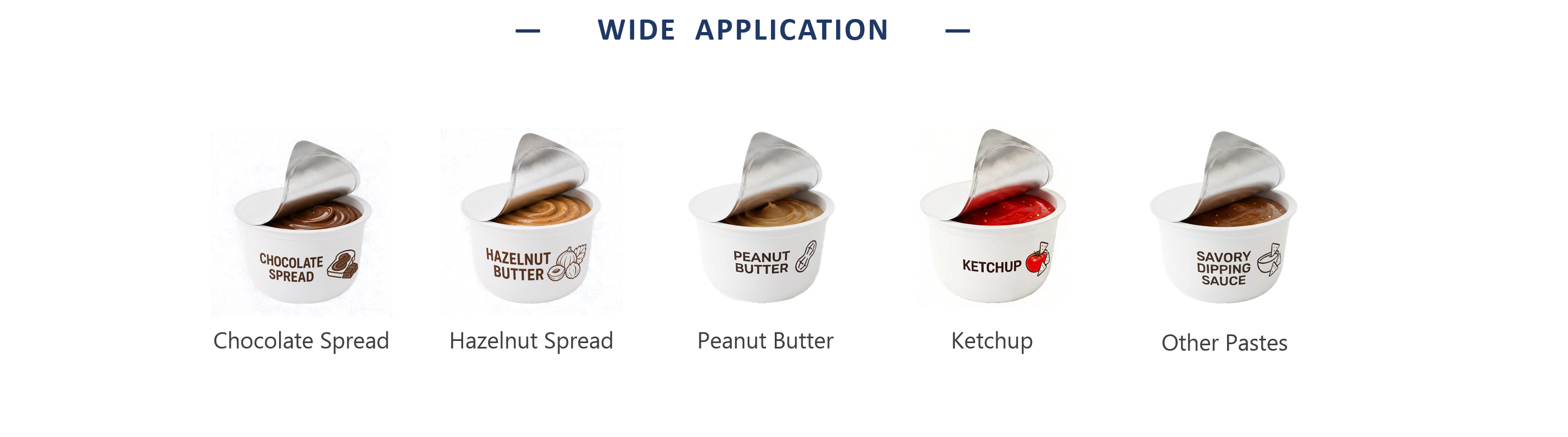

Dairy: Yogurt, cream and other dairy products
Spreads: Peanut butter, chocolate spread, hazelnut butter and butter
Sauces & Condiments: Mayonnaise, ketchup and various sauces
Desserts: Fruit puree and other viscous dessert products
Dips: Hummus and similar portion-packed products
Custom Applications: Other liquid, semi-viscous and viscous food products
Certificate | CE, SGS , ISO 9001 |
The packed object | Chocolate Spread, ketchup, mayonnaise, mustard, barbecue sauce, cheese sauce, salad dressing, peanut butter, and other viscous or semi-liquid condiments |
Capacity | 240-270cups /per minute |
Filling system | Independent Ceramic rotary valve pump with cutting off |
Filling accuracy | ± 1% |
Filling range | 1-350g |
Sealing | pre-cut lids/ sealing film in roll |
Balance Tank Capacity | 80L |
Power | 15 KW |
Power Supply | 3-Phase /1-Phase 380V / 220V 50HZ/60HZ |
Compressed air pressure | ≥0.7Mpa |
Compressed Air Consumption | 0.7 mˆ3／minute |
Machine Weight | 3200kgs |
Machine Dimension | 5241mm（L）*2047mm(W)*2800mm(H) |

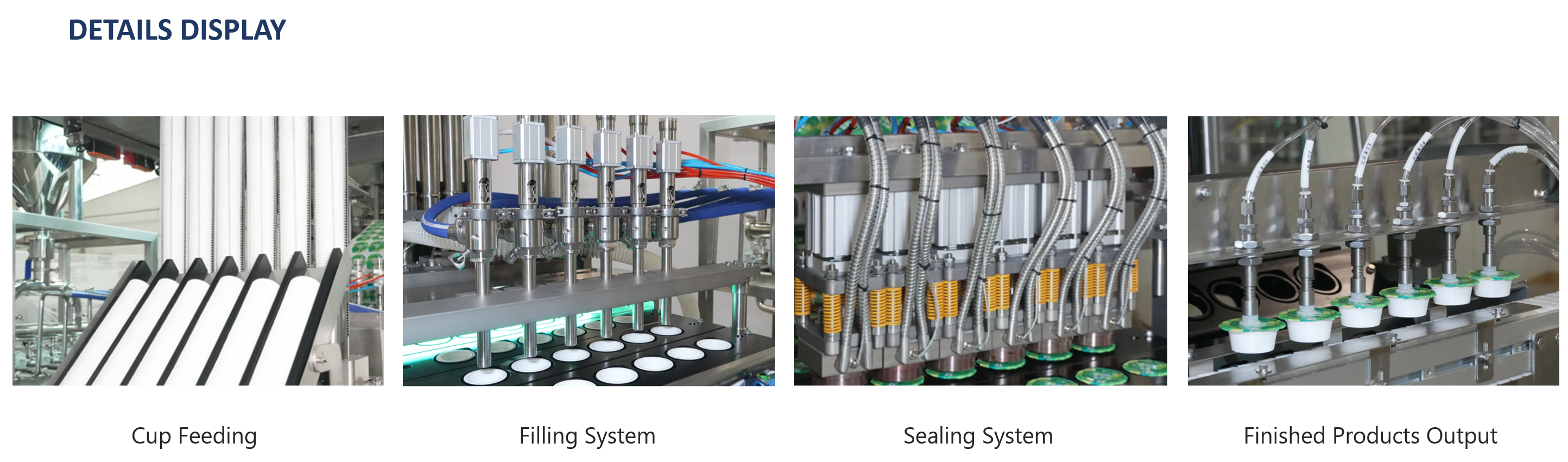

Vertical Cup Holder and cup loading system
•The extended cup storage compartment allows for one-time cup filling and can operate for at least 20 minutes.
•The cup guiding device enables easy addition of cups by hand, with a user-friendly operation.
•The vacuum suction cup assists in the cup dropping process, making it more stable and accurate.
Cup Detection and Cleaning
•Detect whether there is a cup or not through photoelectricity. No cup means no filling.
•The ion wind sweeps the empty cup, effectively preventing static electricity from adhering, and at the same time, it uses vacuum to remove dust and other foreign substances.
•Strong ultraviolet irradiation further enhances the cleanliness level.
Filling and Cleaning System
> Fully sanitary structure design (Food / Pharmaceutical Grade) ;
•The liquid-contact parts of the entire machine are made of SUS304/SUS316L stainless steel.
•The inner surface is polished with a mirror finish, reducing the risk of residue and wall attachment.
•Arc-shaped transition design to avoid accumulation of materials in dead corners
•Quick-install clamp structure, easy to assemble and disassemble, reducing pollution risks.
> Stable and precise filling system
•Multi-head synchronous control, HMI touch control, servo independent adjustment, drive piston precise quantitative control.
•The filling error can be controlled within ±1% (depending on the properties of the material)
• Anti-drip and anti-leakage structure design, reducing wire drawing and splashing
> Spray ball CIP cleaning system;
•Internal circulation cleaning (Full CIP Loop) ;The cleaning solution circulates within the system, covering storage tanks, pipelines, distributors, and filling heads. It is suitable for high-standard food products or continuous production lines.
•Quick pulse cleaning (Pulse Cleaning); By using pulse spraying to enhance the flushing force, it effectively removes sticky residues and significantly shortens the cleaning time.
> Fluid stable conveying system;
•Sanitary hose connection.
•Streamlined flow path, reduction of pressure fluctuations.
•Pressure equalization distribution structure, ensuring consistency for multiple heads.
Roll Film Cutting and Sealing System
> Horizontal retractable film mechanism
•By optimizing the design of the film winding path, the film roll can be unfolded more smoothly and with more stable tension;
•This effectively improves the utilization rate of the film roll, reducing waste of excess material and packaging materials.
> Cursor recognition + servo synchronous control
•The photoelectric sensor real-time identifies the printing reference mark;
•The servo motor drives the film roll to run at a constant pitch, ensuring that the distance traveled each time is precisely consistent;
•The positioning accuracy of the printing surface is high, ensuring that the pattern is always centered at the sealing position.
> High-precision cutting tool assembly
•The cutting tool is made of high-strength, wear-resistant special steel, which is precisely processed and undergoes dynamic balancing treatment;
•This ensures that the cutting edge of the film is neat, the sealing process is synchronized, and the sealing accuracy and appearance are improved.
Integrated design of cutting and sealing
•Combine the cutting and sealing operations within the same working cycle;
•Through precise mechanical coordination and temperature control system;
•Ensure a tight, flat and wrinkle-free seal.
> Optimized storage and deployment space
•The new film replacement and waste film collection space is ample, facilitating operation;
Second Heat Sealing System
•Sealing pads able to seal every type of heat-sealing foil. Easy to change and clean
•Sealing temperature be controlled by thermocouple
•Sealing pads every area temperature is same
•because of our designed elec-heating technology, in this case, sealing effect been improved.
•All sealing parameters are adjustable (time-pressure-temperature)
•Fast removal system for easy cleaning, maintenance and changeover
Capsule Output & Overturning System
•Catching the capsules and placement on the overturning arm
•Rotating the arm and place the capsules on an exterior conveyor
•Stainless Steel frame conveyor with plastic belt
•The Pick & Place system will pick up the finished capsules and drop the capsules into this overturn system to make the capsules bottom facing downward.
Date coding and inspection
•Ultraviolet laser marking machine; Cold processing principle: No scorching, no deformation The markings are clearer and more detailed. More friendly to thin-walled PP; No consumables, long-term costs are controllable; More environmentally friendly, with dust recovery included
•Visual inspection
Box Packing
•Organize the materials in an orderly manner
•Robot automatic box-filling
•Spray glue and close the box
Can be customized according to the shape of the box.
The package of finished products reference. This one can be achieved by SUNYI's top loading carton packaging.
