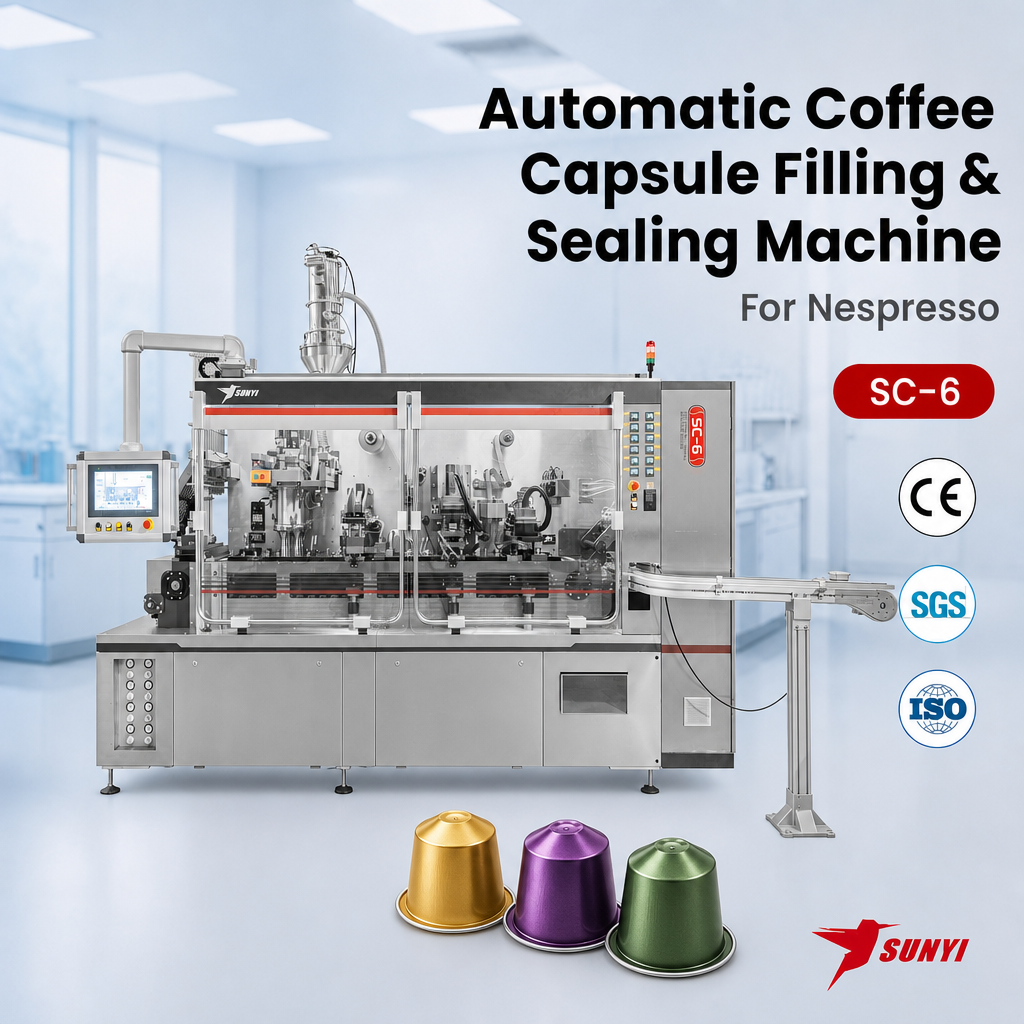

Coffee Capsule Filling Sealing Machine Six Lane 300-360 Capsules/Min Quick Mold Change Nitrogen Flush Factory

You are here: Home » Machine » Cups Filling Sealing Machine » Coffee & Tea Filling Machine » Coffee Capsule Filling Sealing Machine Six Lane 300-360 Capsules/Min Quick Mold Change Nitrogen Flush Factory

Coffee Capsule Filling Sealing Machine Six Lane 300-360 Capsules/Min Quick Mold Change Nitrogen Flush Factory

SC-6 Six Lane Coffee Capsule Sealing Machine 300-360 Capsules/Min Servo Auger Nitrogen Flush Manufacturer

Coffee Capsule Filling Sealing Machine Six Lane 300-360 Capsules/Min Quick Mold Change Nitrogen Flush Factory

Model: SC-6
Production Capacity: 300–360 capsules/min
Lanes: Six-lane continuous production
Filling System: Servo-driven auger filling for ground coffee, tea powder, probiotics and soluble powders
Filling Weight: 5–5.5 g
Filling Accuracy: ±5% based on average weight data from 10,000 samples
Nitrogen Flushing: 65–80 Nm³/h for freshness protection
Construction: Food-grade SUS304 stainless steel
Feeding System: Vacuum feeder with horizontal screw feeding
Changeover: Quick mold replacement for different capsule formats
Maintenance: Pull-out stations and full-visual side-opening safety doors
Air Supply: 0.6–0.8 MPa compressed air, 0.9 m³/min consumption
Standards: CE, SGS and ISO9001
Warranty: 5 years
Application: Coffee capsules, tea powder, probiotics and soluble powder packaging
Sales Model: Direct manufacturer supply with customized packaging solutions and long-term technical support

Quantity:
Availability:





Inquire Add to Basket

Model:
SC-6
Brand:
SUNYI

Highlights at a glance

Stable Six-Lane Production for Continuous Output: SC-6 uses a cam mechanism structure for stable, high-speed operation, delivering 300-360 coffee capsules/min. Six lanes increase production efficiency while the integrated design helps reduce manual intervention and keep the filling and sealing process running continuously.
Servo Auger Filling for Controlled Dosing: A servo motor drives the auger screw for precise powder filling, supporting a 5-5.5g filling weight and ±5% filling accuracy based on the average weight of 10,000 data. The system is suitable for ground coffee powder, tea powder, probiotics and soluble powder, helping maintain consistent product dosing.
Nitrogen Flushing & Food-Grade Construction: Nitrogen flushing is integrated into the capsule packaging process, with nitrogen consumption of 65-80 Nm³/h. The machine body and food-contact parts are made of food-grade SUS304 stainless steel, supporting hygienic production for coffee and other powder products. Manufacture standards include CE, SGS and ISO9001.
Quick Maintenance with Full-Visual Safety Design: The Ferrari-style side-opening safety door provides full visual observation and convenient access for maintenance. Every station can be pulled out for easier servicing, while quick mold replacement helps shorten changeover work when switching capsule formats. Strong and weak currents are routed separately for stable electrical signal transmission without interference.
Integrated Design with Long-Term Service Support: The six-lane filling and sealing machine combines feeding, servo auger filling, nitrogen flushing and sealing in one integrated system with a compact footprint. Vacuum feeder + horizontal screw feeding supports continuous powder supply. Compressed air pressure is 0.6-0.8 MPa, consumption is 0.9 m³/min, and the machine is backed by a 5-year warranty.

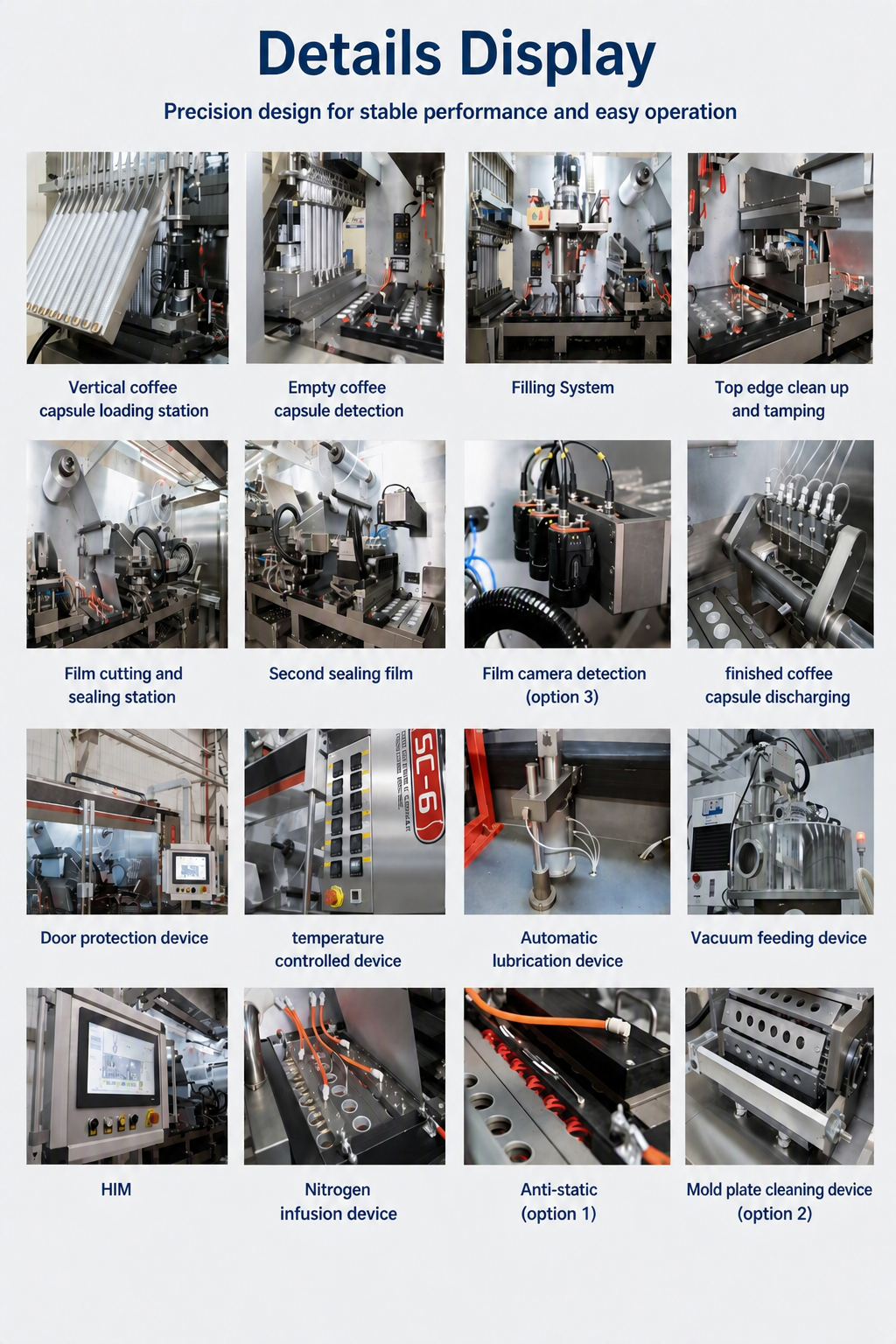

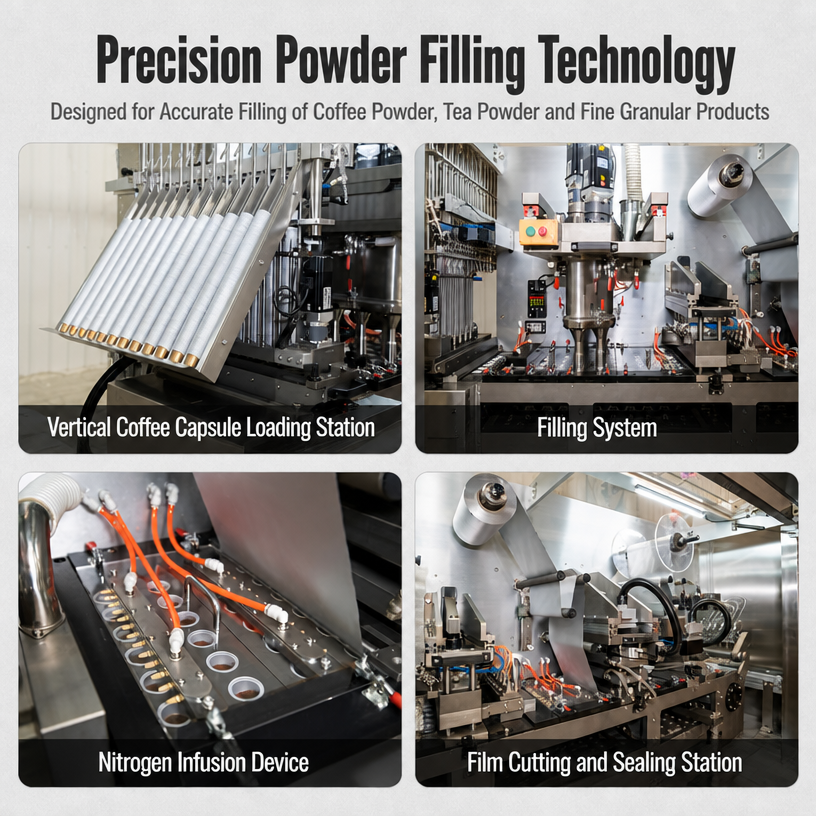

Detail shot

Technical parameters

Feature/Specification	Details
Model	SC-6
Power Supply	3P, AC380V/220V, 50/60Hz
Production Capacity	300-360 Cups/min
Filling Weight	0-50 g
Filling Accuracy	±1%-5%
Nitrogen Consumption	65-80 Nm³/h
Compressed Air Consumption	0.9 m³/min
Compressed air pressure (bar)	0.6Mpa-0.8Mpa
Filling Methods	Volumetric Dosage / Multi-heads Weigher
Mechanic	The main body of the machine and the parts in contact with food are all 304 stainless steel and the rest are made of iron, aluminum, plastic, etc.
Manufacture Standard	CE,SGS,ISO9001
Filling Material	Ground Coffee Powder, Tea Powder, Probiotics, Soluble Powder,etc.
Sealing Material	Sealing Foil in Roll, Precut/die-cut Foil Lids, Paper Film, etc.
Machine Weight	3500Kg
Machine Dimension	5300mm(L)1760mm(W)3230mm(H) (Based on the real size)

Scene image

Company Overview

SUNYI - Intelligent Packaging Solution Provider

Founded in 2011 and headquartered in Kunshan, Jiangsu, China, Sunyi Intelligent Technology Group Co., Ltd. specializes in the R&D, manufacturing, and service of intelligent packaging equipment and automated packaging solutions.

With over 10 years of industry experience, SUNYI provides complete packaging solutions for coffee, tea, dairy products, sauces, nutritional supplements, solid beverages, daily chemicals, pet food, medical products, and other FMCG industries. Our products include automatic filling and sealing machines, coffee capsule filling machines, liquid filling machines, powder filling machines, cartoning machines, and turnkey packaging lines.

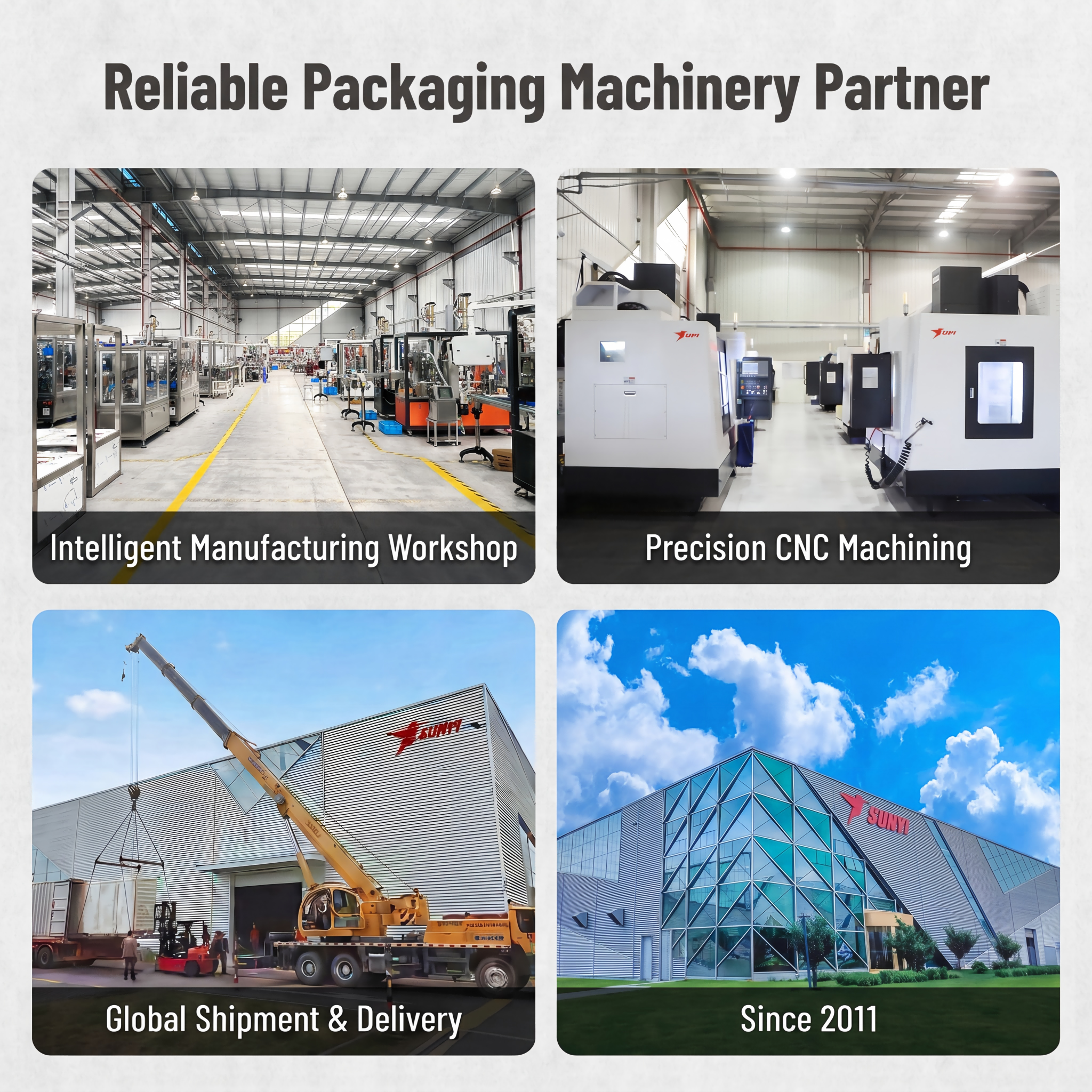

Manufacturing Capability

SUNYI operates a 4,200㎡ manufacturing facility with 70 employees, including professional mechanical, electrical, and software engineers. We deliver customized solutions from single machines to complete automatic packaging lines.

Quality Control

SUNYI implements strict quality management based on ISO9001 standards, covering design, component inspection, assembly, testing, and FAT before shipment. Our equipment complies with international requirements with CE certification and Germany EPR compliance, ensuring stable performance, accurate filling, and reliable sealing.

R&D Innovation

Supported by a 30-member R&D team and 130+ patents, SUNYI continuously develops advanced packaging technologies integrating servo control, digital systems, robotics, and automation solutions.

With strong expertise in single-serve packaging, we provide professional coffee capsule filling and sealing solutions for Nespresso, K-Cup, Lavazza, Dolce Gusto, Caffitaly, and other capsule applications.

Global Service

SUNYI has supplied intelligent packaging solutions to customers in 80+ countries and regions. We provide customized design, installation support, remote debugging, technical training, and overseas after-sales service.

Competitive Advantages

Customization Capabilities

Certificates

Production workflow

Trade show participation & Customer Visits

Packaging & shipping specifications

What is the delivery time of the machine?

After receiving the client's deposit, capsule samples, and film materials, we will complete the machine production within 50 working days.

What are the payment terms?

The payment terms are: - 30% deposit of the total purchase order amount is required to start machine production. - After the machine is completed, we will invite the client to test and check the machine in our factory. - After successful testing and approval, the client shall pay the remaining 70% balance before shipment.

How do you guarantee machine quality?

We have an experienced technical team covering automation control, mechanical design, packaging technology, and intelligent measurement. Our technical staff accounts for 60% of the total employees, including two senior engineers with more than 15 years of experience in this field. We also follow strict quality control procedures, including: - Pre-production sample testing before mass production. - Final inspection before shipment.

What are your advantages compared with other suppliers?

Our advantages include: - More than 15 years of experience in filling and sealing equipment. - Direct manufacturing capability. - Professional engineering department. - Application of world-famous components. - Good quality with competitive price. - Professional after-sales service. - Strong innovation and creative capabilities.

What after-sales service do you provide?

We provide: - Machine testing and training at our factory. - Operation manuals and installation & operation videos. - 24-hour online technical support. If overseas engineer service is required, the client shall cover: - Engineer service fee: USD 300/day. - Round-trip flight tickets. - Accommodation expenses. For spare parts damaged under normal use conditions, we can provide free spare parts for replacement.

How do you pack and ship the machine?

The machine is packed using a standard export wooden box to help prevent corrosion and damage during transportation. The shipment port is Shanghai Port, China.

What products and solutions can you provide?

We provide: - Filling and Sealing Production Lines - Full Packaging Production Lines - Production Line Accessories

Why should customers choose SUNYI?

SUNYI is a direct manufacturer with extensive experience in filling and sealing equipment. We provide customers with: - Competitive prices. - Professional technical support. - Customized engineering solutions. - Reliable after-sales service. - Continuous innovation and development capabilities.
