Dairy & Frozen Food Industry Ice Cream Cup Filling Sealing Machine Precise Servo Control Fast Delivery

Yogurt Cup Filling Sealing Machine Servo Precision Filling System CIP Cleaning HEPA Hygienic Design for Dairy Manufacturer

270 CPM 1-350g Cup Filling Sealing Machine for Vegetable Paste with Ceramic Pump CE SGS Stainless Steel Mfg

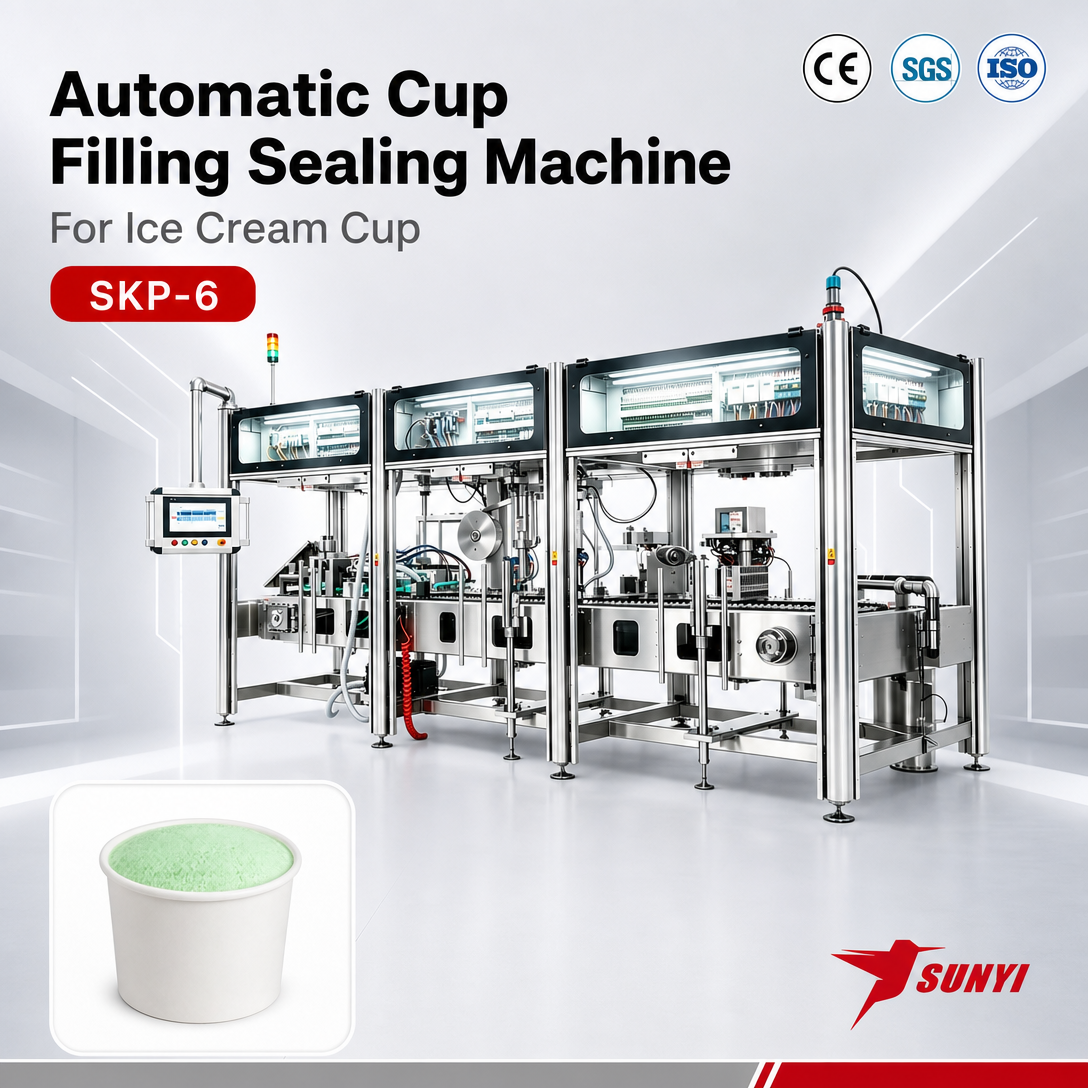

Dairy & Frozen Food Industry Ice Cream Cup Filling Sealing Machine Precise Servo Control Fast Delivery

Material: AISI 316L stainless steel product-contact parts and AISI 304 stainless steel frame
Filling System: Servo-driven piston filling with adjustable volume and speed
Cleaning: Automatic CIP cleaning for hopper, pipes, valves, pistons and nozzles
Air Protection: Optional HEPA H14 filtration and positive-pressure laminar airflow
Control System: Siemens PLC/HMI with recipe management and automatic inspection
Applications: Yogurt, dairy products and other high-viscosity food products
Packaging Format: Customizable yogurt cups and lids
Production Features: No cup-no fill, no lid-no seal and defective cup rejection
Sales Model: Direct manufacturer supply, customized solutions and turnkey production line integration
Service: FAT testing, technical support and professional after-sales service

Quantity:
Availability:





Inquire Add to Basket

Model:
SKP-6
Brand:
SUNYI

Detail shot

Scene image

Highlights at a glance

Six-Lane Packaging For Viscous Foods: SKP-6 portions and seals yogurt, butter, peanut butter, chocolate spread, hummus, honey, mayonnaise, ketchup, sauces, cream and fruit puree in preformed cups. Its six-lane design supports continuous single-serve packaging for high-viscosity and semi-viscous foods, reducing manual portioning and supporting consistent retail, dessert and food-service packs.
240-270 Cups/Min With 1-350g Filling Range: The parameter table specifies 240-270 cups/min and a 1-350g filling weight range. This gives producers a clear basis for high-volume portion cups across spreads, dairy, sauces and dips. The metering pump or servo auger system supports controlled dosing, with listed filling accuracy of ±1%-5%.
Independent Ceramic Rotary Valve Pump: The filling system uses a ceramic rotary valve pump with cutting-off to manage viscous products and reduce dripping or residue. Servo dosing, multi-head synchronous control and pressure-equalized distribution support consistent filling across lanes, including products containing small pieces.
Integrated Film Sealing And Inspection: The machine supports pre-cut lids or roll film and combines cursor recognition, servo film control, precision cutting and heat sealing. Adjustable time, pressure and temperature, thermocouple control and a second sealing station help create flat, tight seals, while date coding and visual inspection organize finished-cup quality control.
Sanitary SUS304/SUS316L Design With CIP: Food-contact parts use SUS304/SUS316L stainless steel, with mirror-polished surfaces, arc transitions, quick-install clamps and a full CIP loop for tanks, pipelines and filling heads. The specification lists 15-20 Nm³/h nitrogen, 0.6-0.8 MPa air pressure, 0.9 m³/min air, 3P AC380V/220V power and 3,500kg weight. CE, SGS and ISO 9001 are listed.

Feature/Specification	Details
Model	SKP-6
Power Supply	3P, AC380V/220V, 50/60Hz
Production Capacity	300-360 Cups/min
Filling Weight	0-50 g
Filling Accuracy	±1%-5%
Nitrogen Consumption	65-80 Nm³/h
Compressed Air Consumption	0.9 m³/min
Filling Method	Metering Pump / Servo Auger Filling System
Machine Weight	4000 Kg

Company Overview

SUNYI - Intelligent Packaging Solution Provider

Founded in 2011 and headquartered in Kunshan, Jiangsu, China, Sunyi Intelligent Technology Group Co., Ltd. specializes in the R&D, manufacturing, and service of intelligent packaging equipment and automated packaging solutions.

With over 10 years of industry experience, SUNYI provides complete packaging solutions for coffee, tea, dairy products, sauces, nutritional supplements, solid beverages, daily chemicals, pet food, medical products, and other FMCG industries. Our products include automatic filling and sealing machines, coffee capsule filling machines, liquid filling machines, powder filling machines, cartoning machines, and turnkey packaging lines.

Manufacturing Capability

SUNYI operates a 4,200㎡ manufacturing facility with 70 employees, including professional mechanical, electrical, and software engineers. We deliver customized solutions from single machines to complete automatic packaging lines.

Quality Control

SUNYI implements strict quality management based on ISO9001 standards, covering design, component inspection, assembly, testing, and FAT before shipment. Our equipment complies with international requirements with CE certification and Germany EPR compliance, ensuring stable performance, accurate filling, and reliable sealing.

R&D Innovation

Supported by a 30-member R&D team and 130+ patents, SUNYI continuously develops advanced packaging technologies integrating servo control, digital systems, robotics, and automation solutions.

With strong expertise in single-serve packaging, we provide professional coffee capsule filling and sealing solutions for Nespresso, K-Cup, Lavazza, Dolce Gusto, Caffitaly, and other capsule applications.

Global Service

SUNYI has supplied intelligent packaging solutions to customers in 80+ countries and regions. We provide customized design, installation support, remote debugging, technical training, and overseas after-sales service.

Competitive Advantages

Customization Capabilities

Certificates

Trade Show Participation & Customer Visits

Packaging & Shipping Specifications

Production Workflow

What is the delivery time of the machine?

After receiving the client's deposit, capsule samples, and film materials, we will complete the machine production within 50 working days.

What are the payment terms?

The payment terms are: - 30% deposit of the total purchase order amount is required to start machine production. - After the machine is completed, we will invite the client to test and check the machine in our factory. - After successful testing and approval, the client shall pay the remaining 70% balance before shipment.

How do you guarantee machine quality?

We have an experienced technical team covering automation control, mechanical design, packaging technology, and intelligent measurement. Our technical staff accounts for 60% of the total employees, including two senior engineers with more than 15 years of experience in this field. We also follow strict quality control procedures, including: - Pre-production sample testing before mass production. - Final inspection before shipment.

What are your advantages compared with other suppliers?

Our advantages include: - More than 15 years of experience in filling and sealing equipment. - Direct manufacturing capability. - Professional engineering department. - Application of world-famous components. - Good quality with competitive price. - Professional after-sales service. - Strong innovation and creative capabilities.

What after-sales service do you provide?

We provide: - Machine testing and training at our factory. - Operation manuals and installation & operation videos. - 24-hour online technical support. If overseas engineer service is required, the client shall cover: - Engineer service fee: USD 300/day. - Round-trip flight tickets. - Accommodation expenses. For spare parts damaged under normal use conditions, we can provide free spare parts for replacement.

How do you pack and ship the machine?

The machine is packed using a standard export wooden box to help prevent corrosion and damage during transportation. The shipment port is Shanghai Port, China.

What products and solutions can you provide?

We provide: - Filling and Sealing Production Lines - Full Packaging Production Lines - Production Line Accessories

Why should customers choose SUNYI?

SUNYI is a direct manufacturer with extensive experience in filling and sealing equipment. We provide customers with: - Competitive prices. - Professional technical support. - Customized engineering solutions. - Reliable after-sales service. - Continuous innovation and development capabilities.
