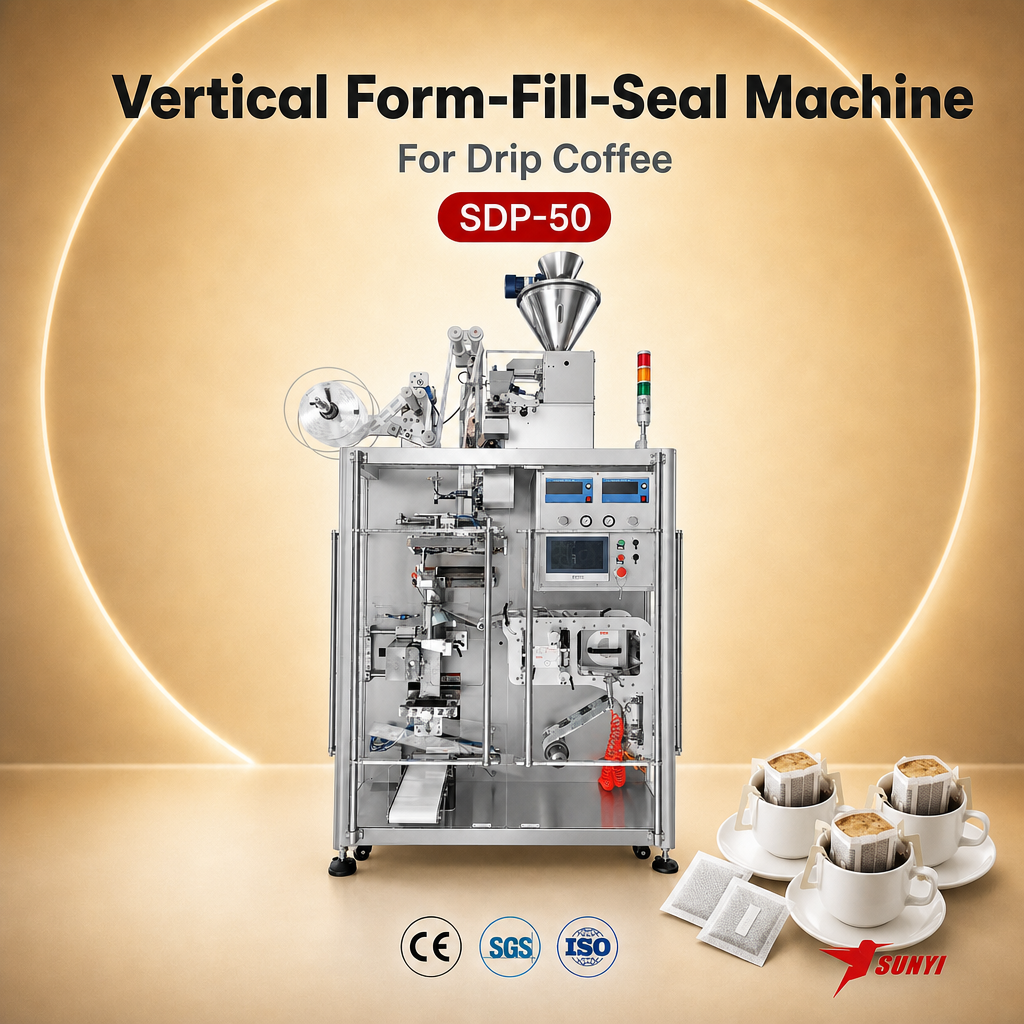

SDP-50
SUNYI
60 Bags/Min Stable High-Speed Output - SDP-50 uses servo synchronous control to maintain continuous automatic production at up to 60 bags/min, making it suitable for medium and large-scale coffee roasteries, tea factories and food processing plants. The automated workflow reduces manual handling and supports higher packaging efficiency for single-serve drip coffee and tea products.
Nitrogen MAP Packaging with Residual Oxygen <1% - The integrated food-grade nitrogen flushing system displaces air inside the outer pouch and controls residual oxygen to below 1%, helping protect coffee and tea aroma from oxidation. The system is designed to support freshness protection and a shelf life of up to 12 months for properly packaged products.
Dual Sealing for Reliable Hermetic Packaging - The inner non-woven filter bag uses ultrasonic sealing without glue for a neat sealed edge and reduced powder leakage, while the composite aluminum foil outer pouch uses constant-temperature heat sealing for a strong barrier package. This dual sealing structure supports stable packaging of hanging ear drip coffee bags, tagged tea bags and herbal filter tea bags.
Automatic TTO Coding for Flexible Traceability - The thermal transfer overprint system supports automatic QR code data updates and printing of batch numbers, production dates, expiration dates and traceability codes. Combined with the integrated packaging process, it helps manufacturers manage product identification and traceability more efficiently for coffee and tea production.
Automatic Cartoning Linkage & Food-Grade Construction - A finished-product discharge conveyor and reserved communication interface allow direct connection with an automatic cartoning machine, enabling a complete bag-making, filling, sealing, coding, conveying and cartoning workflow. The main frame uses SUS304 food-grade stainless steel, while the machine supports CE and GMP food hygiene standards.
Feature/Specification | Details |
Model | SDP-50 |
Power Supply | 3P, AC380V/220V, 50/60Hz |
Production Capacity | 50-60 Bags/min |
Filling Weight | 8-12 g |
Filling Accuracy | ±0.2 g(AVG. W.t. of 10,000 data) |
Inner drip bag Size | 90 mm(W)*75 mm(L) |
Outer envelop Size | 100 mm(W)*120 mm(L) |
Nitrogen Flushing | ≥99% |
Filling Methods | Measuring Cup/Servo Auger Filling System |
Sealing Methods | Full ultrasonic sealing for inner filter & Heat sealing for envelope |
Feeding Methods | Vacuum Feeder with Storage Tank |
