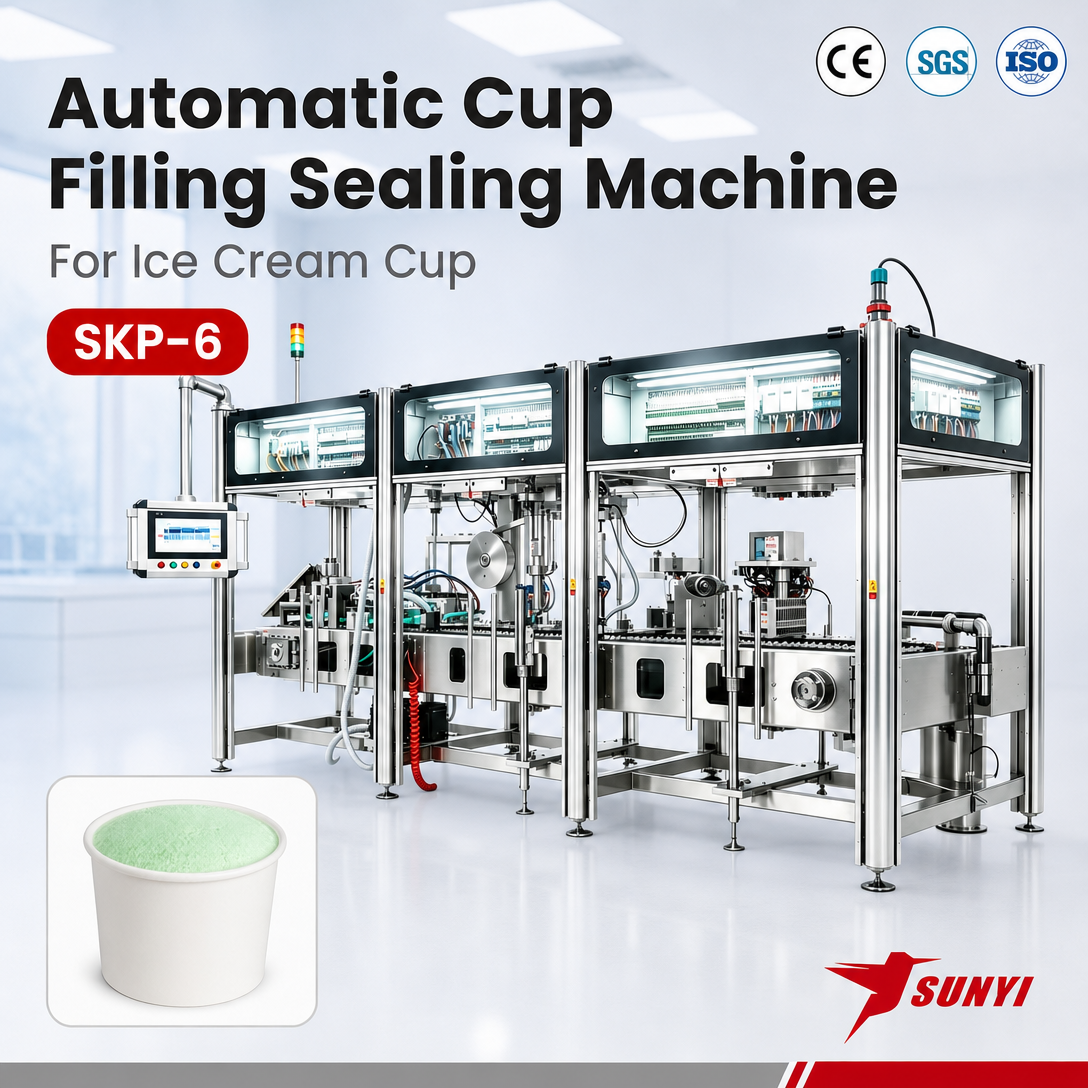

No Leakage High Speed Ice Cream Cup Filling Sealing Machine with Ceramic Rotary Pump and UV Coding

You are here: Home » Machine » Cups Filling Sealing Machine » Condiments Filling Machine » No Leakage High Speed Ice Cream Cup Filling Sealing Machine with Ceramic Rotary Pump and UV Coding

No Leakage High Speed Ice Cream Cup Filling Sealing Machine with Ceramic Rotary Pump and UV Coding

Yogurt Cup Filling Sealing Machine Servo Precision Filling System CIP Cleaning HEPA Hygienic Design for Dairy Manufacturer

270 CPM 1-350g Cup Filling Sealing Machine for Vegetable Paste with Ceramic Pump CE SGS Stainless Steel Mfg

No Leakage High Speed Ice Cream Cup Filling Sealing Machine with Ceramic Rotary Pump and UV Coding

Material: AISI 316L stainless steel product-contact parts and AISI 304 stainless steel frame
Filling System: Servo-driven piston filling with adjustable volume and speed
Cleaning: Automatic CIP cleaning for hopper, pipes, valves, pistons and nozzles
Air Protection: Optional HEPA H14 filtration and positive-pressure laminar airflow
Control System: Siemens PLC/HMI with recipe management and automatic inspection
Applications: Yogurt, dairy products and other high-viscosity food products
Packaging Format: Customizable yogurt cups and lids
Production Features: No cup-no fill, no lid-no seal and defective cup rejection
Sales Model: Direct manufacturer supply, customized solutions and turnkey production line integration
Service: FAT testing, technical support and professional after-sales service

Quantity:
Availability:





Inquire Add to Basket

Model:
SKP-6
Brand:
SUNYI

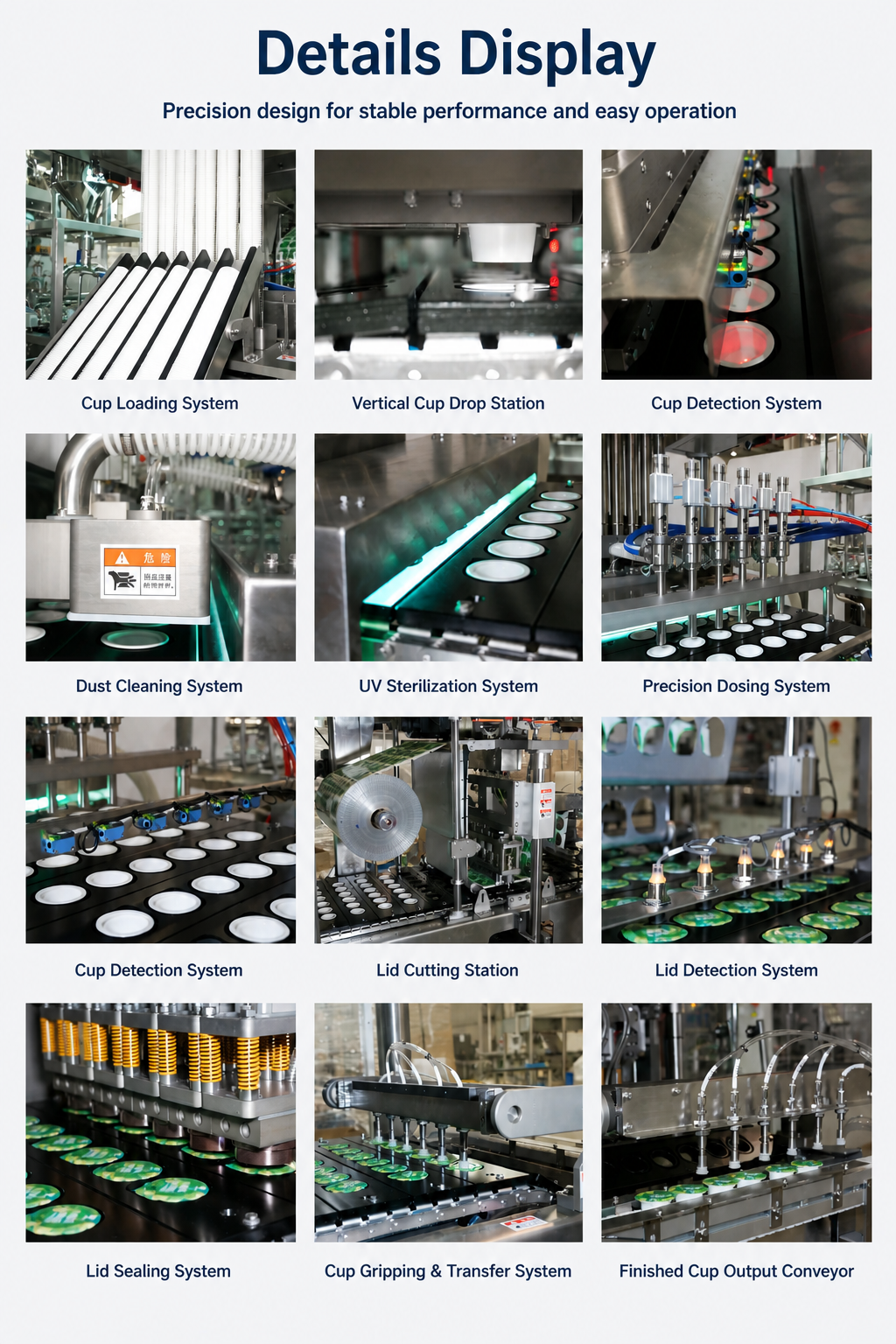

Detail shot

Scene image

Highlights at a glance

Hygienic Yogurt Cup Filling Sealing Machine for Safe Dairy Production: Designed for yogurt, dairy products and other high-viscosity foods, this automatic yogurt cup filling sealing machine adopts AISI 316L stainless steel product-contact parts and AISI 304 stainless steel frame, providing a sanitary and durable solution for food-grade packaging. The hygienic filling structure helps reduce contamination risks and ensures stable dairy production.

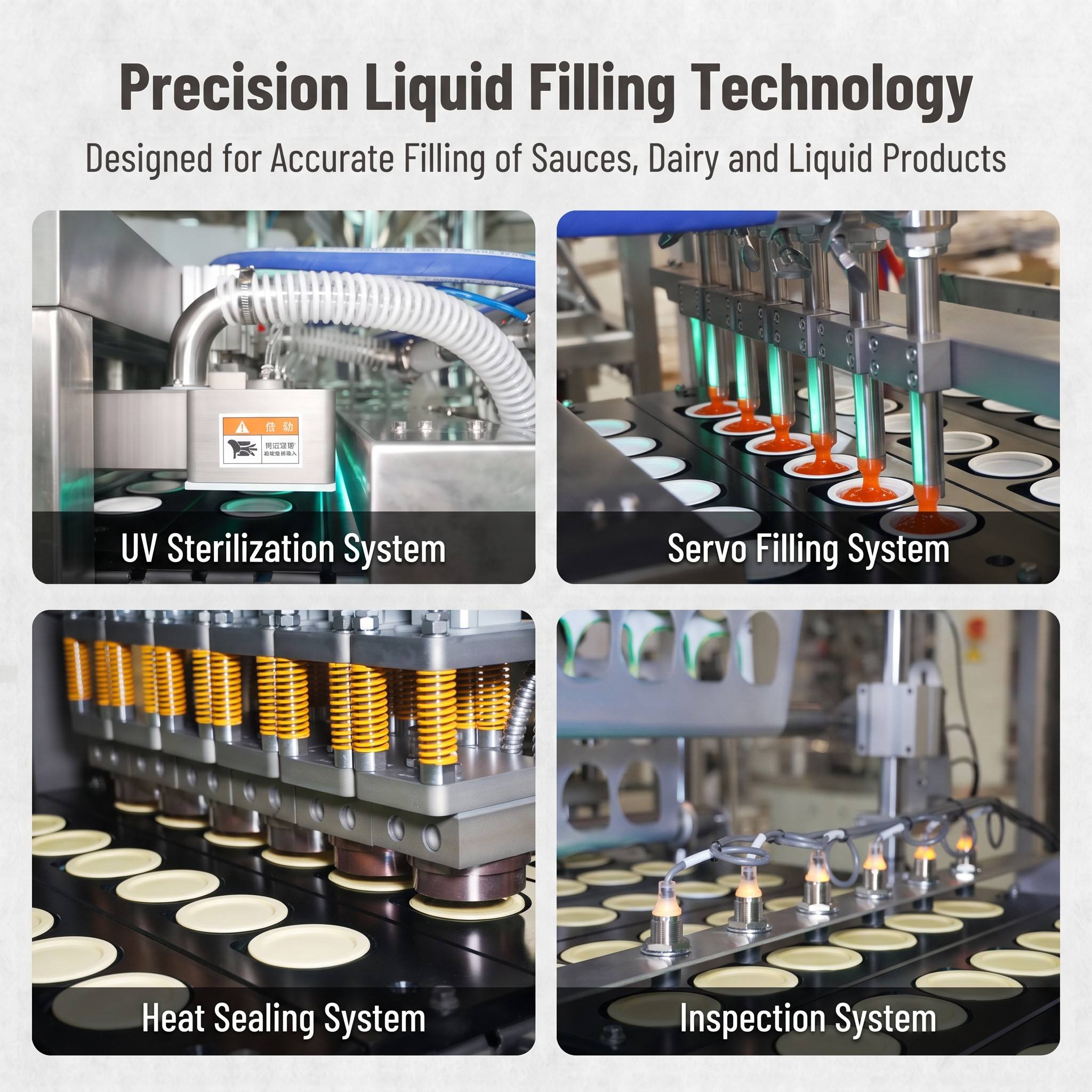

Servo Precision Filling System Ensures Accurate Yogurt Dosing: Equipped with an advanced servo filling system and servo-driven piston technology, the machine delivers precise filling performance for customized yogurt cups. Filling volume, speed and motion parameters can be adjusted and saved through the recipe management system, improving accuracy and reducing product waste.
Automatic CIP Cleaning System Improves Production Hygiene: The integrated CIP cleaning system supports automatic cleaning of the product circuit, including hopper, pipes, valves, filling pistons and nozzles. PLC-controlled cleaning recipes simplify operation, reduce manual cleaning time and maintain high hygiene standards for continuous dairy packaging machine operation.
HEPA H14 Laminar Airflow Creates Clean Filling Environment: The machine can be equipped with HEPA H14 filtration and positive-pressure laminar airflow protection, covering the critical filling and sealing area. This advanced hygienic filling machine design minimizes airborne contamination and provides safer packaging conditions for yogurt and dairy products.
Intelligent Control System Ensures Reliable Automatic Production: Featuring Siemens PLC/HMI control, intelligent recipe management and automatic inspection systems. Functions including cup detection system, no cup-no fill, lid detection system, no lid-no seal and defective cup rejection improve packaging quality. Customized dairy production line solutions, FAT testing and professional service are available for global customers.

Feature/Specification	Details
Model	SKP-6
Power Supply	3P, AC380V/220V, 50/60Hz
Production Capacity	300-360 Cups/min
Filling Weight	0-50 g
Filling Accuracy	±1%-5%
Nitrogen Consumption	65-80 Nm³/h
Compressed Air Consumption	0.9 m³/min
Filling Method	Metering Pump / Servo Auger Filling System
Machine Weight	4000 Kg

Company Overview

SUNYI - Intelligent Packaging Solution Provider

Founded in 2011 and headquartered in Kunshan, Jiangsu, China, Sunyi Intelligent Technology Group Co., Ltd. specializes in the R&D, manufacturing, and service of intelligent packaging equipment and automated packaging solutions.

With over 10 years of industry experience, SUNYI provides complete packaging solutions for coffee, tea, dairy products, sauces, nutritional supplements, solid beverages, daily chemicals, pet food, medical products, and other FMCG industries. Our products include automatic filling and sealing machines, coffee capsule filling machines, liquid filling machines, powder filling machines, cartoning machines, and turnkey packaging lines.

Manufacturing Capability

SUNYI operates a 4,200㎡ manufacturing facility with 70 employees, including professional mechanical, electrical, and software engineers. We deliver customized solutions from single machines to complete automatic packaging lines.

Quality Control

SUNYI implements strict quality management based on ISO9001 standards, covering design, component inspection, assembly, testing, and FAT before shipment. Our equipment complies with international requirements with CE certification and Germany EPR compliance, ensuring stable performance, accurate filling, and reliable sealing.

R&D Innovation

Supported by a 30-member R&D team and 130+ patents, SUNYI continuously develops advanced packaging technologies integrating servo control, digital systems, robotics, and automation solutions.

With strong expertise in single-serve packaging, we provide professional coffee capsule filling and sealing solutions for Nespresso, K-Cup, Lavazza, Dolce Gusto, Caffitaly, and other capsule applications.

Global Service

SUNYI has supplied intelligent packaging solutions to customers in 80+ countries and regions. We provide customized design, installation support, remote debugging, technical training, and overseas after-sales service.

Competitive Advantages

Customization Capabilities

Certificates

Trade Show Participation & Customer Visits

Packaging & Shipping Specifications

Production Workflow

What is the delivery time of the machine?

After receiving the client's deposit, capsule samples, and film materials, we will complete the machine production within 50 working days.

What are the payment terms?

The payment terms are: - 30% deposit of the total purchase order amount is required to start machine production. - After the machine is completed, we will invite the client to test and check the machine in our factory. - After successful testing and approval, the client shall pay the remaining 70% balance before shipment.

How do you guarantee machine quality?

We have an experienced technical team covering automation control, mechanical design, packaging technology, and intelligent measurement. Our technical staff accounts for 60% of the total employees, including two senior engineers with more than 15 years of experience in this field. We also follow strict quality control procedures, including: - Pre-production sample testing before mass production. - Final inspection before shipment.

What are your advantages compared with other suppliers?

Our advantages include: - More than 15 years of experience in filling and sealing equipment. - Direct manufacturing capability. - Professional engineering department. - Application of world-famous components. - Good quality with competitive price. - Professional after-sales service. - Strong innovation and creative capabilities.

What after-sales service do you provide?

We provide: - Machine testing and training at our factory. - Operation manuals and installation & operation videos. - 24-hour online technical support. If overseas engineer service is required, the client shall cover: - Engineer service fee: USD 300/day. - Round-trip flight tickets. - Accommodation expenses. For spare parts damaged under normal use conditions, we can provide free spare parts for replacement.

How do you pack and ship the machine?

The machine is packed using a standard export wooden box to help prevent corrosion and damage during transportation. The shipment port is Shanghai Port, China.

What products and solutions can you provide?

We provide: - Filling and Sealing Production Lines - Full Packaging Production Lines - Production Line Accessories

Why should customers choose SUNYI?

SUNYI is a direct manufacturer with extensive experience in filling and sealing equipment. We provide customers with: - Competitive prices. - Professional technical support. - Customized engineering solutions. - Reliable after-sales service. - Continuous innovation and development capabilities.
