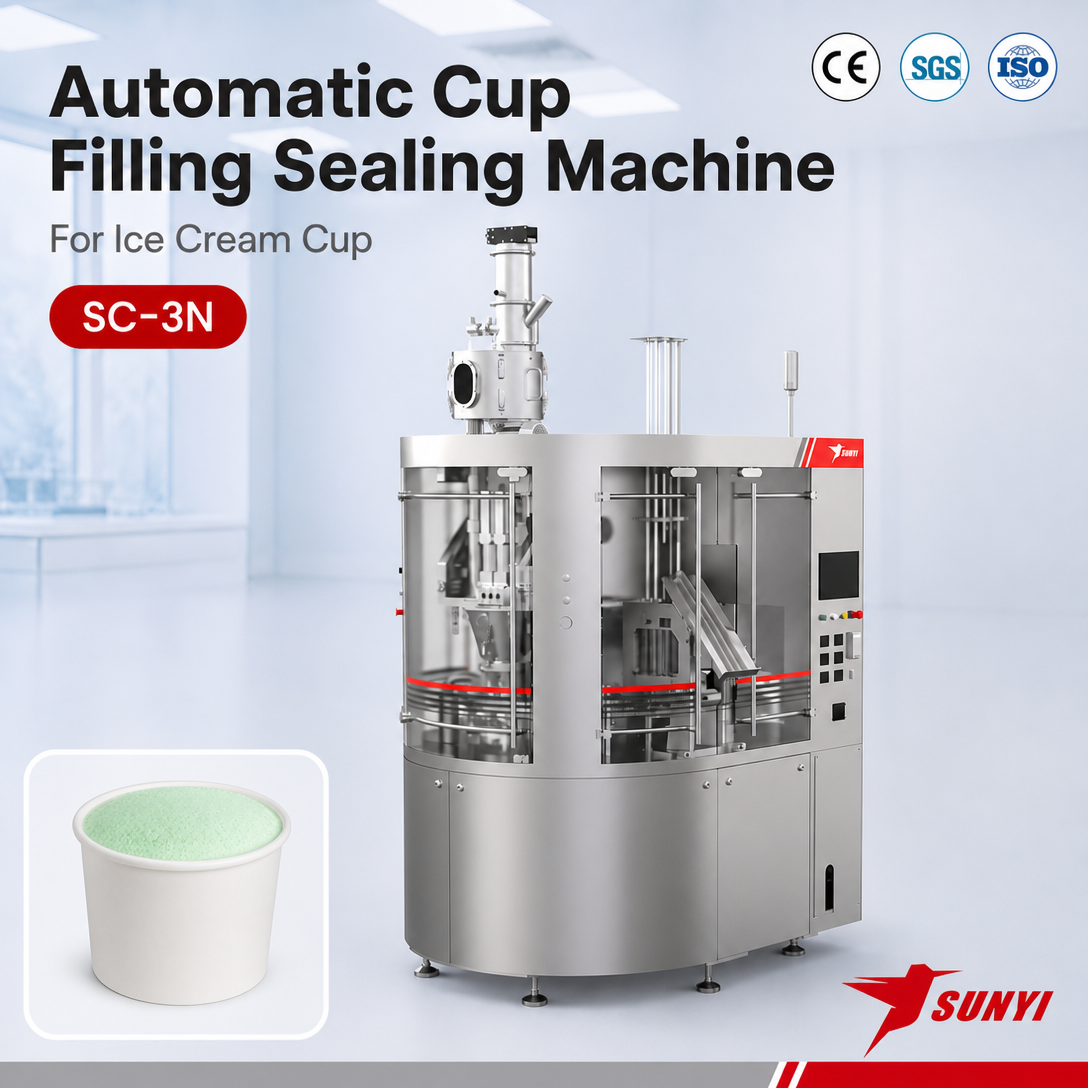

No Oxygen High Accuracy Ice Cream Cup Filling Sealing Machine with Nitrogen System and Rotary Design

Yogurt Cup Filling Sealing Machine Servo Precision Filling System CIP Cleaning HEPA Hygienic Design for Dairy Manufacturer

180 Cups/Min 0-50g Cup Filling Sealing Machine for Vegetable Paste with Nitrogen Flush CE SGS Manufacturer

No Oxygen High Accuracy Ice Cream Cup Filling Sealing Machine with Nitrogen System and Rotary Design

Model: SC-3N
Production Capacity: 120–180 cups/min
Filling Range: 0–50 g with ±1%–5% filling accuracy
Lanes: Three-lane rotary configuration with cam-driven operation
Compatible Products: Ketchup, mayonnaise, chili sauce, salad dressing, cheese sauce and other liquid or semi-liquid condiments
Filling System: Metering pump or servo auger for controlled portion dosing
Cup Handling: Automatic cup feeding with format-compatible changeover
Sealing: Adjustable heat sealing time, pressure and temperature with thermocouple control
Inspection: Foil detection, weight checking and automatic defective-cup rejection before sealing
Construction: Food-grade SUS304 stainless steel for product-contact parts
Maintenance: Pull-out stations, removable filling components and quick-change moulds
Control System: 10.5-inch Schneider HMI with Omron temperature monitoring
Cleaning: Index-table cleaning and removable components for easier sanitation
Nitrogen Consumption: 15–20 Nm³/h
Compressed Air: 0.6–0.8 MPa, 0.9 m³/min
Power Supply: AC380V/220V, 3-phase, 50/60Hz
Certifications: CE, SGS and ISO9001
Applications: Condiment packaging, portion cups, retail, takeaway and food-service packaging
Sales Model: Direct manufacturer supply with customized filling, sealing and complete packaging line solutions

Quantity:
Availability:





Inquire Add to Basket

Model:
SC-3N
Brand:
SUNYI

Detail shot

Scene image

Highlights at a glance

Three-Lane Rotary Automation For Single-Serve Condiments: SC-3N automatically fills and seals ketchup, mayonnaise, chili sauce, salad dressing, cheese sauce and other liquid or semi-liquid products. Automatic cup feeding, filling and foil sealing reduce manual handling, helping manufacturers produce consistent portion cups for retail, takeaway and food-service applications.
120-180 Cups/Min With 0-50g Dosing Range: The parameter table specifies 120-180 cups/min and a 0-50g filling weight range. This gives condiment producers a clear basis for high-volume portion packaging. The metering pump or servo auger system supports controlled dosing, while listed filling accuracy is ±1%-5%.
Sanitary SUS304 Construction And Quick Changeover: Food-contact parts use food-grade SUS304 stainless steel. Pull-out stations, removable filling components and quick-change moulds simplify cleaning, maintenance and format changeover, while the cam mechanism supports stable operation across cup formats and sauce recipes.
Controlled Sealing With Pre-Seal Inspection: Foil sensors identify missing lids, while weight checking and rejection remove defective cups before sealing. Adjustable sealing time, pressure and temperature, thermocouple control and fast-removal sealing support reliable closure across heat-sealing foils and improve finished-cup consistency.
Intelligent Operation And Documented Utilities: The specification lists 15-20 Nm³/h nitrogen consumption, 0.6-0.8 MPa air pressure, 0.9 m³/min air consumption and 3P AC380V/220V, 50/60Hz power. A 10.5-inch Schneider HMI, Omron temperature monitoring and index-table cleaning support operation and sanitation planning. CE, SGS and ISO 9001 are listed.

Feature/Specification	Details
Model	SC-3N
Power Supply	3P, AC380V/220V, 50/60Hz
Production Capacity	120-180 Cups/min
Filling Weight	0-50 g
Filling Accuracy	±1%-5%
Nitrogen Consumption	15-20 Nm³/h
Compressed Air Pressure	0.6-0.8 Mpa
Compressed Air Consumption	0.9 m³/min
Filling Method	Metering Pump / Servo Auger Filling System
Machine Weight	3500 Kg
