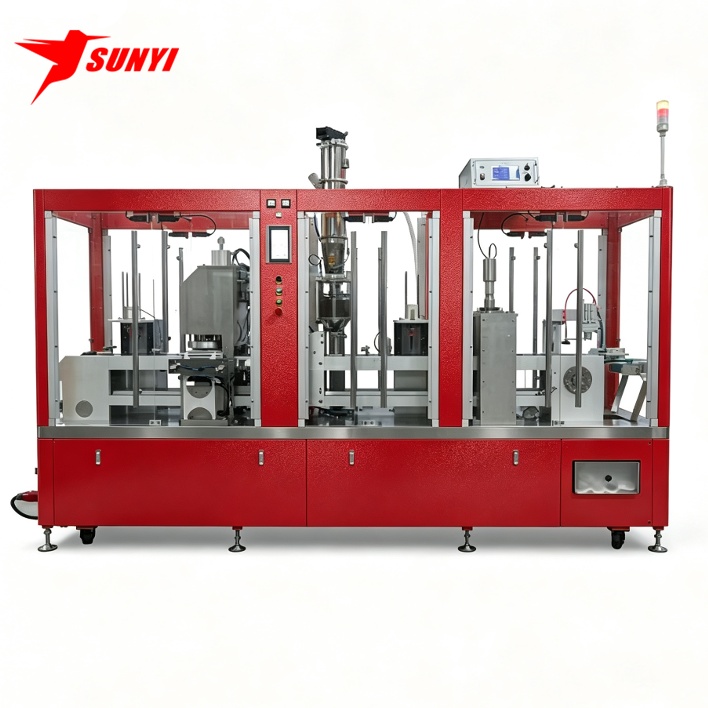

SUNYI SKP-1 Automatic UFO Pour Over Filter Coffee Filling & Packing Machine | 35 Bags/Min Eco Paper Filter Turnkey Line
SUNYI SKP-1 UFO pour over filter coffee filling packing machine is an all-in-one inline packaging equipment independently developed by SUNYI Intelligent Technology Group, a top Chinese packaging machinery manufacturer established in 2011. This integrated machine completes the whole production workflow of biodegradable UFO drip coffee filter bags without prefabricated empty filter bags, delivering stable output of 35 bags per minute. It supports seamless connection with SUNYI pillow bag packing machine and automatic cartoning machine to build a fully unmanned closed-loop coffee packaging line, perfectly matching medium & large specialty coffee factories targeting EU, US, Australia and Southeast eco-friendly packaging markets.
#UFO pour over filter coffee packing machine, #UFO drip coffee bag filling machine, #biodegradable paper coffee filter packaging machine, #ultrasonic sealing coffee filter machine, #servo auger coffee powder filling machine
Watch our full operation video of SUNYI SKP-1 UFO pour over filter coffee filling packing machine via YouTube: https://www.youtube.com/watch?v=IK3r5guEeb8 Video content covers full inline filter forming, servo filling, ultrasonic sealing, complete pillow bag & cartoning line running demonstration, actual 35 bags/min stable production test.
Core Competitive Advantages of SUNYI SKP-1 UFO Coffee Filter Packer
100% Compostable Paper Filter Solution, Zero Plastic Compliance
All UFO filter bodies, top & bottom paper rings adopt food-grade fully biodegradable paper raw material, plastic-free structure, fully meet global eco packaging regulations, ideal for premium sustainable coffee brands.
6-Station Integrated Online Forming Technology, Labor Cost Cut by 60%
The whole filter bag manufacturing process runs continuously on one machine: bottom paper ring placement → filter paper cutting & heat sealing → 3D UFO bag shaping → servo auger coffee filling → top paper ring feeding → ultrasonic sealing. No manual pre-making empty filter bags, greatly reducing human error and production cost.
High-Precision Servo Auger Filling System
Servo motor controlled auger dosing structure, filling tolerance ±0.1g, stable metering for fine, medium and coarse ground coffee powder. Anti-leakage powder design avoids waste and inconsistent coffee weight for uniform brewing taste.
Industrial Ultrasonic Non-High-Temp Sealing
High-frequency ultrasonic bonding connects top paper ring and UFO filter bag without burning paper fiber, tight leak-proof seal, lock coffee original aroma without flavor loss, better than traditional heat sealing for thin biodegradable paper.
Expandable Full Turnkey Packaging Line Function
Docking pillow bag machine with nitrogen flushing module, residual oxygen inside coffee pillow bags controlled below 1% to extend shelf life over 12 months
Built-in thermo-transfer coding system, supports automatic real-time QR code & batch number/date update printing for full product traceability
Unified industrial communication protocol, compatible with all SUNYI cartoning machines for automatic finished box packaging
Food-Grade SUS304 Stainless Steel Construction & Global Certifications
All parts contacting coffee powder and filter paper adopt SUS304 stainless steel, easy to disassemble and clean, fully comply with food hygiene standards. The whole machine passed CE, ISO9001, SGS certification, supports customized voltage for global factories.
Intelligent PLC Multi-Language Control System
7-inch color touch screen with English, Spanish, French multi-language operation, automatic fault alarm, one-click parameter storage, quick mold switch for different UFO filter sizes without professional technicians.
Wide Application Range
Premium UFO disc pour over single-serve drip coffee production
Biodegradable paper hanging ear tea bag packaging
Fine powder food: matcha, cocoa, herbal powder small portion filling
Custom eco paper filter container filling for food & beverage industry
Complete Turnkey Packaging Line Matching Configuration
Front Host: SKP-1 UFO filter forming, filling & ultrasonic sealing main machine

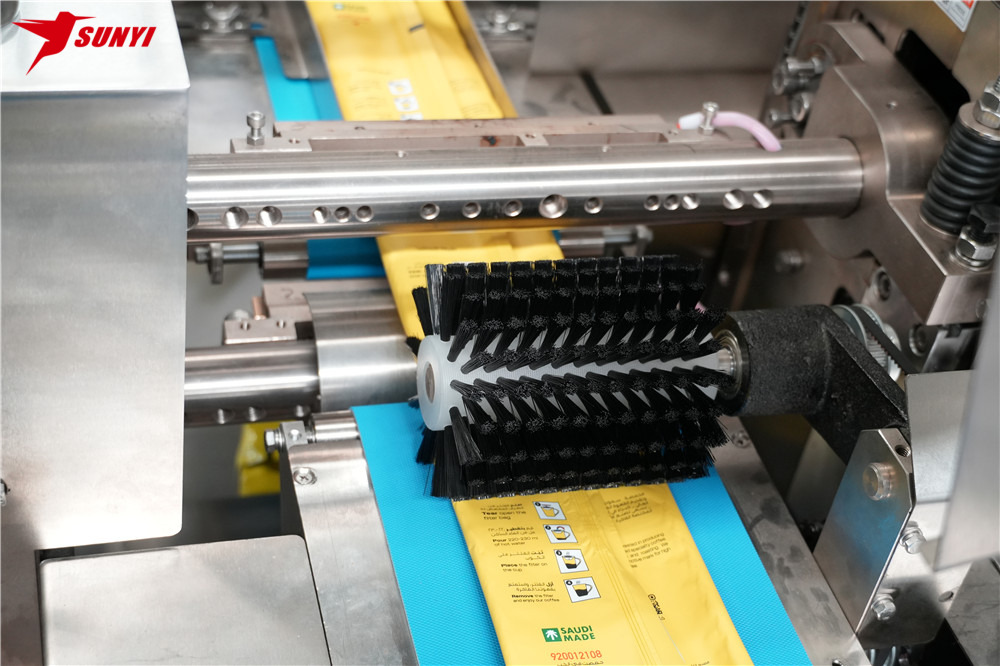

Middle Unit: Pillow bag packing machine (nitrogen flushing + auto QR code coding)
Back-End Unit: Automatic cartoning machine for finished coffee pillow bags
All equipment share unified communication protocol, realize unmanned continuous production from raw paper roll feeding to finished carton output.
Standard Technical Parameters
Item
Detailed Technical Specification
Machine Model
SKP-1 UFO Pour Over Filter Coffee Filling Packing Machine
Max Production Speed
35 bags per minute (adjustable based on paper thickness & coffee weight)
Filter Raw Material
100% Biodegradable food-grade paper filter sheet, matching paper top & bottom rings
Filling System
Servo motor driving closed auger powder filler
Standard Filling Weight Range
5–15g ground coffee (customizable auger for special weight demand)
Filter Sealing Mode
Heat sealing for filter bottom forming; ultrasonic sealing for top paper ring bonding
Matching Pillow Bag Function
Nitrogen flushing, residual oxygen ≤1%
Coding System
Thermo-transfer batch No./date printer, auto real-time QR code update printing
Communication Interface
Standard industrial bus protocol, compatible with SUNYI pillow bag & cartoning machine

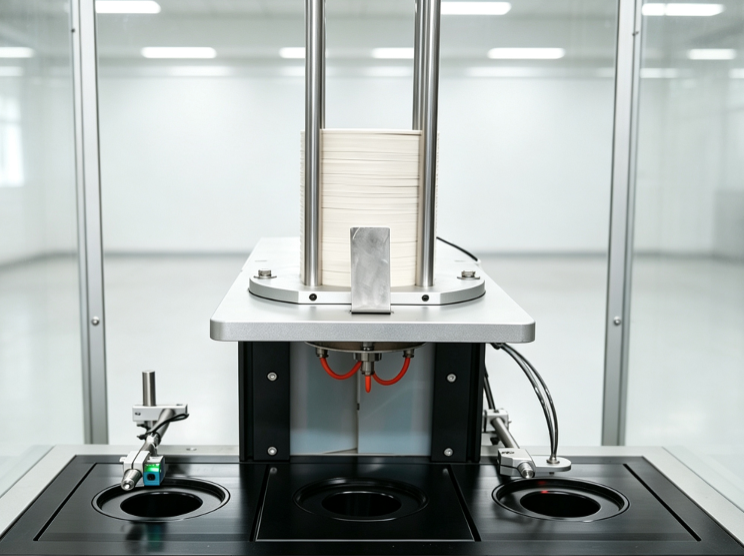

Station 1: Automatic Bottom Paper Ring Feeding & Placement Station
Workstation Function: Auto supply round biodegradable bottom paper ring, high-precision positioning without deviation, stable feeding without paper jams to guarantee uniform filter bottom forming.

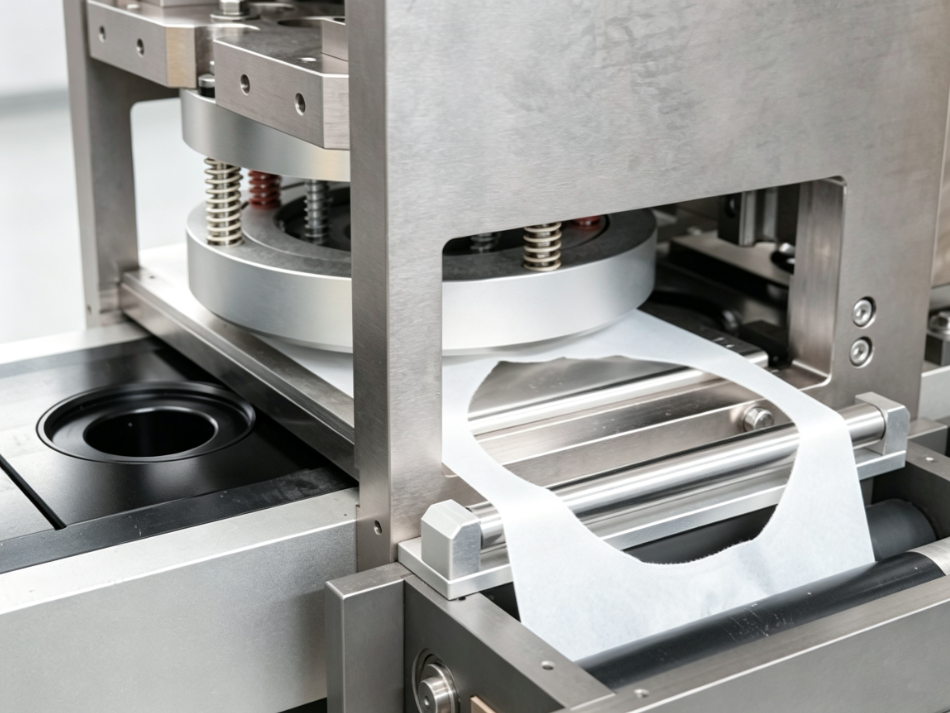

Station 2: Filter Paper Roll Cutting & Bottom Heat Sealing Station
Workstation Function: Continuous feeding filter paper roll, fixed-length cutting, heat seal filter paper and bottom paper ring to form the base mold of UFO filter bag.

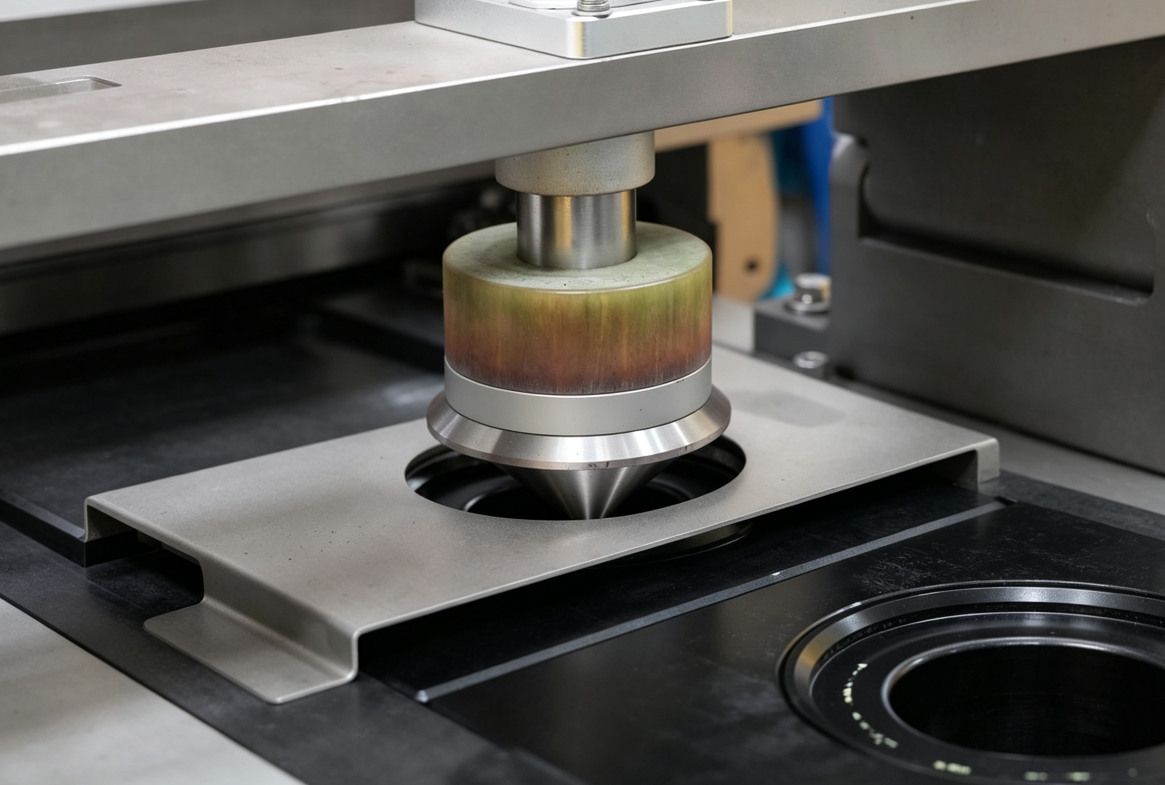

Station 3: UFO Filter Bag Shaping Molding Station
Workstation Function: Special shaping mold stretches flat filter paper into standard 3D UFO disc bowl shape, consistent bag volume for stable coffee brewing extraction.

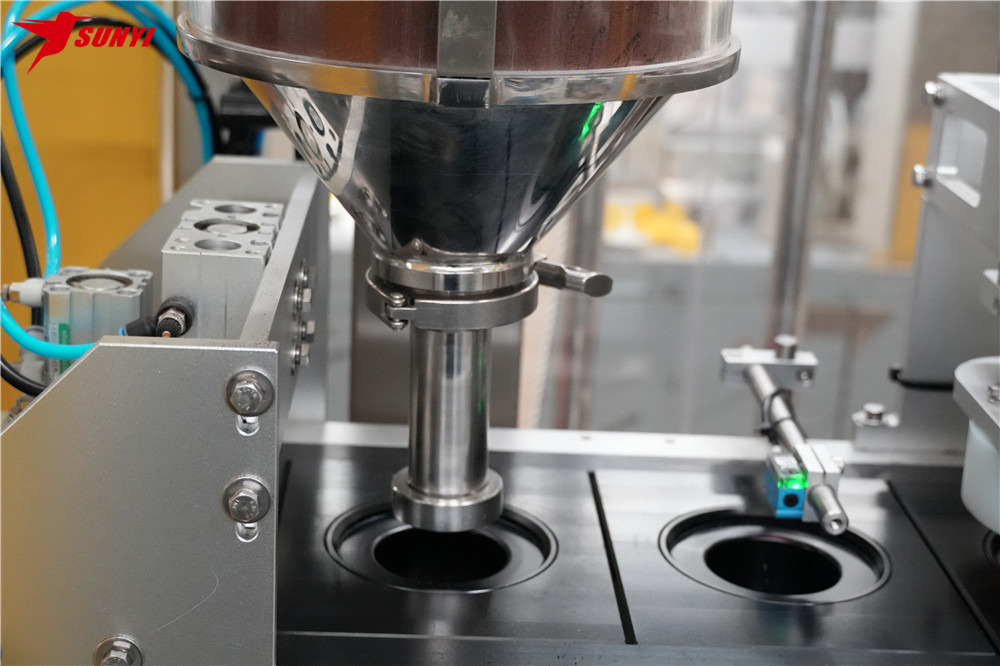

Station 4: Servo Auger Precision Coffee Powder Filling Station
Workstation Function: Closed anti-leakage servo auger dosing system, real-time weight monitoring, ±0.1g high filling accuracy for all types of ground coffee powder.

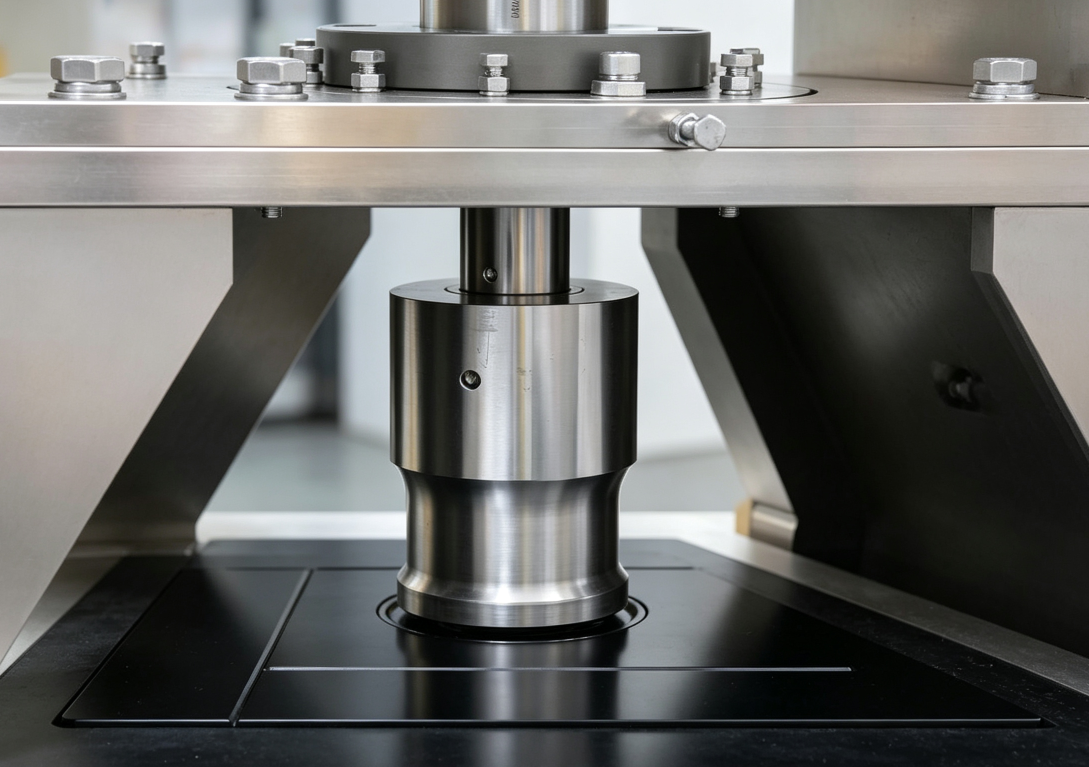

Station 5: Top Paper Ring Feeding & Ultrasonic Sealing Station
Workstation Function: Automatic top paper ring feeding, high-frequency ultrasonic welding to tightly bond top ring and UFO filter bag body, airtight seal without paper damage.
Station 6: Finished UFO Filter Bag Output Conveying Station
Workstation Function: Automatic conveyor transports sealed finished UFO coffee filters to pillow bag packaging machine, seamless docking for secondary nitrogen-filled packaging.
Full Complete Turnkey Packaging Line Render (Host + Pillow Bag + Cartoner)
Line Introduction: Integrated full production line including SKP-1 UFO filter host, nitrogen flush pillow bag machine and automatic cartoning machine, unmanned continuous packaging workflow from raw paper to finished carton.
Why Cooperate with SUNYI MACHINERY?
Founded in 2011, SUNYI specializes in intelligent filling, sealing and cartoning packaging machinery for coffee, condiment, cosmetics, dairy and pharmaceutical industries. We own a professional R&D engineer team, provide free factory machine testing before order, overseas on-site installation & operation training, 1-year full machine warranty and lifetime remote technical support. Our factory is located in Kunshan, Jiangsu Province, China, and our packaging equipment has been exported to more than 140 countries worldwide with consistent positive customer feedback.
FAQ Section (Boost Long-tail SEO Search Traffic)
Q1: Are the UFO filter bags produced by this machine fully biodegradable?
A: Yes. The filter paper, top and bottom paper rings all adopt 100% food-grade biodegradable paper without any plastic composition, fully compliant with EU, US eco-friendly packaging regulations.
Q2: Can the SKP-1 machine connect to my existing pillow bag packing equipment?
A: The machine reserves universal industrial communication interface. It is perfectly matched with all SUNYI series pillow bag machines, and we support customized docking solutions for third-party brand packaging equipment.
Q3: How low can the residual oxygen be after nitrogen flushing in pillow bags?
A: When matched with SUNYI supporting pillow bag machine with nitrogen flushing module, the residual oxygen inside coffee outer pillow bags can be controlled below 1%, greatly extending coffee shelf life and preserving fresh flavor.
Q4: Does the coding system support automatic QR code real-time update?
A: Our thermo-transfer coding printer can connect to client ERP system to automatically update batch number, production date and traceability QR code without manual modification.
Q5: What after-sales service can SUNYI provide for this machine?
A: We offer 1-year full machine warranty, free factory machine testing before order confirmation, overseas engineer on-site installation & operation training, lifetime spare parts supply and 24/7 remote online technical support.
Q6: Can we customize the UFO filter size and coffee filling weight?
A: Full customization service is available. We adjust the forming mold and servo auger filler according to your sample UFO filter bag to match different filter diameters, bag depths and filling weight from 5g to 15g.
