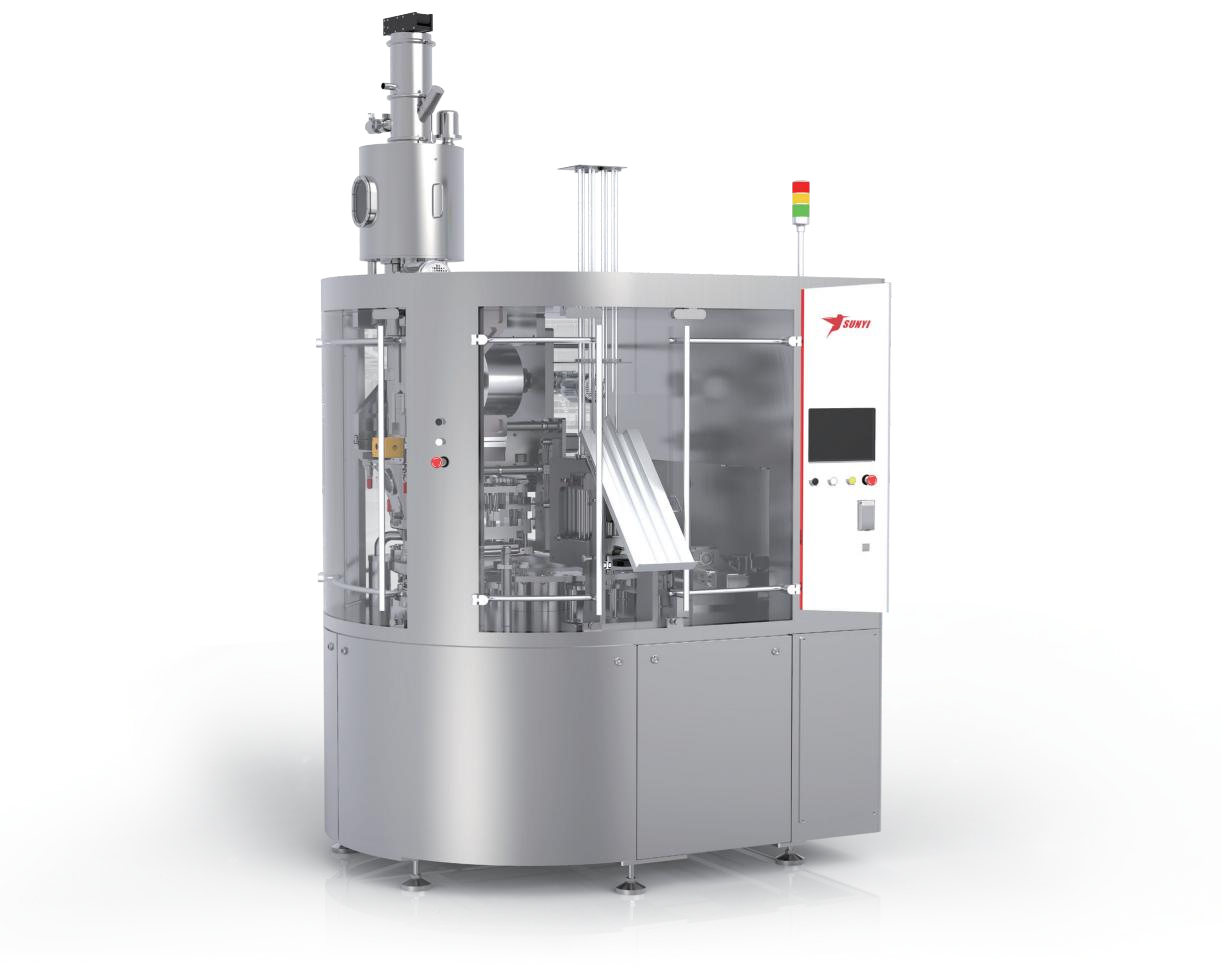

The SC-3N is a compact, high-efficiency rotary filling and sealing machine designed specifically for coffee capsules such as Nespresso®, K-Cup®, Dolce Gusto®, and other compatible formats.
Equipped with three working lanes, the SC-3N achieves excellent output in a small footprint, making it ideal for small to medium-sized coffee producers looking to scale up with reliability and precision.
Optional nitrogen flushing ensures freshness, while the PLC touchscreen makes operation simple and efficient. Ideal for small to medium-scale coffee manufacturers seeking consistent quality and flexible production.
Key Features: 3-lane rotary design for continuous and stable production High-precision powder dosing system for consistent fill weight Optional nitrogen flushing to preserve coffee freshness Automatic cup loading, lid placing, and sealing Touchscreen PLC control for easy operation and parameter adjustment Compatible with multiple capsule types and sizes Customizable molds and functions to meet specific production need
|  |
The Details of machine

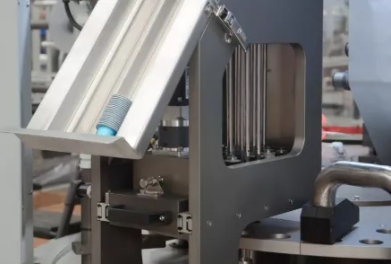

 1.Vertical capsule loading
|

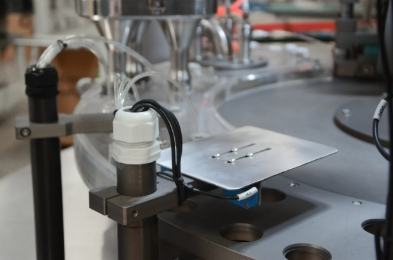

 2.Empty capsule detection
|

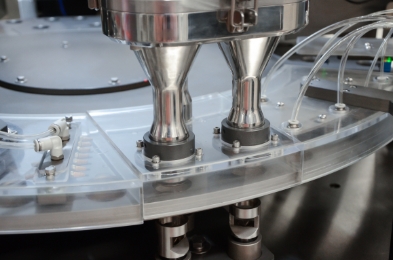

 3.Filling system station
|

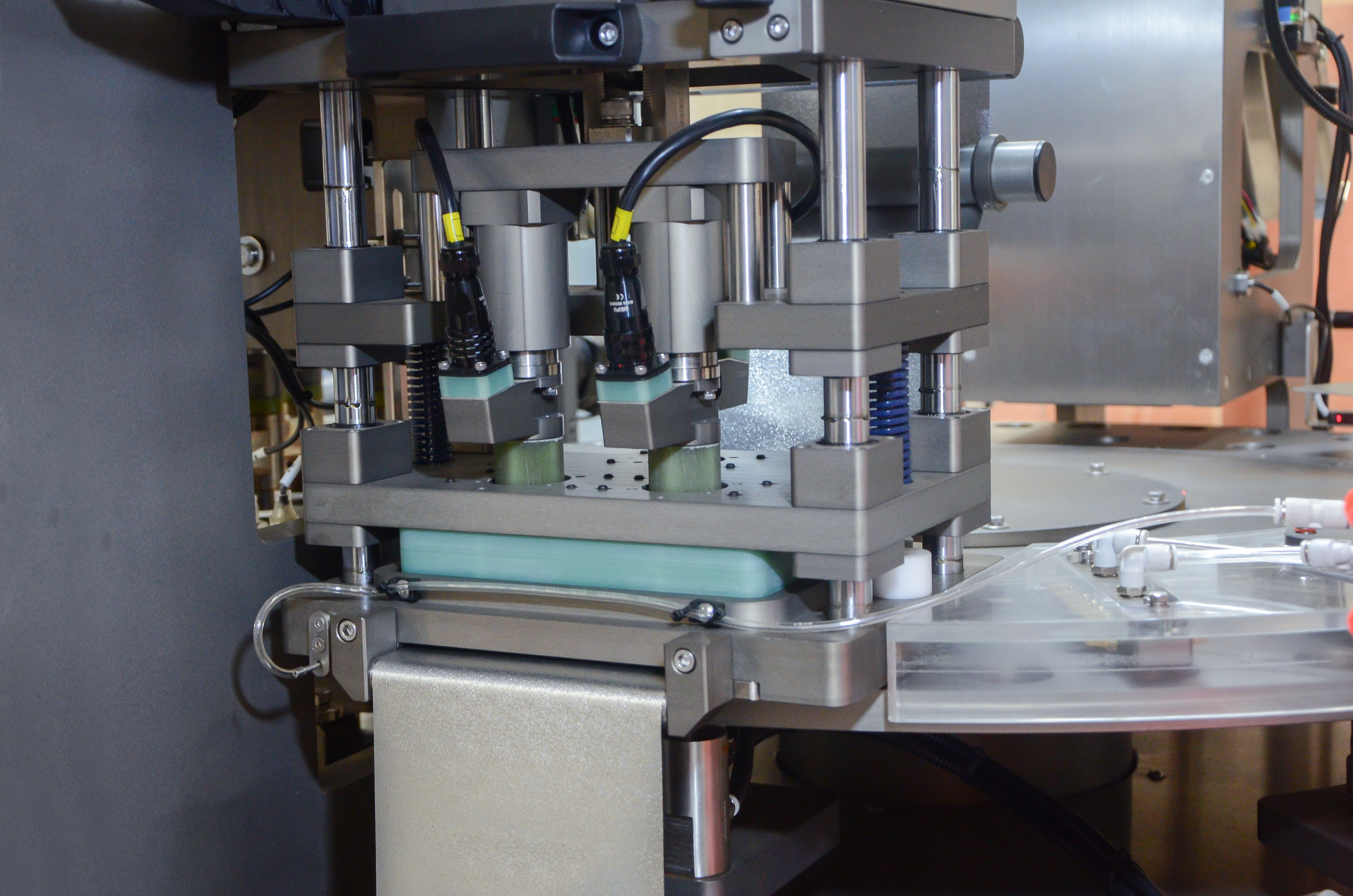

 4.Cutting and sealing station
|

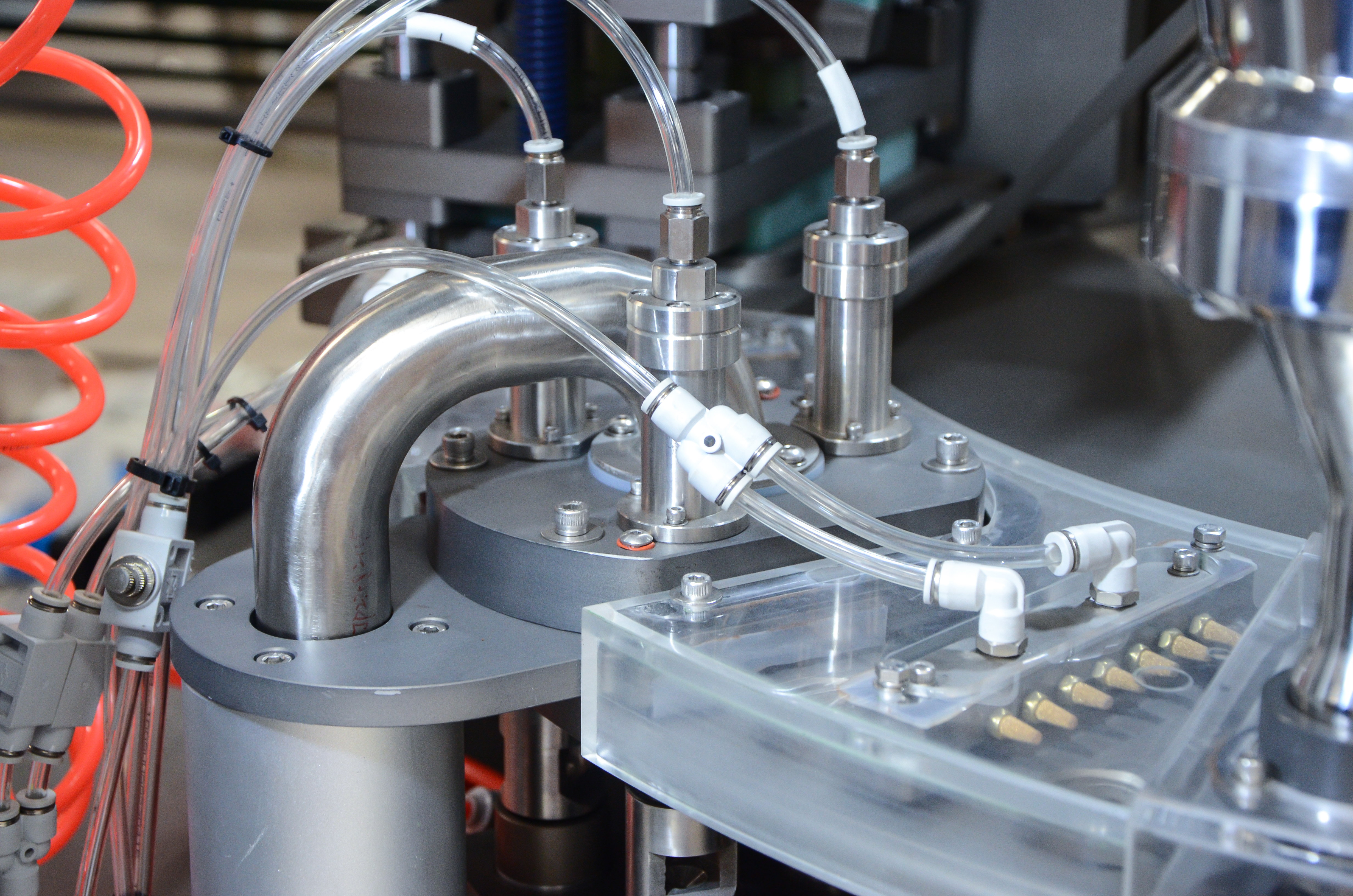

 5.Nitrogen influsion system
|

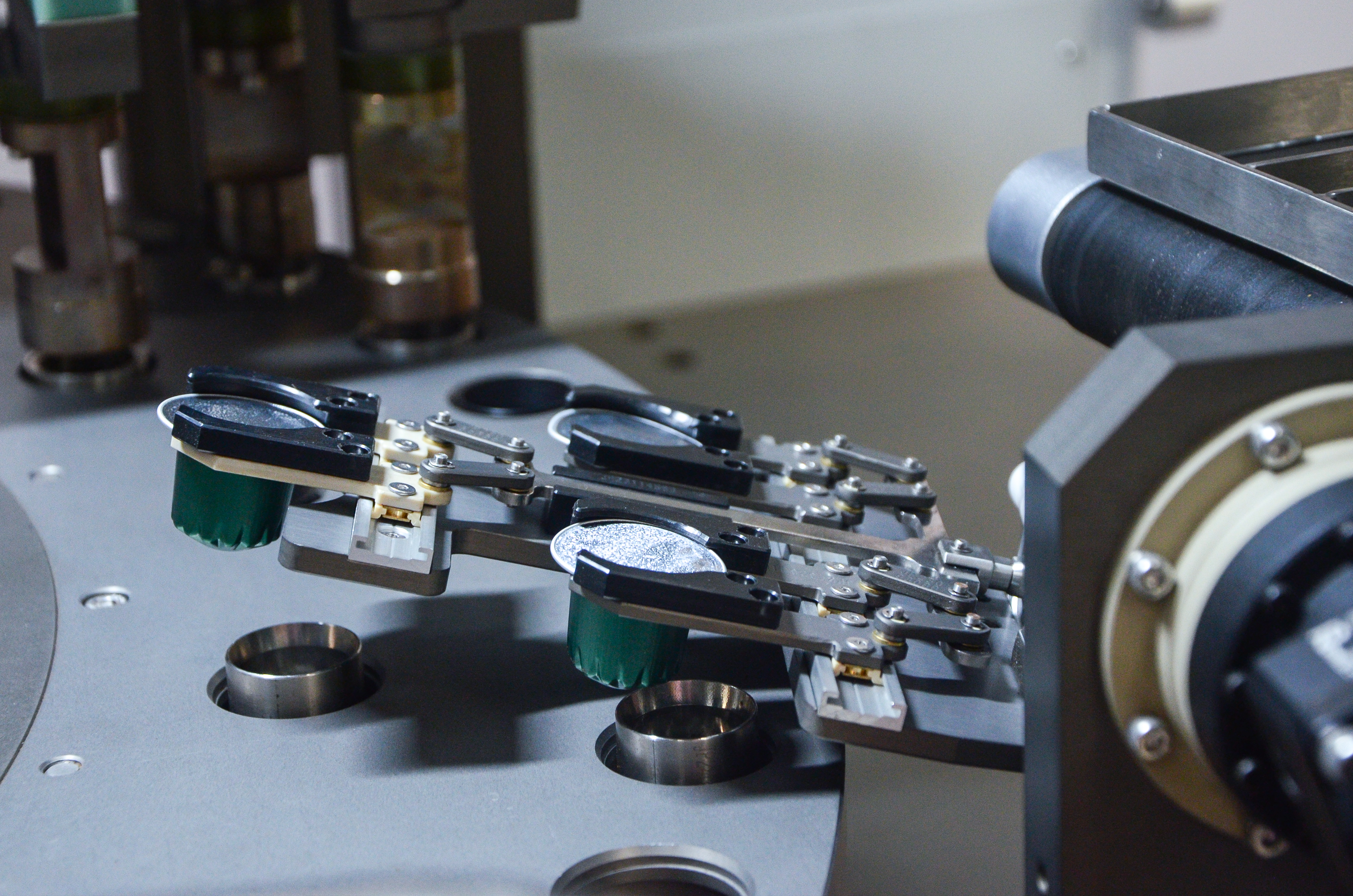

 6.cup out station
|
Parameter
Mechanic | The main body of the machine and the parts in contact with food are all 304 stainless steel, and the rest are made of iron, aluminum, plastic, etc. |
Manufacture Standard | CE,SGS,ISO9001 |
Filling Material | Powder/Liquid/Paste/Granule |
Sealing Material | Sealing Foil in Roll, Precut/die-cut Foil Lids, Paper Film, etc, |
Production Capacity | 120-180 capsules/min |
Filling Method | Volumetric Dosage/Multi-heads Weigher
|
Filling Weight | 0-50g |
Feeding Method | Vacuum Feeder + Top Mixer |
Filling Accuracy | ±2%-5% |
Power Supply | AC380V,220V,3P |
Nitrogen Consumption | 65-80Nm³/h |
Compressed Air Consumption | 0.9m³/min |
Machine Weight | 1800Kg |
Machine Dimension | 1800×1800×3200mm （Based on the real size） |
Introduce
SUNYI is more attached and designed to specialty coffee capsule packing. In particular, we can help customers choose high matching and cost-effective packaging solutions according to their different business needs, and in the process of cooperation to provide customers with high-quality packaging materials program. High quality machine and high quality packaging materials will inevitably produce high quality coffee capsules.
YouTube:https://www.youtube.com/@sunyimachine
Certification
Packing
1.Vertical capsule loading
2.Empty capsule detection
3.Filling system station
4.Cutting and sealing station
5.Nitrogen influsion system
6.cup out station
