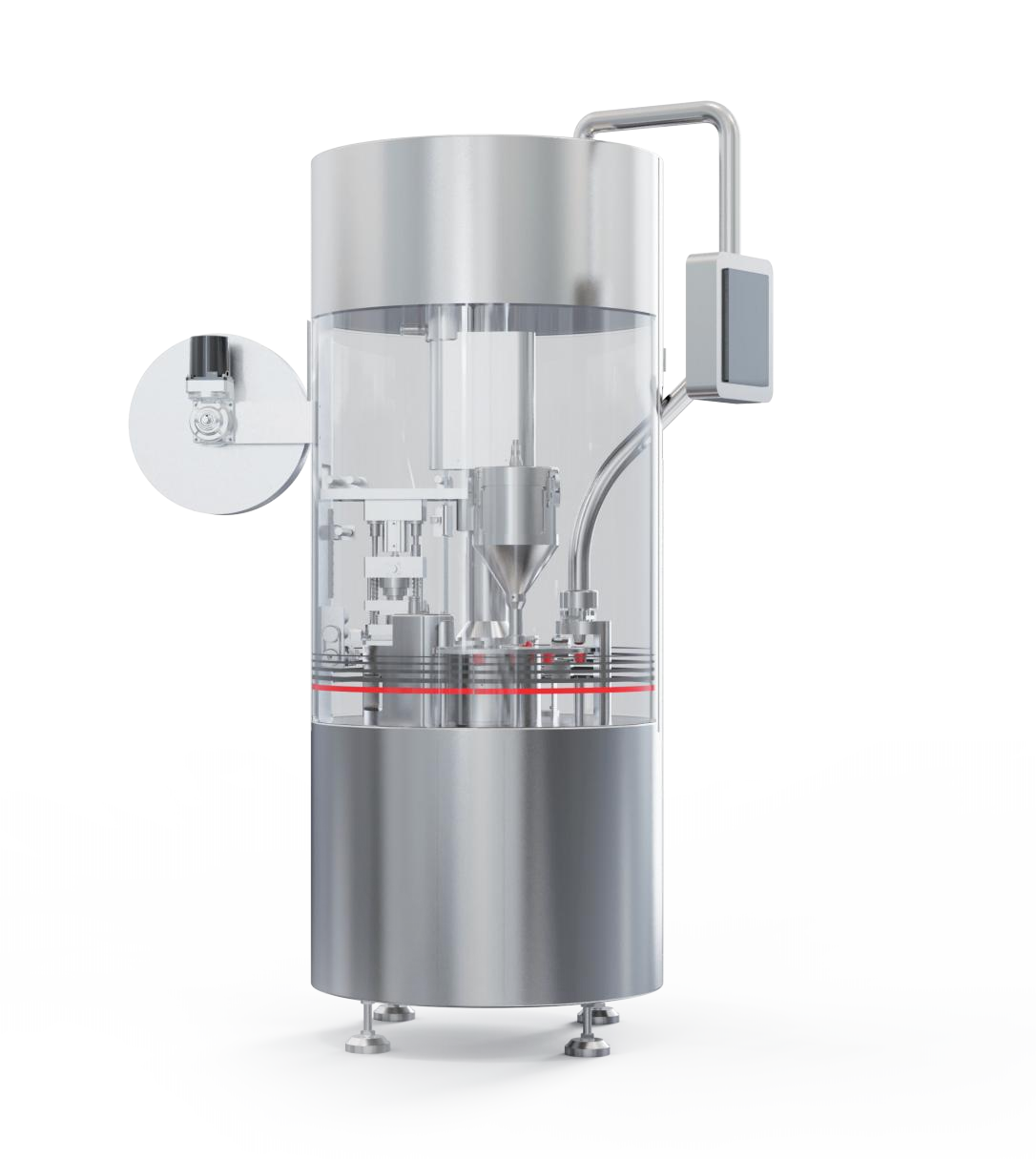

The SKP-1N is a compact, high-efficiency rotary filling and sealing machine designed specifically for coffee capsules such as Nespresso®, K-Cup®, and other compatible formats.
Equipped with one working lanes, the SKP-1N achieves excellent output in a small footprint, making it ideal for small to medium-sized coffee producers looking to scale up with reliability and precision.
Optional nitrogen flushing ensures freshness, while the PLC touchscreen makes operation simple and efficient. Ideal for small to medium-scale coffee manufacturers seeking consistent quality and flexible production.
Key Features: Small footprint, high production capacity, convenient operation, suitable for laboratory sampling and small-scale industrial production. Save materials and packaging, simple daily maintenance, and reduce energy consumption Nitrogen filling of 99% can maintain the flavor and freshness of coffee consuming products. The filling accuracy is higher, with an error of less than 0.2g. Weighing and retesting, equipped with automatic weight adjustment function, resulting in a higher yield rate. The application of ceramic heating technology results in more stable heat sealing temperature and higher heat sealing effect.
|
|

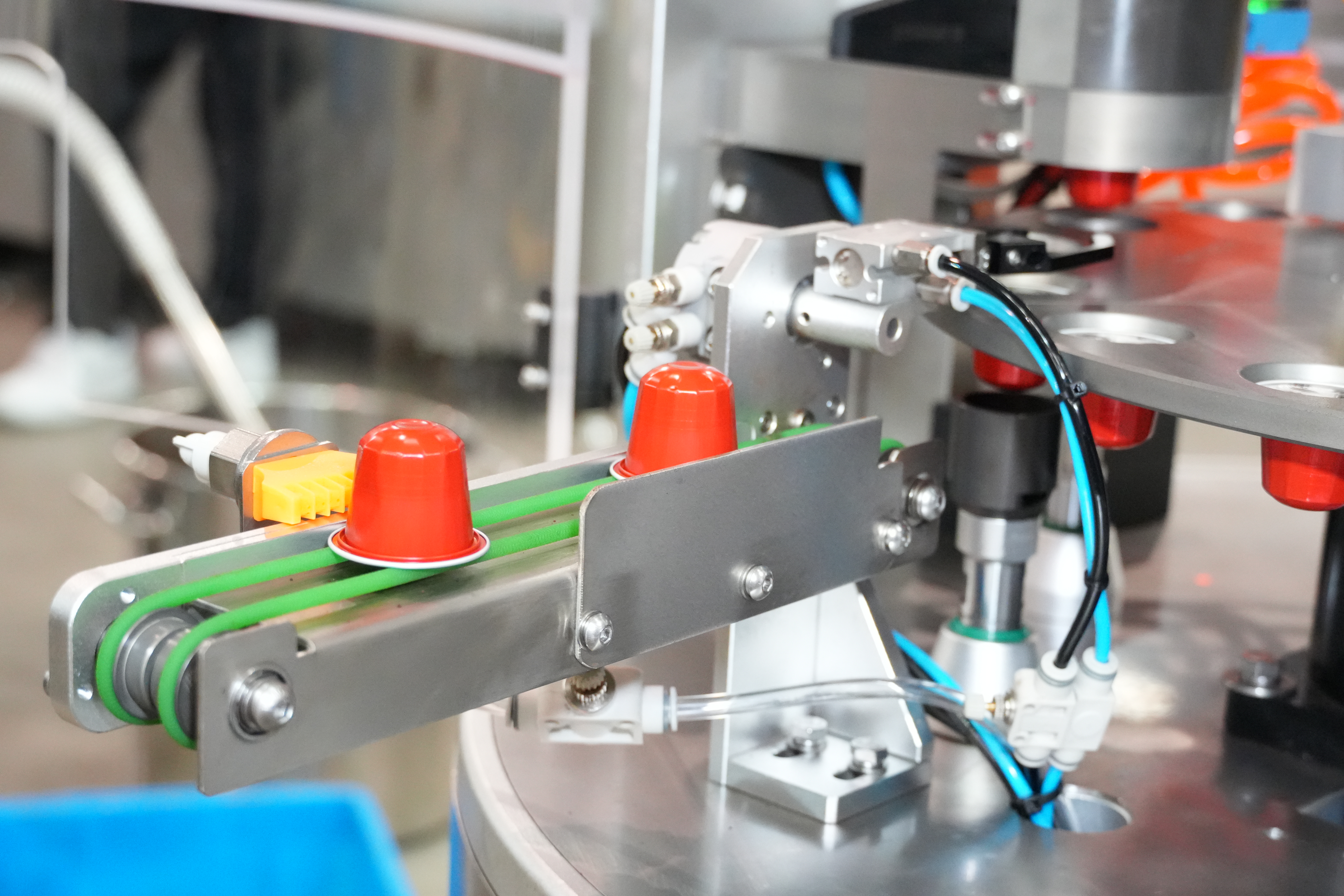

1.Vertical capsule loading |

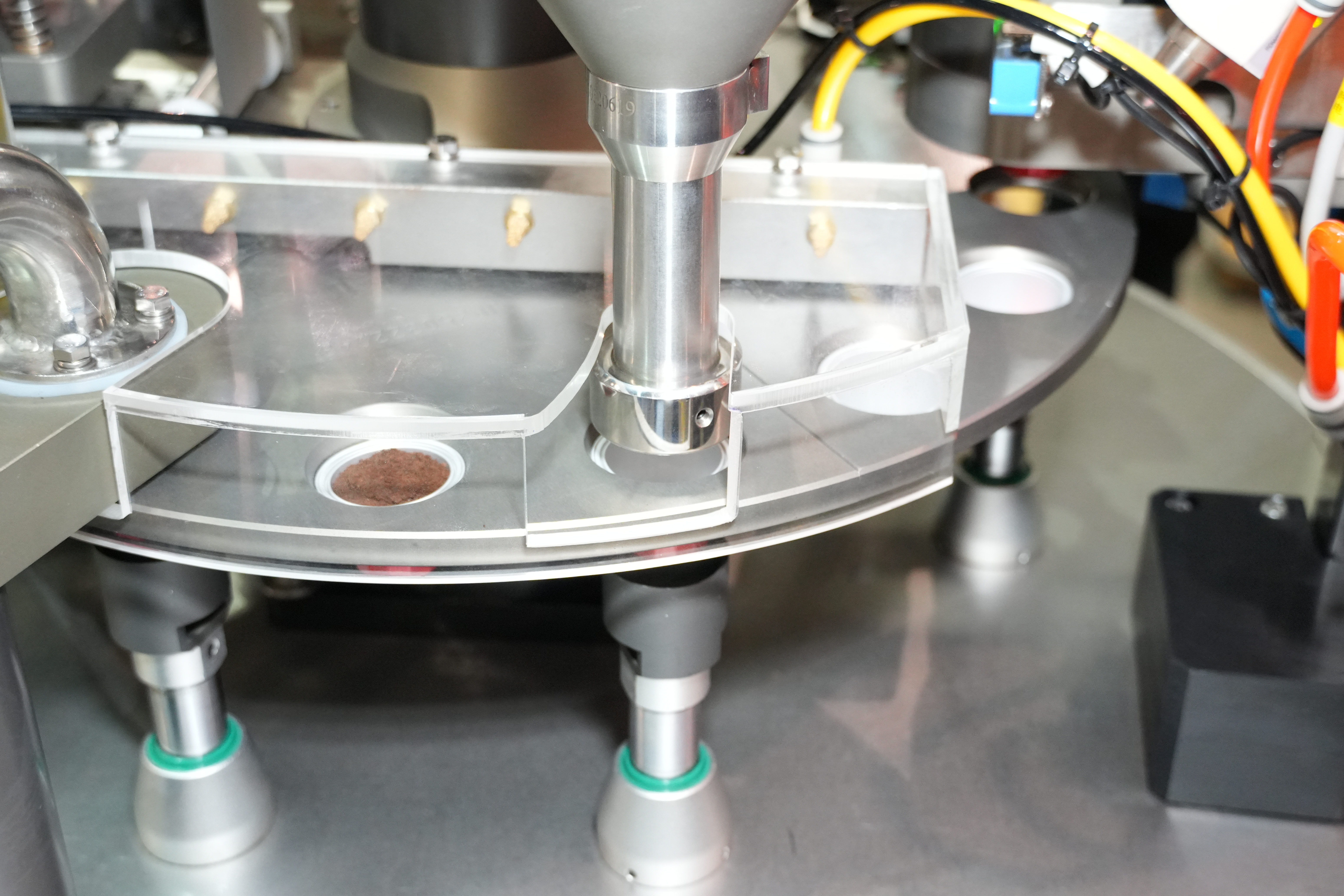

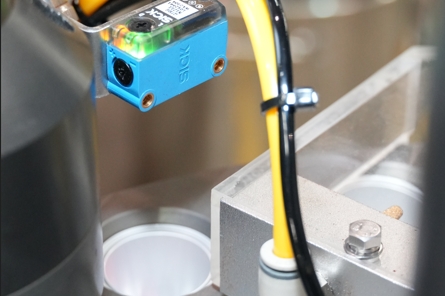

2.Empty capsule detection |  3.Filling system station
|
 4.Tamping&top rim cleaning

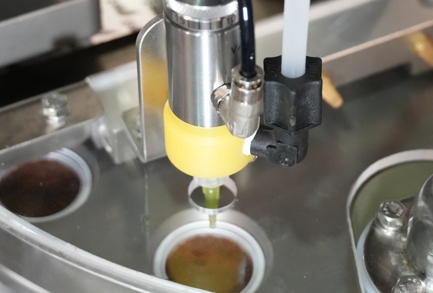

|  5.Liquid flavor dosing
|
6.Cutting film |

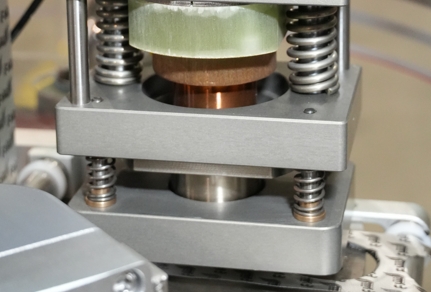

7.Aluminum foil sealing |
8.Discharge station |
9.Conveying of finished products |
Parameter
Mechanic | The main body of the machine and the parts in contact with food are all 304 stainless steel, and the rest are made of iron, aluminum, plastic, etc. |
Manufacture Standard | CE,SGS,ISO9001 |
Filling Material | Powder/Liquid/Paste/Granule
|
Optional | Vacuum Feeder/Screw Feeder/CIP System
|
Production Capacity | 60 capsules/min. |
Filling Method | Volumetric Dosage/Multi-heads Weigher |
Filling Weight | 0-50g |
Filling Accuracy | ±2%-5% |
Power Supply | AC380V,220V,1P/3P |
Compressed air pressure (bar) | 0.6Mpa-0.8Mpa |
Compressed Air Consumption | 0.5m³ /min |
Machine Weight | 300Kg |
| Machine Dimension | 680mm（L）*680mm(W)*1747.5mm(H) （Based on the real size） |
Introduce
SUNYI is more attached and designed to specialty coffee capsule packing. In particular, we can help customers choose high matching and cost-effective packaging solutions according to their different business needs, and in the process of cooperation to provide customers with high-quality packaging materials program. High quality machine and high quality packaging materials will inevitably produce high quality coffee capsules.
