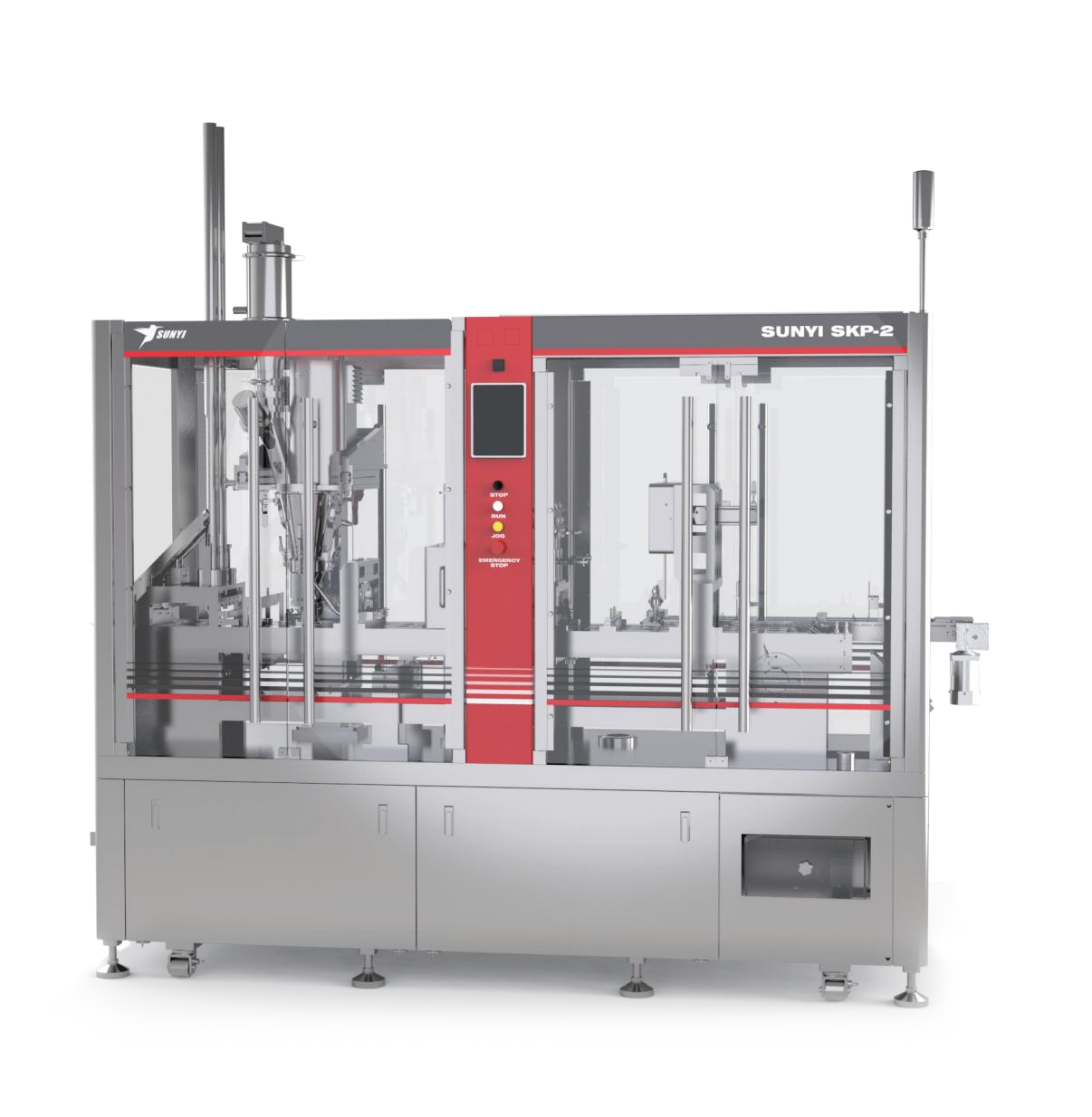

Compared to small cup filling and sealing equipment in existing niche markets, our new SKP-2 Automatic Liquid Filling And Sealing Machine has outstanding product advantages. Double efficiency, soaring production capacity: Double row straight line parallel filling and sealing, efficiency increased by 160% compared to single row equipment!
Key Features: Precise filling, cup to cup consistency: Imported high-precision metering pump/flow meter, with an error within ± 1%; Strong sealing and leak proof: With the support of intelligent temperature control and pressure regulation system, the sealing strength is increased by 40%; Fully automatic operation, one person controls the overall situation: the entire line completes automatic positioning, filling, film falling, sealing, and cup flipping, and one person can easily supervise the entire line, greatly reducing labor dependence and costs. Intelligent control, minimalist operation: 10 inch touch screen+PLC control core, one click parameter setting.Switching production can be completed in 3 minutes without the need for professional technicians, making it easy for employees to get started.
|  |
1.Vertical capsule loading |

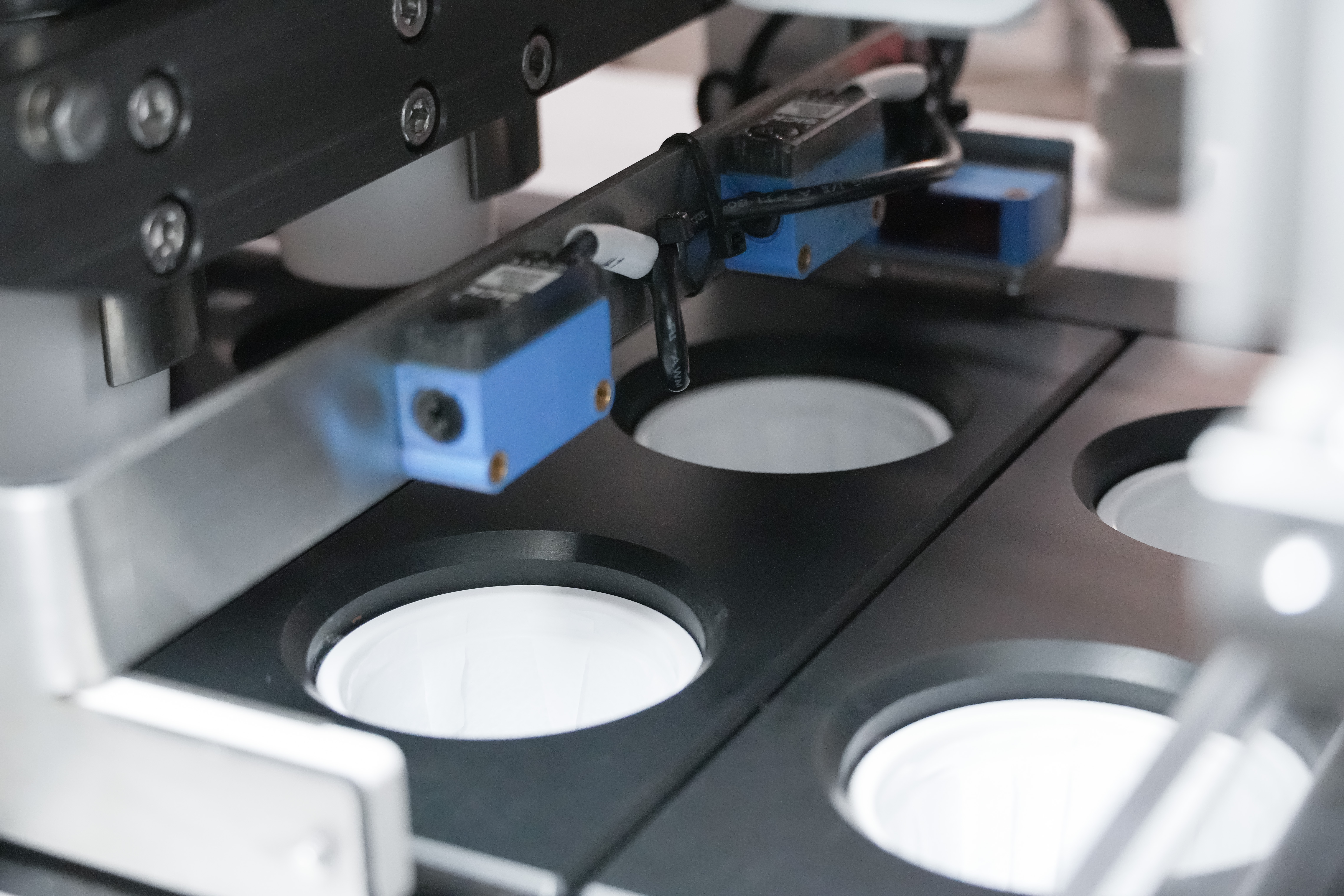

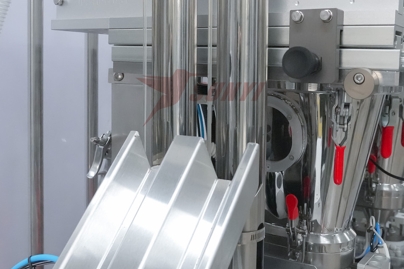

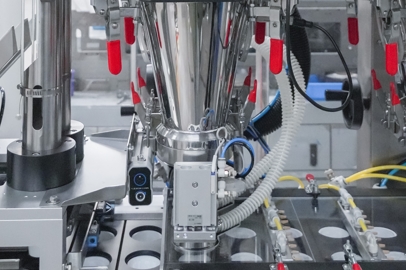

2.Empty capsule detection |  3.Filling system station
|

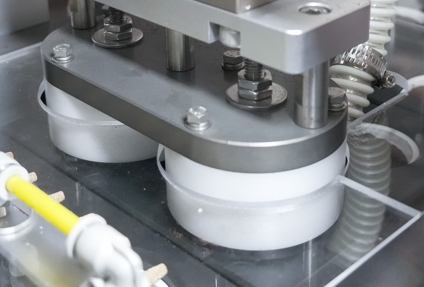

4.Tamping&top rim cleaning
|
5.Liquid flavor dosing |

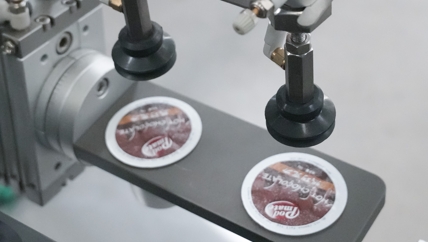

6.Place the film |

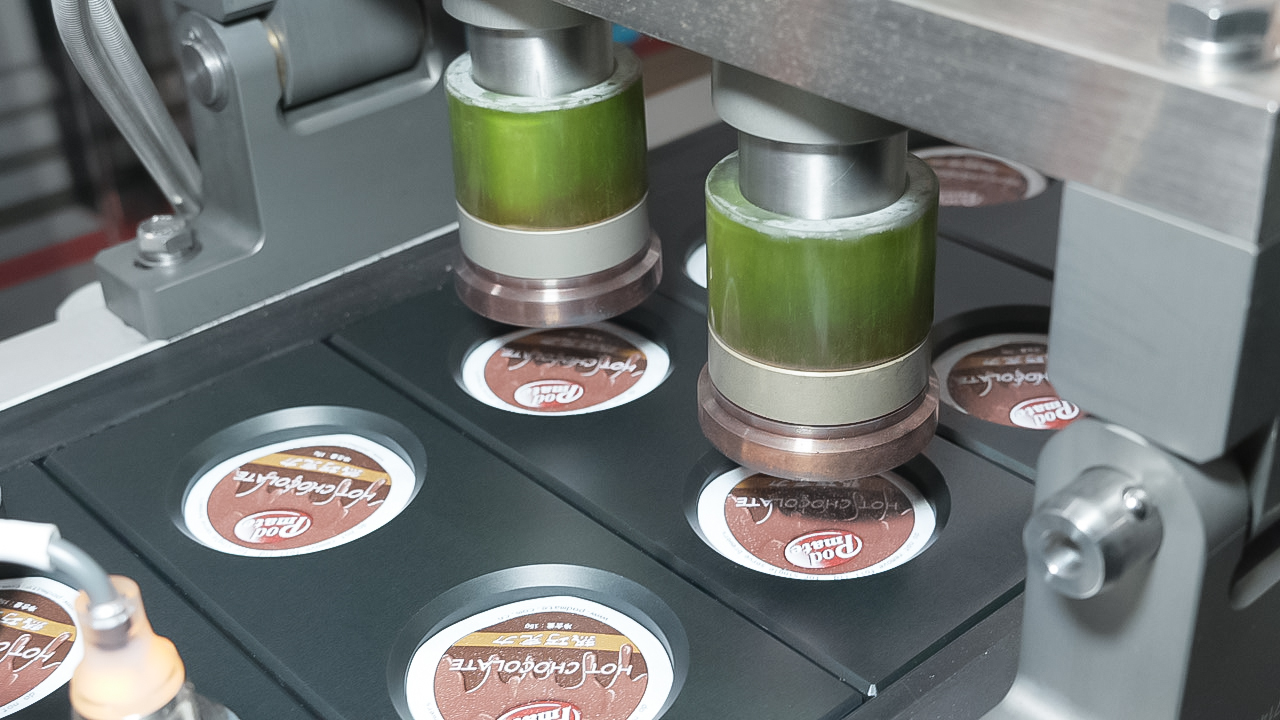

7.Sealing film
|
8.Discharge station |

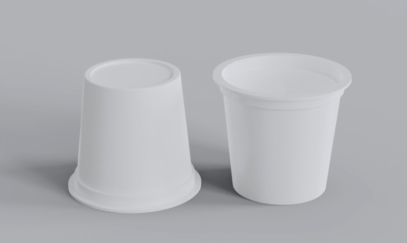

Suitable capsule-K cup
|
Parameter
Mechanic | The main body of the machine and the parts in contact with food are all 304 stainless steel, and the rest are made of iron, aluminum, plastic, etc. |
Manufacture Standard | CE,SGS,ISO9001 |
Filling Material | Ground Coffee Powder, Tea Powder, Probiotics, Soluble Powder,etc. |
Sealing Material | Sealing Foil in Roll, Precut/die-cut Foil Lids, Paper Film, etc, |
Production Capacity | 100 capsules/min |
Filling Method | Volumetric Dosage/Multi-heads Weigher
|
Filling Weight | 0-50g |
Feeding Method | Vacuum Feeder + Top Mixer |
Filling Accuracy | ±2%-5% |
Power Supply | AC380V,220V,3P |
Optional | Vacuum Feeder/Screw Feeder/CIP System
|
Compressed Air Consumption | 0.5 m³/min |
Machine Weight | 1500Kg |
Machine Dimension | 2500×2588.5×1356mm （Based on the real size） |
Introduce
SUNYI is more attached and designed to specialty coffee capsule packing. In particular, we can help customers choose high matching and cost-effective packaging solutions according to their different business needs, and in the process of cooperation to provide customers with high-quality packaging materials program. High quality machine and high quality packaging materials will inevitably produce high quality coffee capsules.
