SKP-2
SUNYI
HS 842230,9090

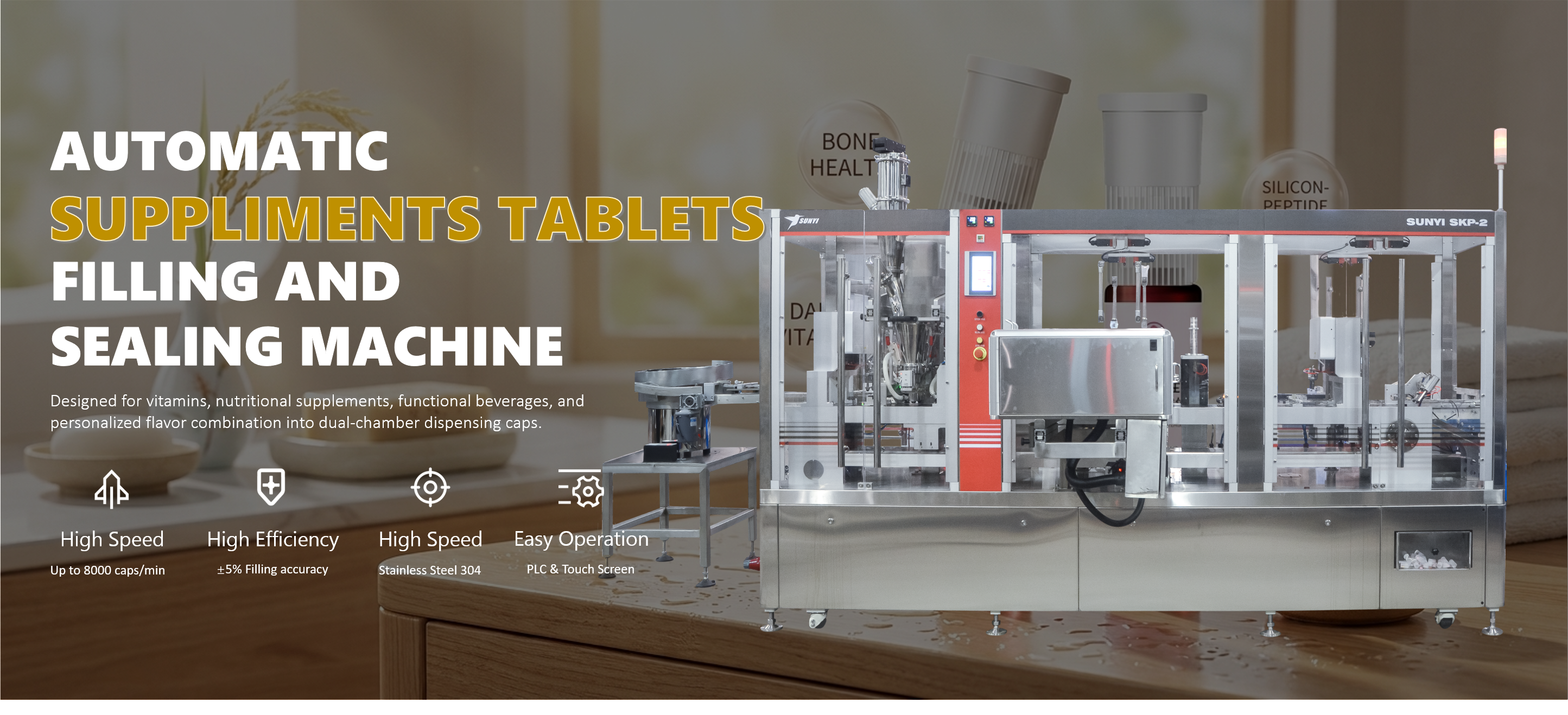

SUNYI’s automatic tablet filling and sealing machine is designed for innovative double-chamber bottle cap packaging, combining tablets with oral liquid beverages in a convenient and portable format.

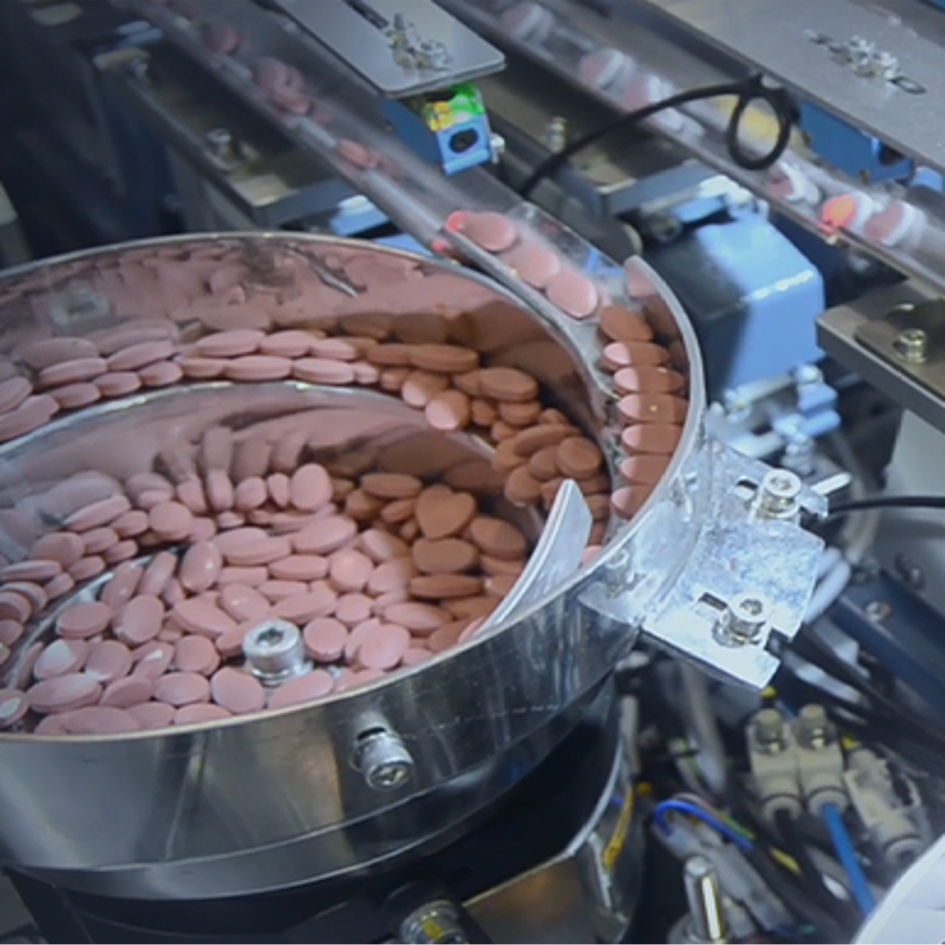

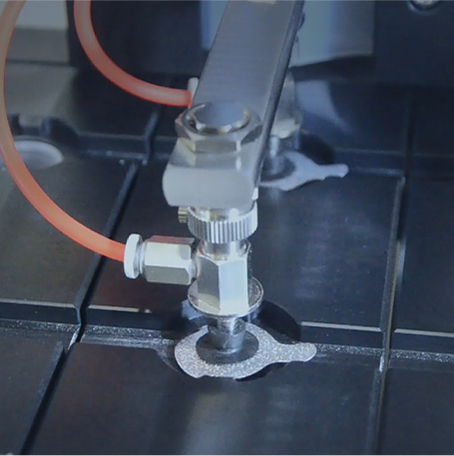

The two-lane system integrates automatic cap sorting and feeding, photoelectric tablet counting, tablet filling, multi-flavor tablet combination, film placement and sealing, and protective cap assembly.
The system can combine up to three different tablet flavors or formulations in one bottle cap, providing greater flexibility for vitamins, nutritional supplements, functional ingredients, and flavored beverage applications.
By keeping tablets separated from the liquid until consumption, the double-chamber cap provides a dry storage environment that helps protect sensitive tablet ingredients and maintain product quality.
This innovative packaging concept combines the convenience of an oral liquid with the nutritional and functional benefits of tablets, creating new opportunities for functional beverages, vitamin drinks, nutritional supplements, and personalized beverage experiences.

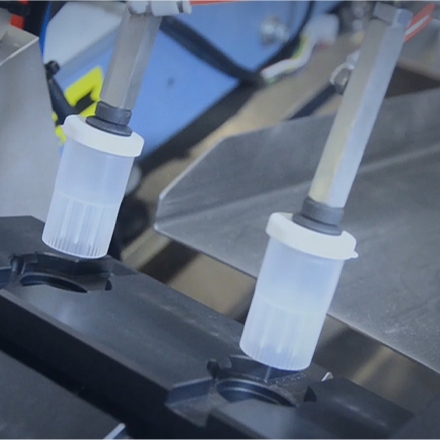

SUNYI provides a complete automated solution from tablet counting and filling to sealing, protective cap assembly, and finished product discharge, helping manufacturers achieve stable and efficient mass production.
Basic Farameters
Certificate | CE, ECM , ISO 9001, |
The packed object | Vitamins, nutritional supplements, functional beverages, and personalized flavor combination, etc. |
Capacity | 70-100 caps /per minute |

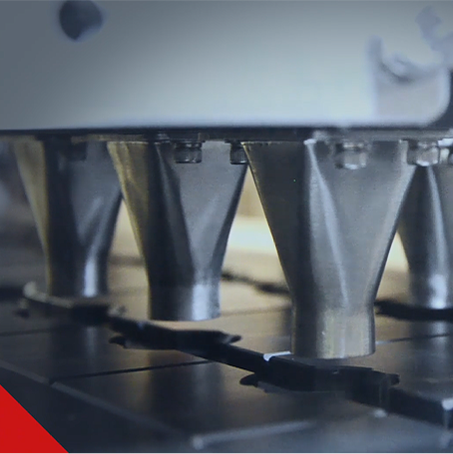

Filling system | Photoelectric tablet counting, Servo driven pricislly filling. |
Filling accuracy | ± 5% |
Filling range | 1-3 tablets |
Sealing | pre-cut lids/ sealing film in roll/capping |
Power | 7.5 KW |
Power Supply | 3-Phase 380V 50HZ/60HZ |
Compressed air pressure | ≥0.7Mpa |
Compressed Air Consumption | 0.7 mˆ3/minute |
Machine Weight | 3200kgs |
Machine Dimension | 5241mm(L)*2047mm(W)*2800mm(H) |

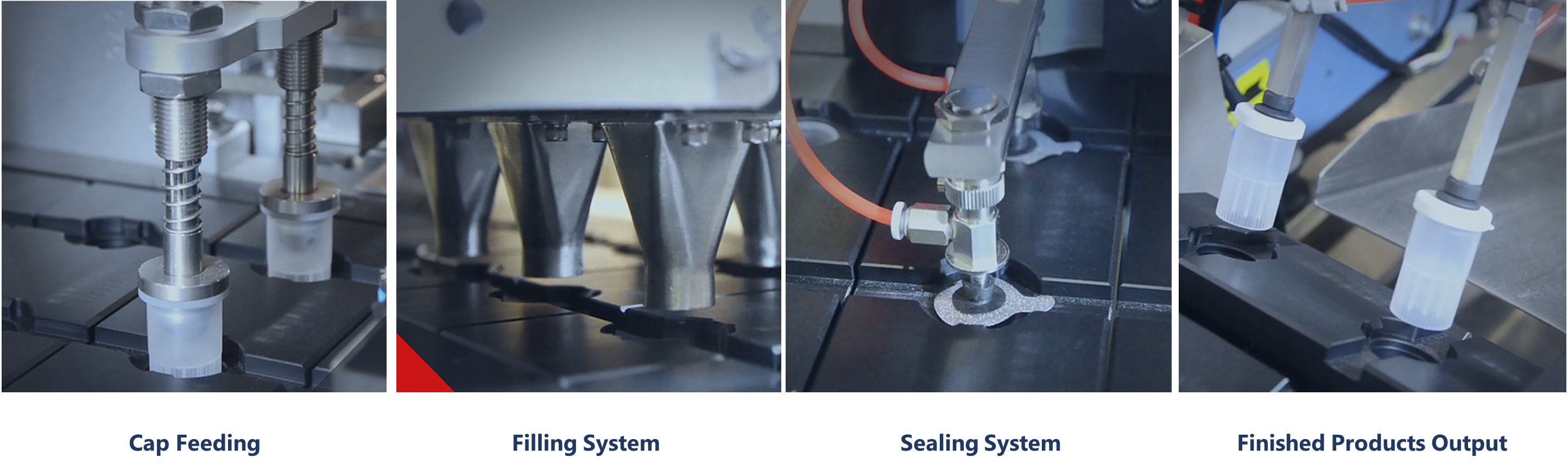

DETAILS DISPLAY

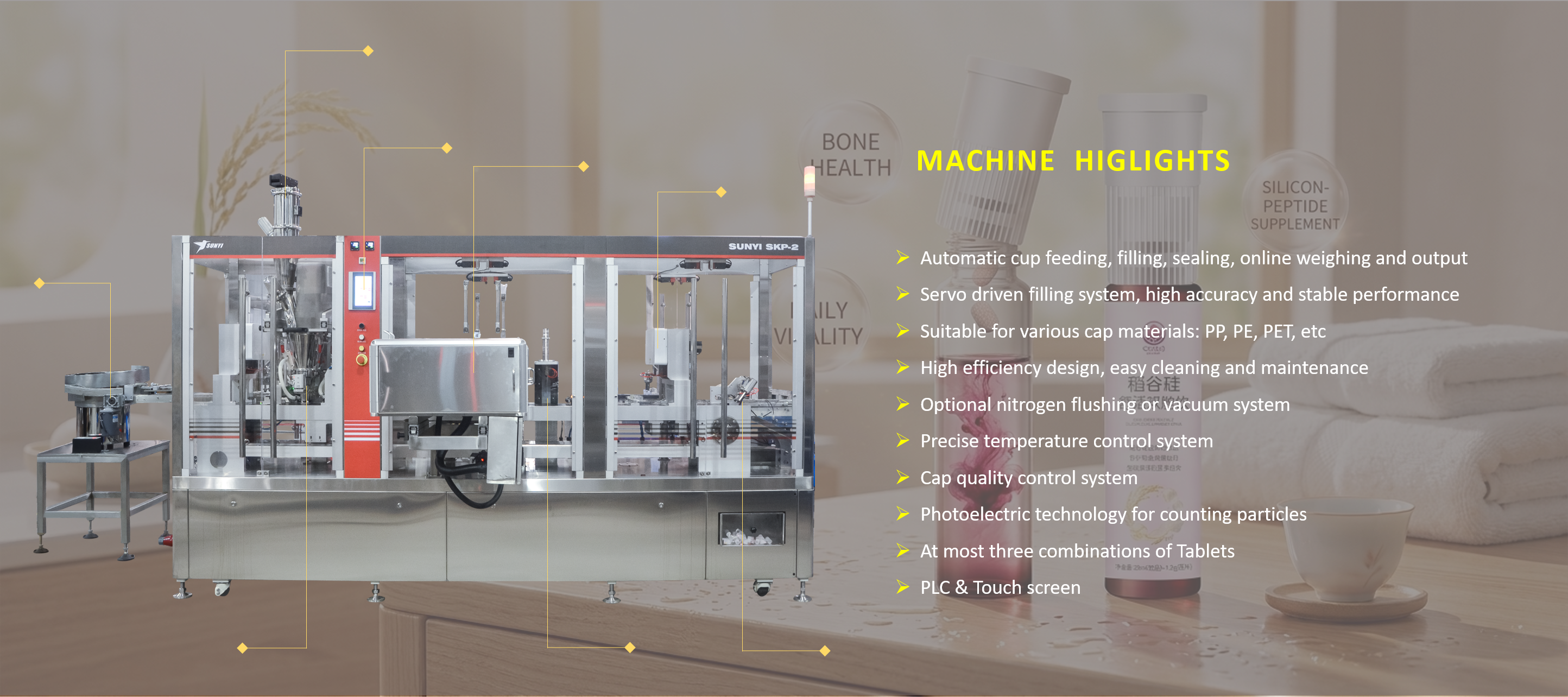

MACHINE HIGHLIGHTS
Servo-driven filling system for high accuracy and stable performance
Automatic cup feeding, filling, sealing, weighing & discharge
Compatible with PP, PE, PET and other cap materials
High-efficiency design for easy cleaning and maintenance
Optional nitrogen flushing or vacuum system
Precise temperature control for reliable sealing
Integrated cap quality inspection system

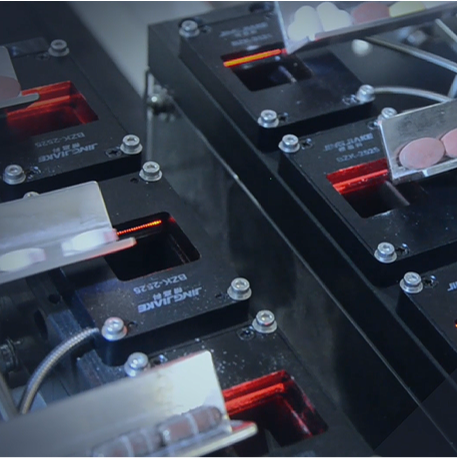

Photoelectric counting system for accurate tablet dosing
Up to 3 types of tablets in one package
PLC & touchscreen control system
WIDE APPLICATION
•Applicable Materials:
•Freeze-dried tea powder, freeze-dried coffee powder, blended coffee powder
•Probiotics, Vitamin C, and nutritional supplement powders
•Matcha powder, herbal tea powder, botanical extracts, herbal powders
•Anthocyanin powder and other functional powders
•Compatible Cap Materials: PP, PE, PET, and other materials.
Founded in 2011 and headquartered in Kunshan, Jiangsu, China, Sunyi Intelligent Technology Group Co., Ltd. specializes in the R&D, manufacturing, and service of intelligent packaging equipment and automated packaging solutions.
With over 10 years of industry experience, SUNYI provides complete packaging solutions for coffee, tea, dairy products, sauces, nutritional supplements, solid beverages, daily chemicals, pet food, medical products, and other FMCG industries. Our products include automatic filling and sealing machines, coffee capsule filling machines, liquid filling machines, powder filling machines, cartoning machines, and turnkey packaging lines.
Manufacturing Capability
SUNYI operates a 4,200㎡ manufacturing facility with 70 employees, including professional mechanical, electrical, and software engineers. We deliver customized solutions from single machines to complete automatic packaging lines.
Quality Control
SUNYI implements strict quality management based on ISO9001 standards, covering design, component inspection, assembly, testing, and FAT before shipment. Our equipment complies with international requirements with CE certification and Germany EPR compliance, ensuring stable performance, accurate filling, and reliable sealing.
R&D Innovation
Supported by a 30-member R&D team and 130+ patents, SUNYI continuously develops advanced packaging technologies integrating servo control, digital systems, robotics, and automation solutions.
With strong expertise in single-serve packaging, we provide professional coffee capsule filling and sealing solutions for Nespresso, K-Cup, Lavazza, Dolce Gusto, Caffitaly, and other capsule applications.
Global Service
SUNYI has supplied intelligent packaging solutions to customers in 80+ countries and regions. We provide customized design, installation support, remote debugging, technical training, and overseas after-sales service.

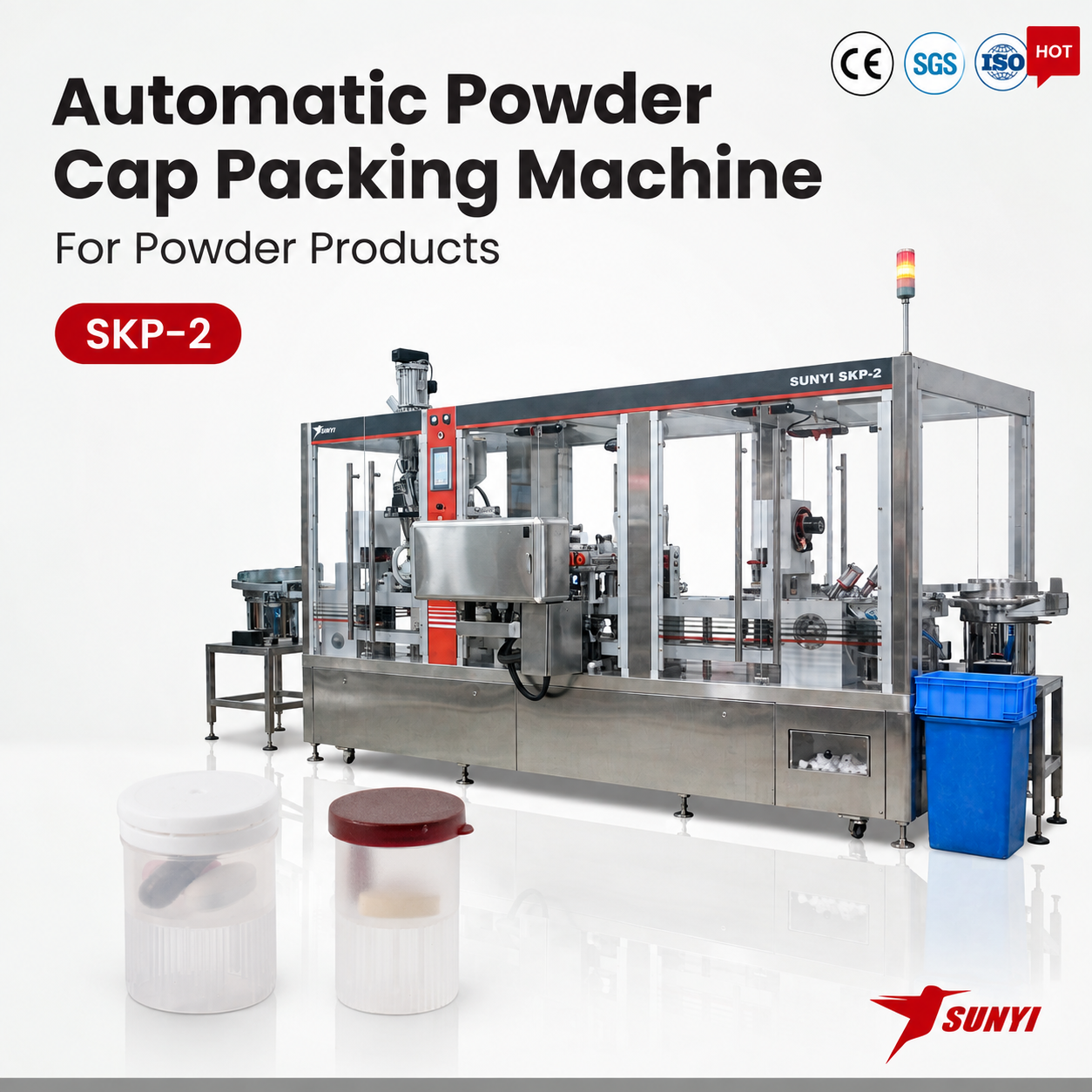

Q1: What types of products is the SKP-2 Automatic Powder Cap Packing Machine designed for?
A: It is specifically engineered for dosing, filling, and sealing functional powder caps, fresh-locking caps, and dual-chamber dosing systems (such as those used for instant beverages, nutritional supplements, and functional drinks).
Q2: What is the production capacity and configuration of this machine?
A: The SKP-2 operates as a high-efficiency 2-lane automated system, offering a stable and continuous output tailored for medium-to-high-volume manufacturing needs while maintaining precise quality control across both lanes.
Q3: How accurate is the powder dosing system?
A: The machine utilizes a high-precision servo-driven auger/micro-dosing mechanism with vacuum or anti-dust assist. This ensures tight fill tolerances, minimizes product giveaway, and prevents powder contamination on the cap sealing margins.
Q4: How does the machine ensure seal integrity and fresh-locking performance?
A: It features precise temperature control and tailored sealing heads that apply uniform pressure to achieve a leak-proof, moisture-barrier seal, preserving the active ingredients in the powder cap for long shelf-life stability.
Q5: What international quality and safety certifications does the machine hold?
A: The unit is constructed with food-grade stainless steel (SUS304/SUS316 contact parts) and fully complies with CE, SGS, and ISO quality and safety standards.
Q6: Can the machine handle different cap shapes or sizes?
A: Yes, the SKP-2 features a modular mold design. Changing components or adjusting parameter settings via the touchscreen PLC interface allows smooth adaptation to various dosing cap specifications and designs.
