SDP-50 Drip Bag Coffee & Tagged Tea Bag Full Packaging Line

SDP-50 Drip Bag Coffee Filling Packing Machine Line | 80 Bags/Min Tagged Steep Tea Bag Sealer with Robotic Pick & Place Cartoning System, Multi-Units Expandable High Capacity Production Line

The SDP-50 full automatic packaging line is an integrated filling, sealing and cartoning solution specially designed for drip bag coffee and steep tea bags with hang tags. Running at stable speed of 80 bags per minute, this complete line equips standard robotic pick & place system and automatic box cartoning machine. It supports flexible combination of 2 sets or more SDP-50 main drip bag filling sealing machines to realize ultra-high throughput, perfectly solving large-batch packaging demands for commercial coffee roasters, tea processing factories and food packaging manufacturers across USA, Europe, Russia, Southeast Asia, Australia and global markets.
SDP-50 Drip Bag Coffee | Tea Bag Filling Machine with Automatic Cartoning Line | 80 Bags/Min #drip bag coffee packing machine, #drip coffee bag filling machine, #tea bag with tag packing machine, #drip bag filling sealing machine, #automatic cartoning machine, #robotic pick and place system, #coffee filter bag packaging line, #high capacity coffee packaging machine, #80 bags per minute packaging machine, #drip coffee production line, #tea bag packaging line, #automated coffee factory equipment, #drip bag coffee machinery, #packaging machinery for coffee, #filter drip bag machine

Full operation running video: https://www.youtube.com/watch?v=hYiGgfl5OaU&t=20s

Core Advantages

#Advantages of SDP-50 Drip Coffee Bag Line

✅ Max 80 bags/min stable output, continuous 24h industrial operation

✅ Expandable modular design: connect 2 or multiple main drip bag filling machines for super high capacity

✅ Integrated Delta robotic pick & place system, high precision bag sorting & feeding

✅ Full automatic cartoning machine: auto box opening, bag loading, box sealing

✅ All contact parts food-grade stainless steel, comply with food hygiene standards

✅ PLC + touch screen intelligent control, easy parameter adjustment & fault alarm

✅ Compatible with drip coffee filter bags, tagged herbal tea bags, broken tea sachets

✅ One-stop turnkey packaging line, no extra manual transferring between processes

✅ Low failure rate, easy maintenance, reduce labor cost by 70%+

Application Scope

• Packing Materials: Drip filter coffee bags with hang tag, steep tea bags with string & tag, herbal tea sachets, small granule tea bags

• Target Customers: Medium & large coffee roasting factories, tea processing plants, food packaging co-packers, private label beverage manufacturers, global food industrial investors

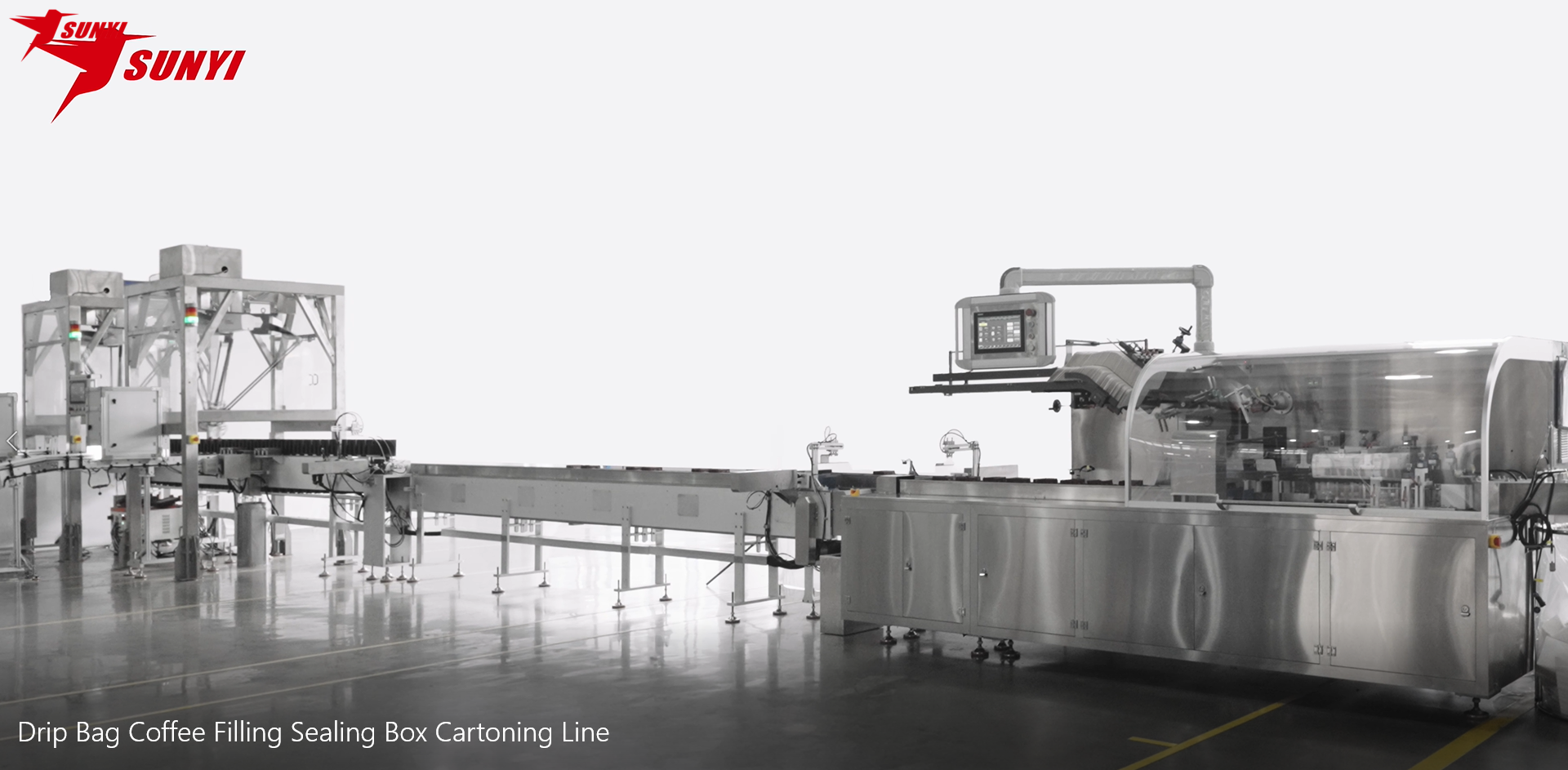

Full Line Composition

• SDP-50 Main Drip Bag Filling & Sealing Machine (expandable to 2+ units)

• Finished Bag Conveyor Transport System

• Robotic Pick & Place Delta Robot Station

• Automatic Box Cartoning Machine (auto open, load, seal cartons)

• Electrical Control Cabinet & Touch Screen Operation Panel

Standard Technical Parameters

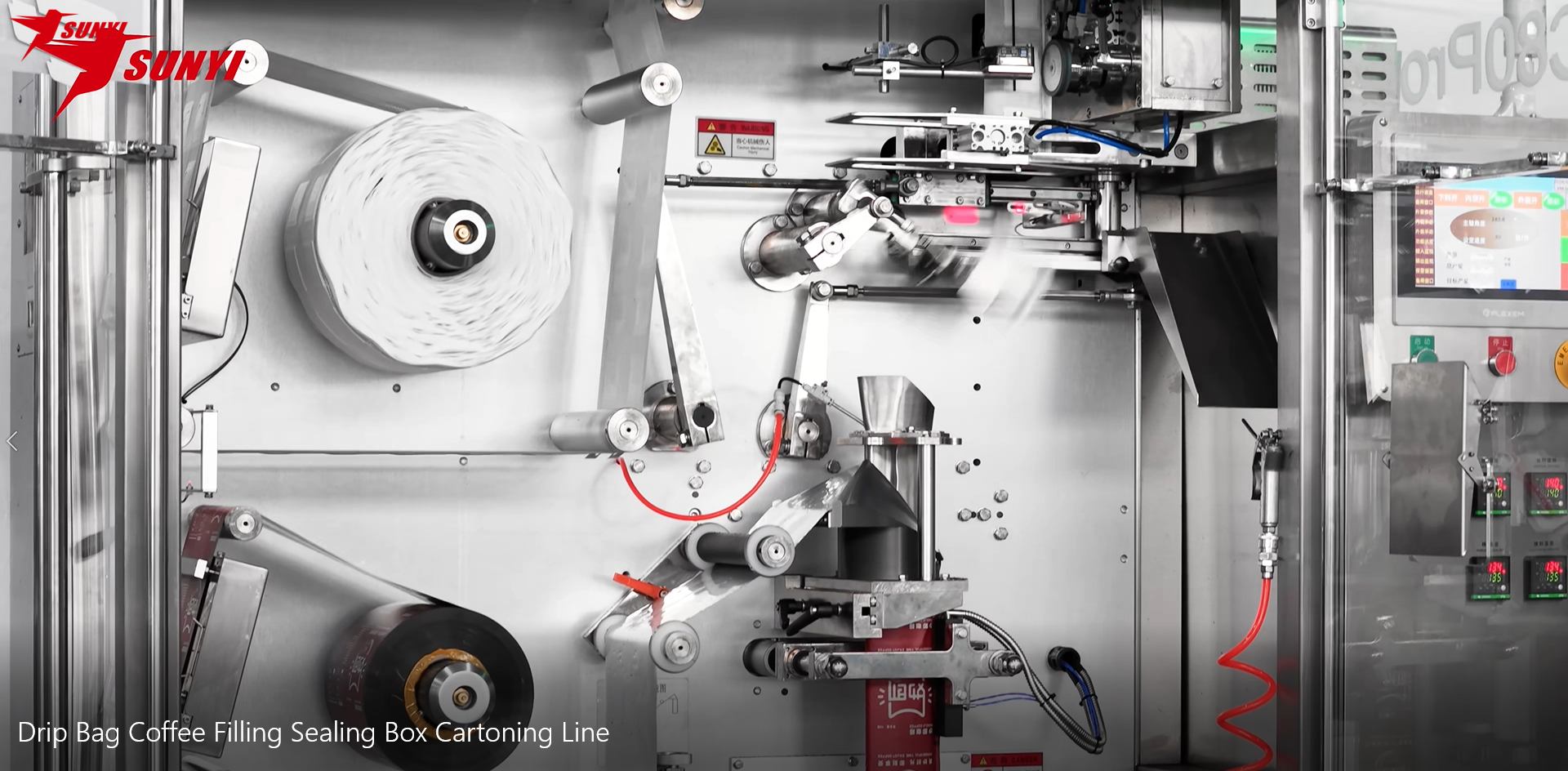

Workstation 1: SDP-50 Main Filling & Sealing Unit (Inner Bag Forming, Filling, Sealing & Tag Attaching)

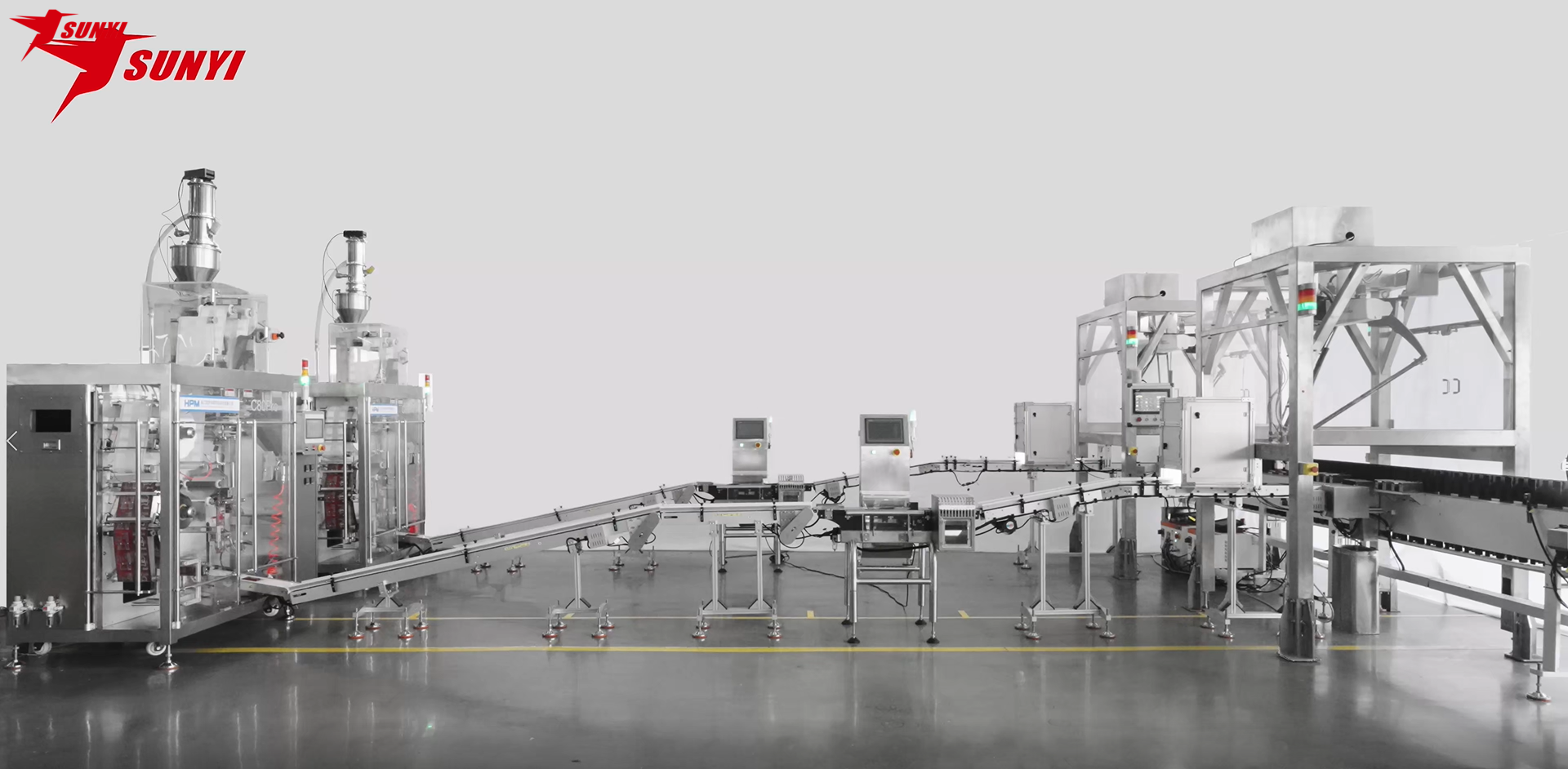

#Multi-Units Parallel High Capacity Solution

SDP-50 drip bag coffee filling sealing machine workstation, automatic filter bag forming, coffee powder dosing, ultrasonic sealing and hang tag threading station

Description: Core host station completes all inner bag procedures: filter film unwinding, automatic bag molding, precise volumetric filling of coffee/tea powder, ultrasonic edge sealing, hang tag & string attaching, finished bag cutting and discharging. Stable 80 bags/min output, adjustable bag size and filling weight for different coffee & tea formulas. Modular structure allows parallel connection of multiple units to expand total production capacity.

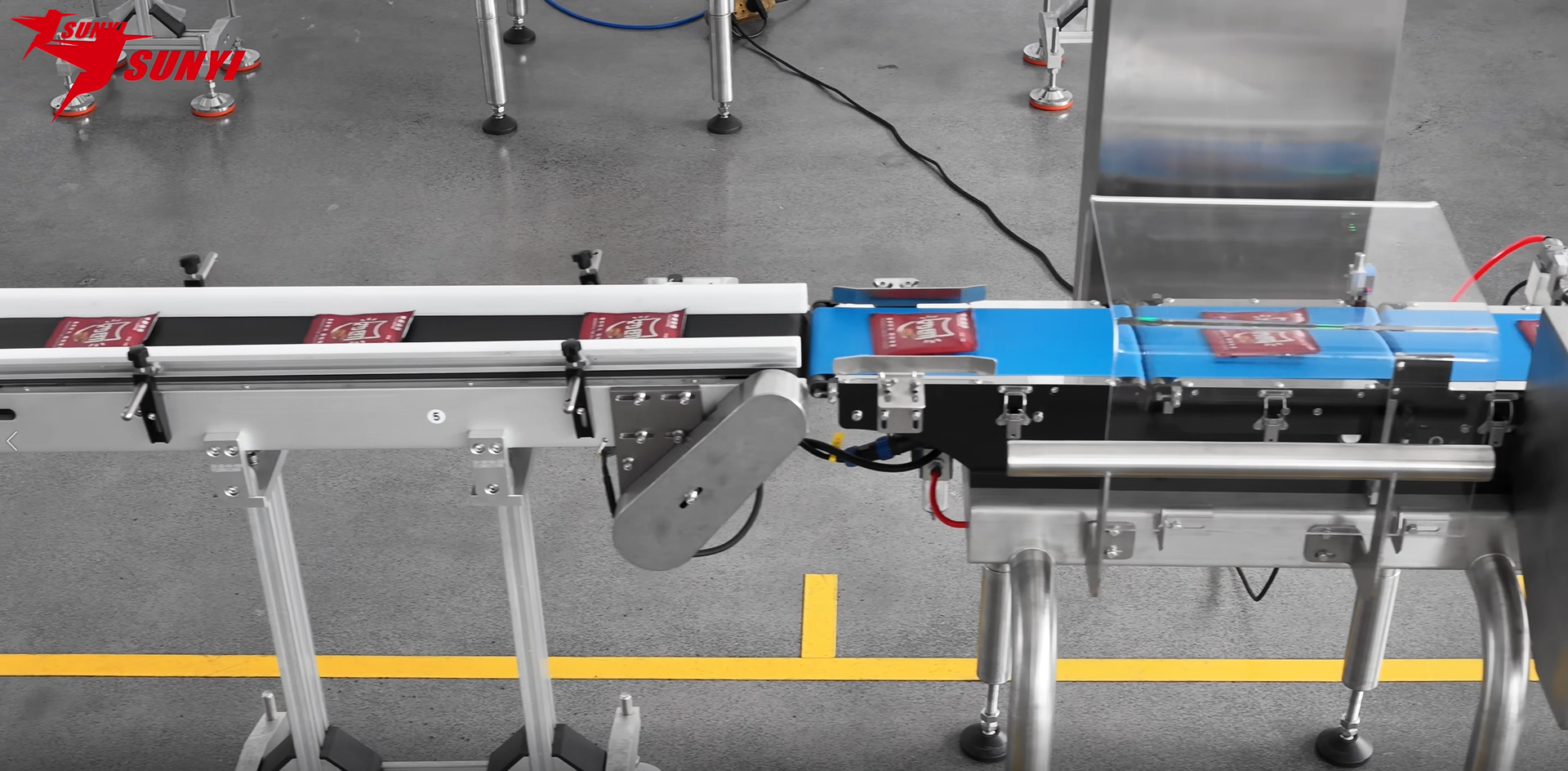

Workstation 2: Finished Bag Conveyor Transport Line

Automatic conveyor for finished drip coffee bags, buffer transport station linking filler and robotic cartoning system

Description: Buffer conveyor collects sealed drip bags from main machine, evenly arranges bags with steady speed control, delivers finished products to robot picking area without stacking or bag damage. Equipped with counting sensor to record total production quantity, seamless connection between upstream filling machine and downstream robotic system.

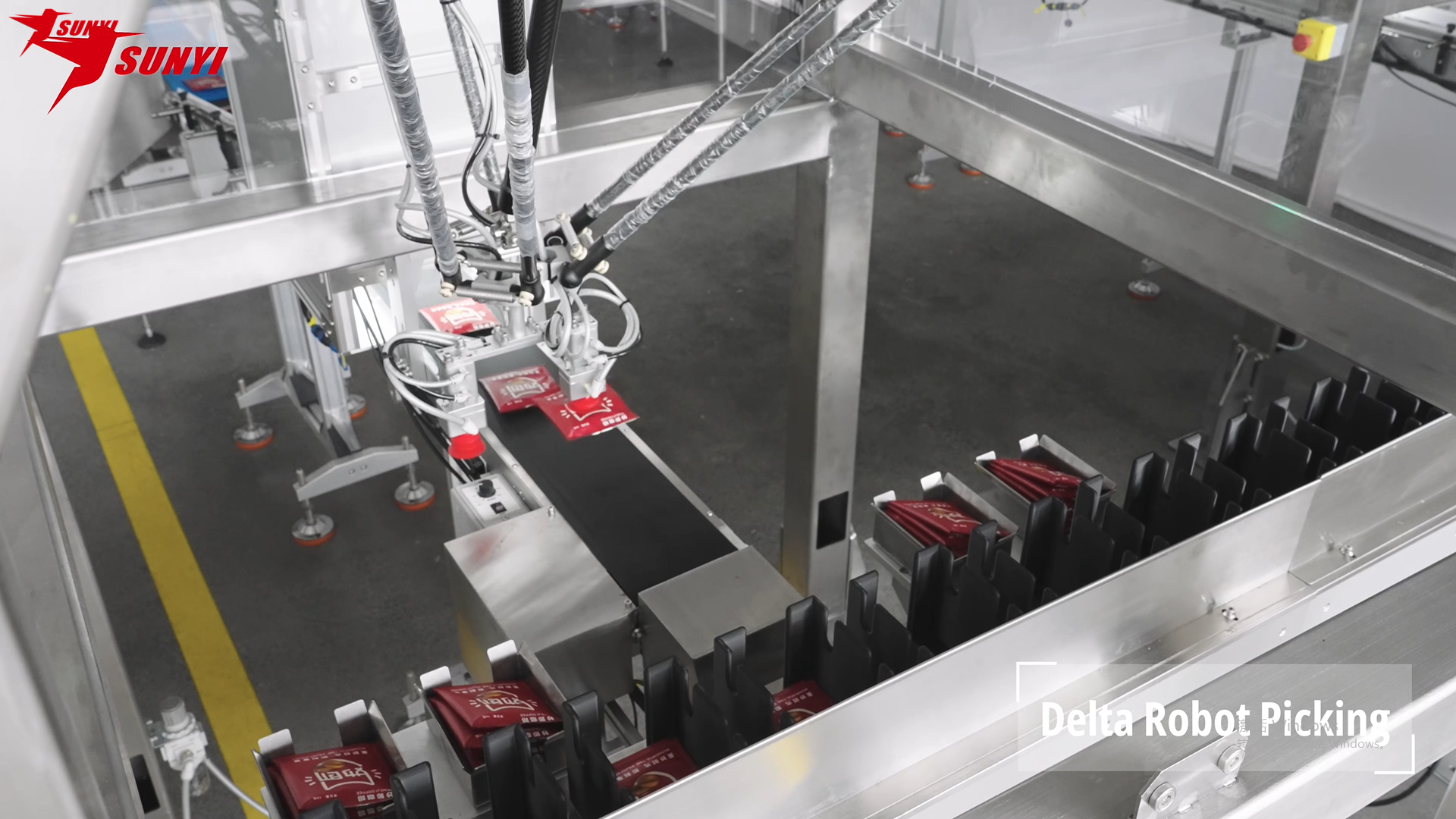

Workstation 3: Robotic Pick & Place Delta Robot Station (Core P&P System)

#Robotic Pick & Place Cartoning System Introduction

High speed delta robotic pick and place system for drip coffee bags, vision guided robot cartoning workstation

Description: High-speed 4-axis Delta parallel robot with vacuum suction gripper, matches 80 bags/min production speed. Optional industrial vision camera realizes automatic bag positioning, accurately picks single drip bag and steadily places into empty cartons. Fast response, low noise, long service life, replace manual bag feeding for cartoning and eliminate human error.

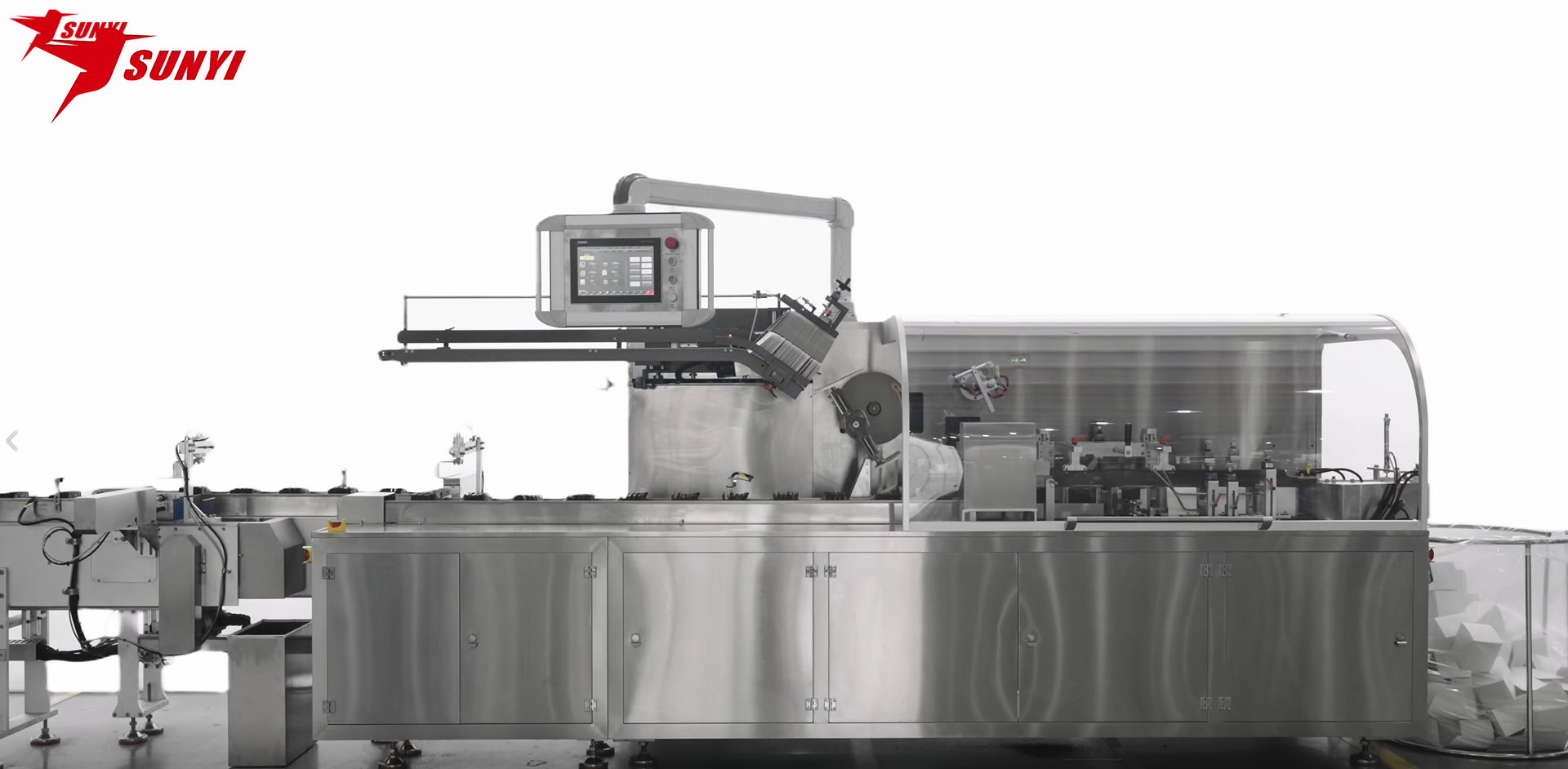

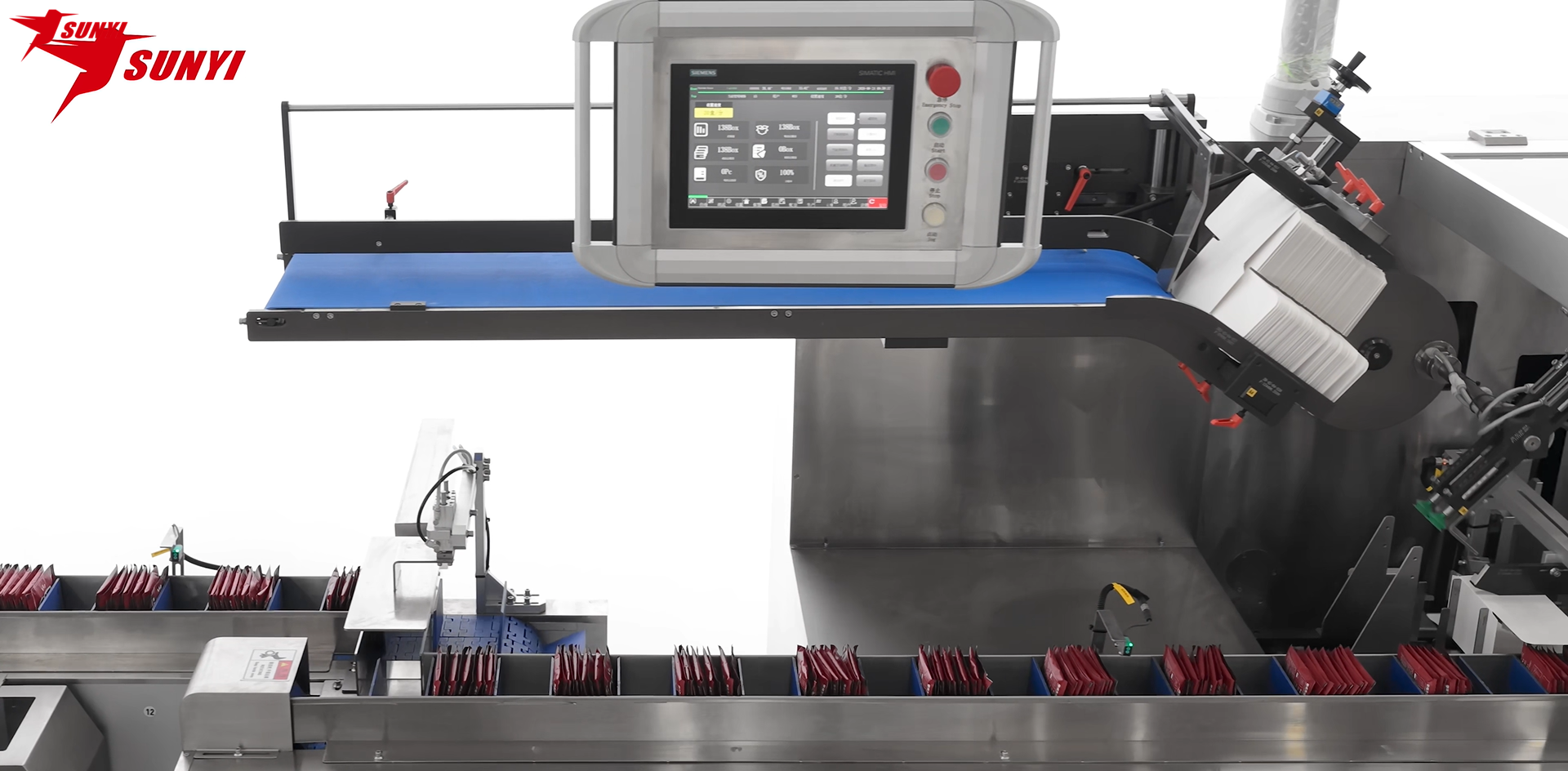

Workstation 4: Automatic Box Cartoning Machine

Full automatic cartoning machine for drip coffee tea bags, auto carton opening, loading and sealing workstation

Description: Integrated cartoning unit realizes full automatic carton unfolding, carton positioning, robot bag loading, carton flap folding and hot melt glue sealing. Support customization of carton length, width and height, adapt to small retail boxes for single or multi-pack drip coffee bags. Independent frequency conversion control, easy size switch without complicated mold replacement.

Workstation 5: Central PLC Touch Screen Control Cabinet

PLC touch screen control panel for SDP-50 drip bag packaging line, full line intelligent operation station

Description: Centralized control system for the entire packaging line, single touch screen adjusts filling speed, robot picking frequency, cartoning speed and sealing temperature. Built-in fault self-diagnosis, real-time production data display, Chinese/English/Spanish multi-language interface, simple operation for overseas workers, reduce professional operation training cost.

If you need high-efficiency automated drip coffee & tagged tea bag packaging line to boost production capacity, contact us for customized layout drawing, factory test report, price quotation and free machine operation video. We provide global after-sales service and technical support for all overseas clients.

Contact:

Email: mike@sunyimachine.com

WhatsApp/WeChat: +86 133-8216-2325

FAQ：

Q: Can SDP-50 machine connect multiple filling machines together?

A: Yes, the SDP-50 packaging line supports combination of 2 units or more drip bag filling sealing machines to achieve ultra-high production capacity for large coffee factories.

Q: What is the running speed of this drip bag coffee packing line?

A: Single SDP-50 main machine reaches stable 80 bags per minute, matched with robotic cartoning system for synchronous full automation.
