Automatic Powder Cap Filling & Sealing Packaging Machine | High-Speed Dosing & Capping Solution

This machine is specifically designed to fill and seal various functional powders into dual-chamber dispensing caps. It enables the "freshly brewed / separated water and powder" beverage concept, preventing ingredient degradation and solving the issue of overnight/pre-mixed tea degradation.
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • SKP-2

  • SUNYI

  • HS 842230,9090

Product Description

This machine is specifically designed to fill and seal various functional powders into dual-chamber dispensing caps. It enables the "freshly brewed / separated water and powder" beverage concept, preventing ingredient degradation and solving the issue of overnight/pre-mixed tea degradation.


Basic Farameters

Certificate

CE, SGS , ISO 9001,

The packed object

Tea Powder, Powder-dispensing caps can be filled with various powders, including freeze-dried tea powder, freeze-dried coffee powder, blended coffee powder, nutritional supplement powder, anthocyanin powder, flower tea powder, botanical extracts, herbal powder, matcha powder, etc.

Capacity

70-100 caps /per minute

Filling system

Servo-controlled piston filling pump

Filling accuracy

± 5%

Filling range

1-5g

Sealing

pre-cut lids/ sealing film in roll/capping

Balance Tank Capacity

20L

Power

7.5  KW

Power Supply

3-Phase 380V 50HZ/60HZ

Compressed air pressure

≥0.7Mpa

Compressed Air Consumption

0.7 mˆ3/minute

Machine Weight

3200kgs

Machine Dimension

5241mm(L)*2047mm(W)*2800mm(H)

Equipment Details

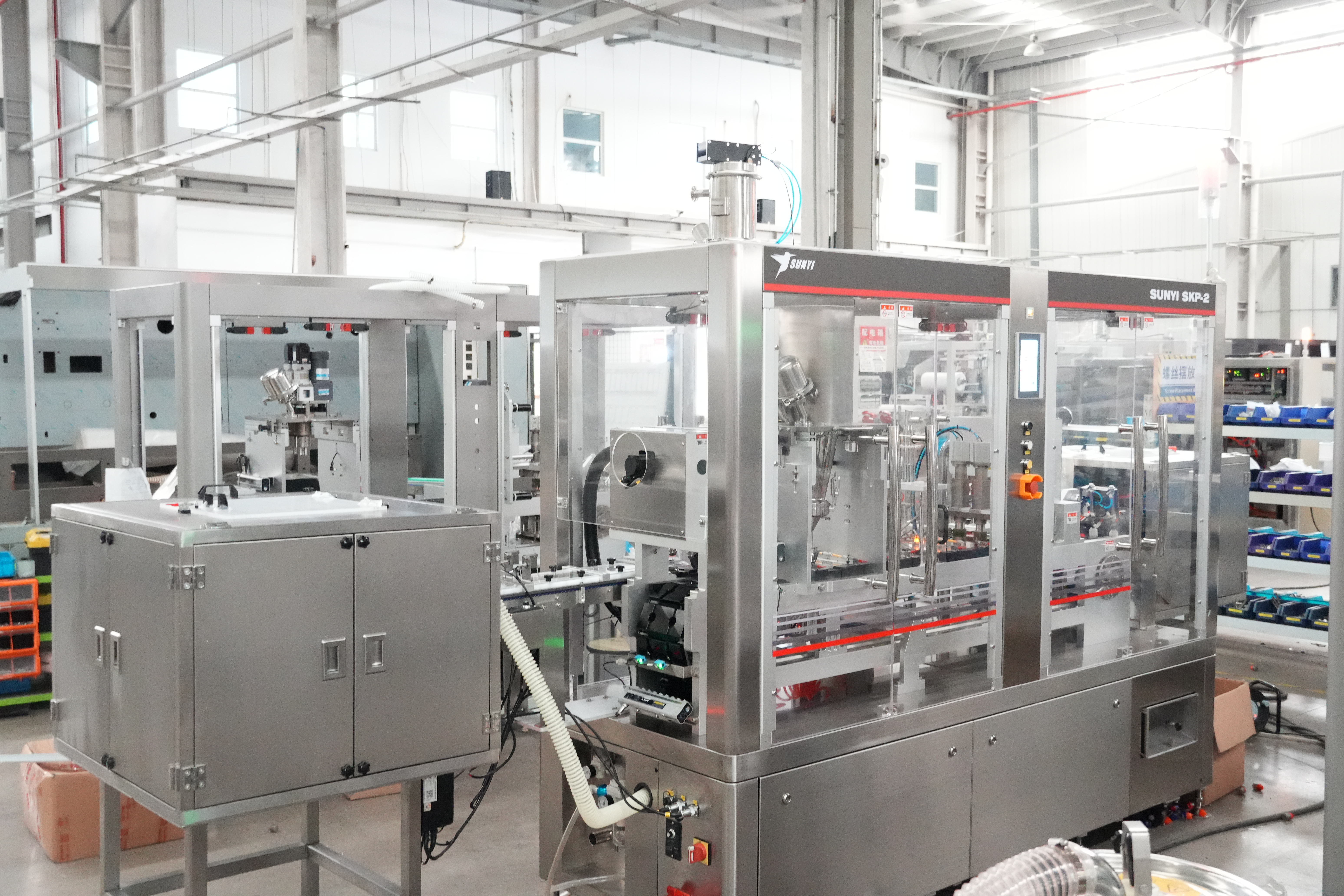

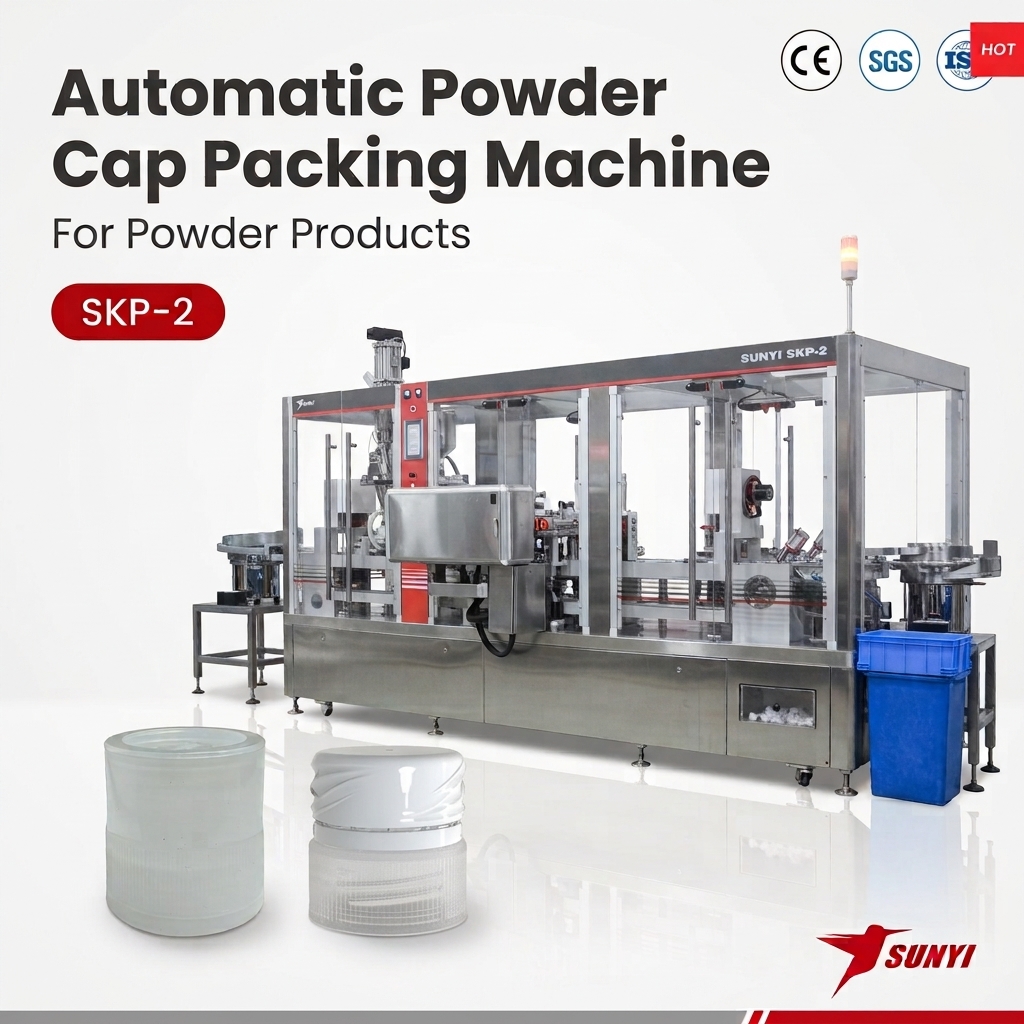

AUTOMATIC POWDER CAP FILLING AND SEALING MACHINE.png

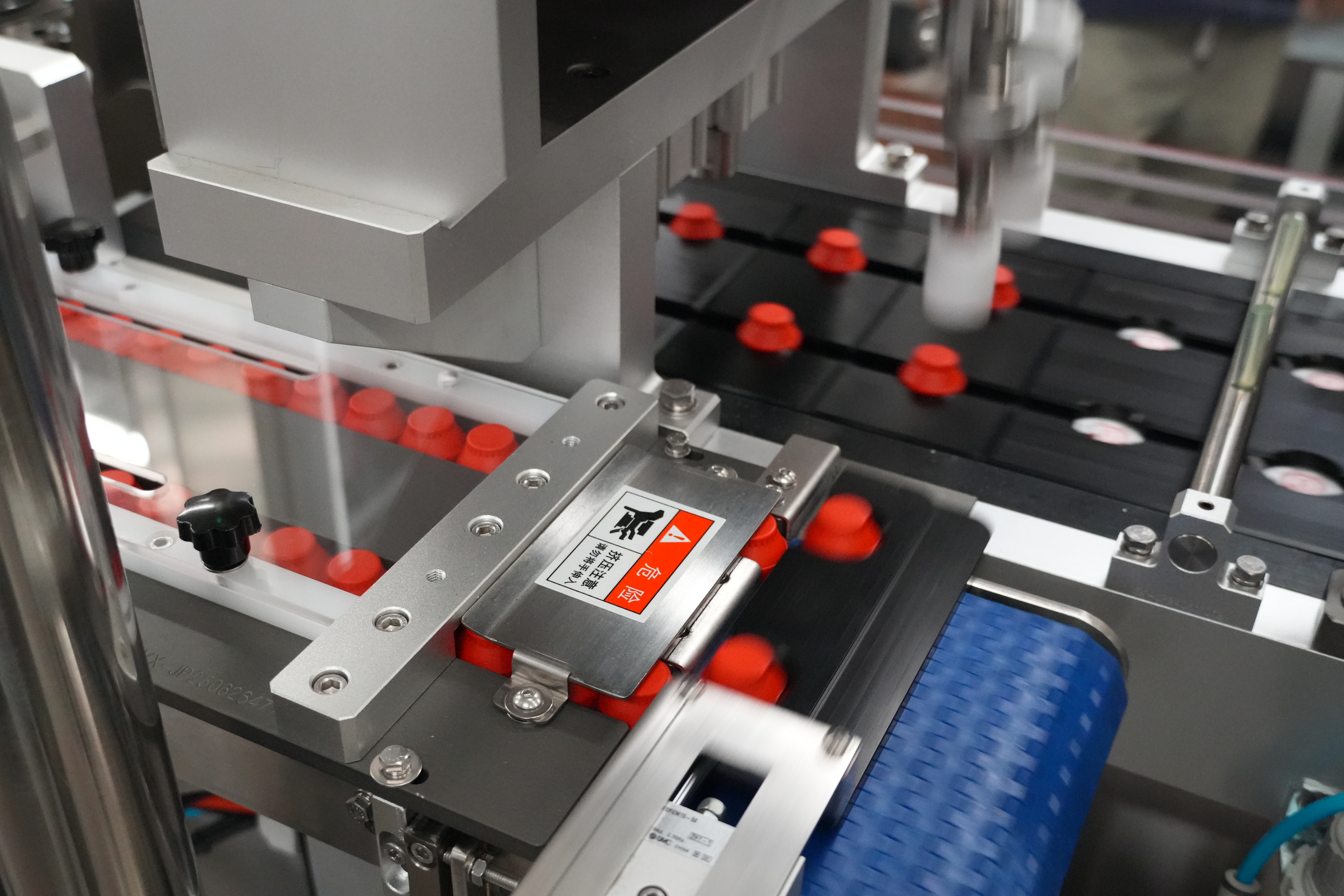

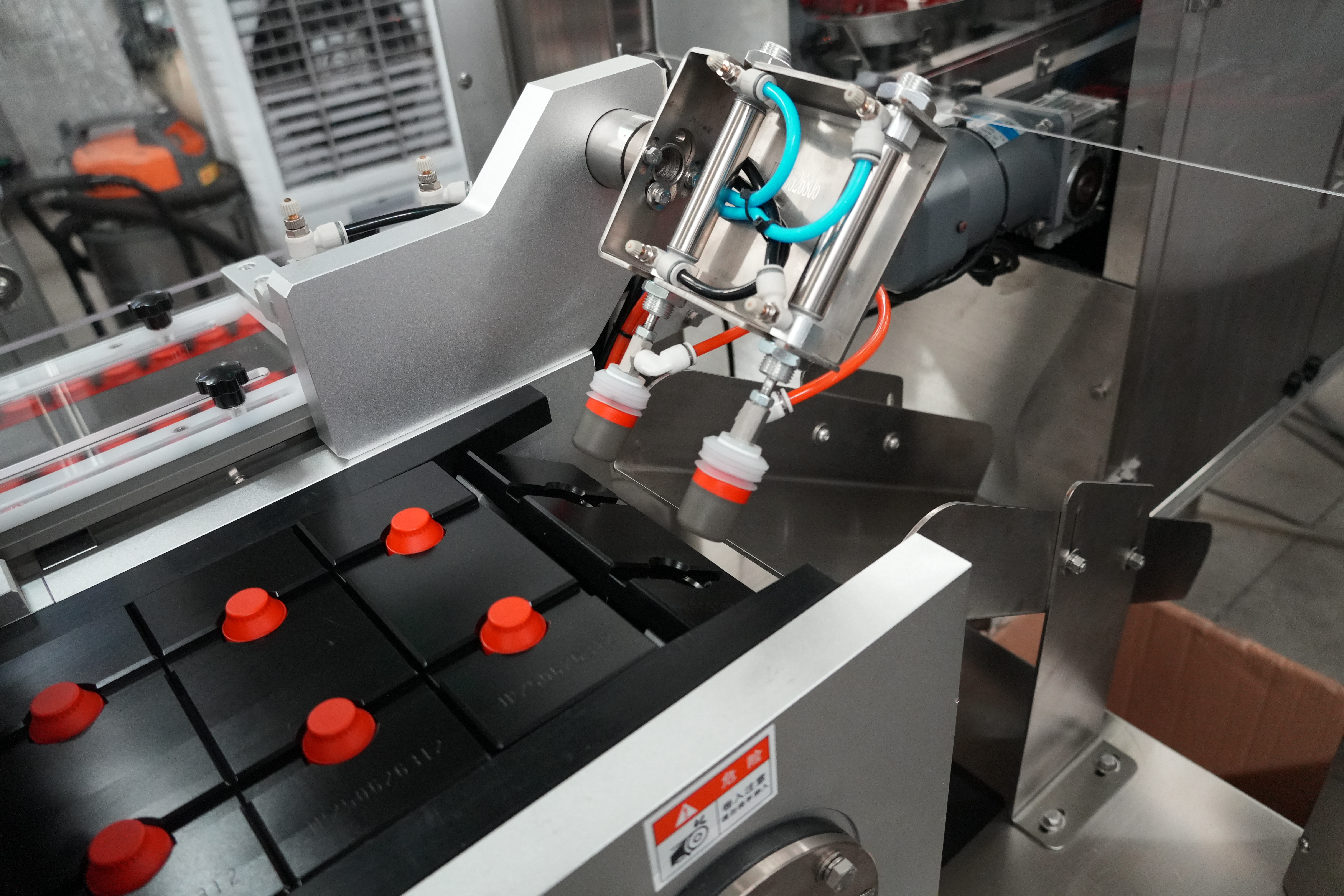

DETAILS DISPLAY

DETAILS DISPLAY.png


1.High Speed & Accuracy: Equipped with a servo-controlled piston filling pump, ensuring high accuracy (±5%) and stable operation.

2.Full Automation: Integrates automatic cap feeding, servo filling, sealing, online weighing, and finished product output.

3.Easy Operation & Maintenance: Controlled via PLC and interactive touch screen, designed for easy cleaning and routine maintenance.

4.Sanitary Construction: Built with Stainless Steel 304 to meet strict hygiene standards.

5.Optional Features & Upgrades:

Nitrogen flushing system or vacuum system

Precise temperature control system

Cap quality control system

Dust removal system

WIDE APPLICATION


POWDER CAP APPLICATIONS.png

Applicable Materials:

Freeze-dried tea powder, freeze-dried coffee powder, blended coffee powder

Probiotics, Vitamin C, and nutritional supplement powders

Matcha powder, herbal tea powder, botanical extracts, herbal powders

Anthocyanin powder and other functional powders

Compatible Cap Materials: PP, PE, PET, and other materials.


Contact Jessie.png

Company Overview

SUNYI - Intelligent Packaging Solution Provider

Founded in 2011 and headquartered in Kunshan, Jiangsu, China, Sunyi Intelligent Technology Group Co., Ltd. specializes in the R&D, manufacturing, and service of intelligent packaging equipment and automated packaging solutions.

With over 10 years of industry experience, SUNYI provides complete packaging solutions for coffee, tea, dairy products, sauces, nutritional supplements, solid beverages, daily chemicals, pet food, medical products, and other FMCG industries. Our products include automatic filling and sealing machines, coffee capsule filling machines, liquid filling machines, powder filling machines, cartoning machines, and turnkey packaging lines.

Manufacturing Capability

SUNYI operates a 4,200㎡ manufacturing facility with 70 employees, including professional mechanical, electrical, and software engineers. We deliver customized solutions from single machines to complete automatic packaging lines.

Quality Control

SUNYI implements strict quality management based on ISO9001 standards, covering design, component inspection, assembly, testing, and FAT before shipment. Our equipment complies with international requirements with CE certification and Germany EPR compliance, ensuring stable performance, accurate filling, and reliable sealing.

R&D Innovation

Supported by a 30-member R&D team and 130+ patents, SUNYI continuously develops advanced packaging technologies integrating servo control, digital systems, robotics, and automation solutions.

With strong expertise in single-serve packaging, we provide professional coffee capsule filling and sealing solutions for Nespresso, K-Cup, Lavazza, Dolce Gusto, Caffitaly, and other capsule applications.

Global Service

SUNYI has supplied intelligent packaging solutions to customers in 80+ countries and regions. We provide customized design, installation support, remote debugging, technical training, and overseas after-sales service.

Competitive Advantages


Customization Capabilities


Certificates


Trade Show Participation & Customer Visits


Packaging & Shipping Specifications


Production Workflow

SHIPPING AND DELIVERY.jpg

Q1: What types of products is the SKP-2 Automatic Powder Cap Packing Machine designed for?

A: It is specifically engineered for dosing, filling, and sealing functional powder caps, fresh-locking caps, and dual-chamber dosing systems (such as those used for instant beverages, nutritional supplements, and functional drinks).

Q2: What is the production capacity and configuration of this machine?

A: The SKP-2 operates as a high-efficiency 2-lane automated system, offering a stable and continuous output tailored for medium-to-high-volume manufacturing needs while maintaining precise quality control across both lanes.

Q3: How accurate is the powder dosing system?

A: The machine utilizes a high-precision servo-driven auger/micro-dosing mechanism with vacuum or anti-dust assist. This ensures tight fill tolerances, minimizes product giveaway, and prevents powder contamination on the cap sealing margins.

Q4: How does the machine ensure seal integrity and fresh-locking performance?

A: It features precise temperature control and tailored sealing heads that apply uniform pressure to achieve a leak-proof, moisture-barrier seal, preserving the active ingredients in the powder cap for long shelf-life stability.

Q5: What international quality and safety certifications does the machine hold?

A: The unit is constructed with food-grade stainless steel (SUS304/SUS316 contact parts) and fully complies with CE, SGS, and ISO quality and safety standards.

Q6: Can the machine handle different cap shapes or sizes?

A: Yes, the SKP-2 features a modular mold design. Changing components or adjusting parameter settings via the touchscreen PLC interface allows smooth adaptation to various dosing cap specifications and designs.
