Primary packaging speeds frequently outpace manual secondary packaging capabilities. This creates a severe bottleneck in high-volume food and beverage manufacturing. Artificial production ceilings emerge when boxing stations cannot keep up with primary fillers. Inefficient cartoning introduces heavy operational burdens across the plant floor. Manufacturers face excessive labor dependencies and high carton reject rates. Repetitive strain injuries plague manual operators performing continuous folding and tucking motions. Scaling SKU variations becomes nearly impossible without automated solutions. Transitioning from manual or semi-automatic processes to fully automated cartoning is a strategic necessity. This guide provides an evidence-based framework for facility upgrades. You will learn how to specify, evaluate, and integrate the right equipment. We focus on matching machine capabilities to your exact production realities. You must avoid over-engineering or under-speccing your packaging line.
Kinematic Alignment: Matching machine motion (intermittent vs. continuous) to primary packaging output is the most critical factor in preventing line bottlenecks.
Changeover Economics: For multi-SKU food and coffee lines, toolless, servo-driven changeovers are mandatory to maintain high Overall Equipment Effectiveness (OEE) and versatility.
Specialized Handling: Coffee capsules cartoning requires highly specific infeed mechanisms to prevent product deformation and ensure precise layer configurations.
Supplier Accountability: A successful deployment relies heavily on rigorous Factory Acceptance Testing (FAT) and the local aftermarket support infrastructure of your cartoning machine supplier.
Conduct a rigorous time-study on your current secondary packaging lines before looking at new equipment. Track the exact labor hours dedicated to erecting, loading, and sealing cartons. Measure the frequency of upstream versus downstream speed mismatches. A primary filler or bagging machine often outpaces the manual boxing station. This mismatch forces operators to pause primary equipment. Pausing primary equipment destroys overall line throughput and efficiency. You will often see accumulation tables overflowing because the manual pack-out station simply cannot keep up with a filler running at 120 units per minute.
Manual loading at high speeds introduces severe ergonomic risks. Operators face repetitive motion injuries from continuous physical exertion, specifically carpal tunnel syndrome and lower back strain from bending over pack tables. These injuries lead to compliance issues, high turnover, and increased medical claims. Identifying these specific bottlenecks justifies the transition to automated solutions. You must quantify the exact labor hours wasted on manual boxing and the exact volume of product lost to manual handling errors.
Define realistic Overall Equipment Effectiveness (OEE) targets for secondary packaging. A world-class OEE target typically hovers around 85% for packaging lines. Establish strict acceptable thresholds for carton reject rates. Monitor glue waste, specifically hot melt stringing, and track every minute of machine downtime. You need to know exactly how many cartons fail to erect properly due to warped blanks or vacuum cup failures.
Calculate the required cartons-per-minute (CPM) carefully. Factor in surge capacities and future growth rather than just current average output. If your primary line averages 100 CPM, specify equipment capable of handling 120 to 130 CPM. This 20% to 30% extra capacity absorbs micro-stops and upstream product surges. When the primary filler clears a jam and sends a surge of accumulated product down the conveyor, the cartoner must run faster to clear the backlog. Failing to account for surge capacity guarantees future bottlenecks. Baseline metrics provide a measurable standard for evaluating new equipment performance during site acceptance testing.
Horizontal cartoners utilize end-load mechanics for product insertion. Products slide horizontally into the open end of a formed carton. This remains the industry standard for solid, stable food items. Flow-wrapped baked goods, frozen pizzas, and blister packs run perfectly on horizontal systems. The machine pulls a flat blank from the magazine, erects it using rotary vacuum cups, and places it into flighted conveyor chains. A barrel cam loader then pushes the product smoothly into the open carton as it moves down the line. They excel in high-speed continuous production runs.

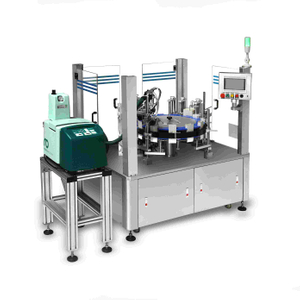

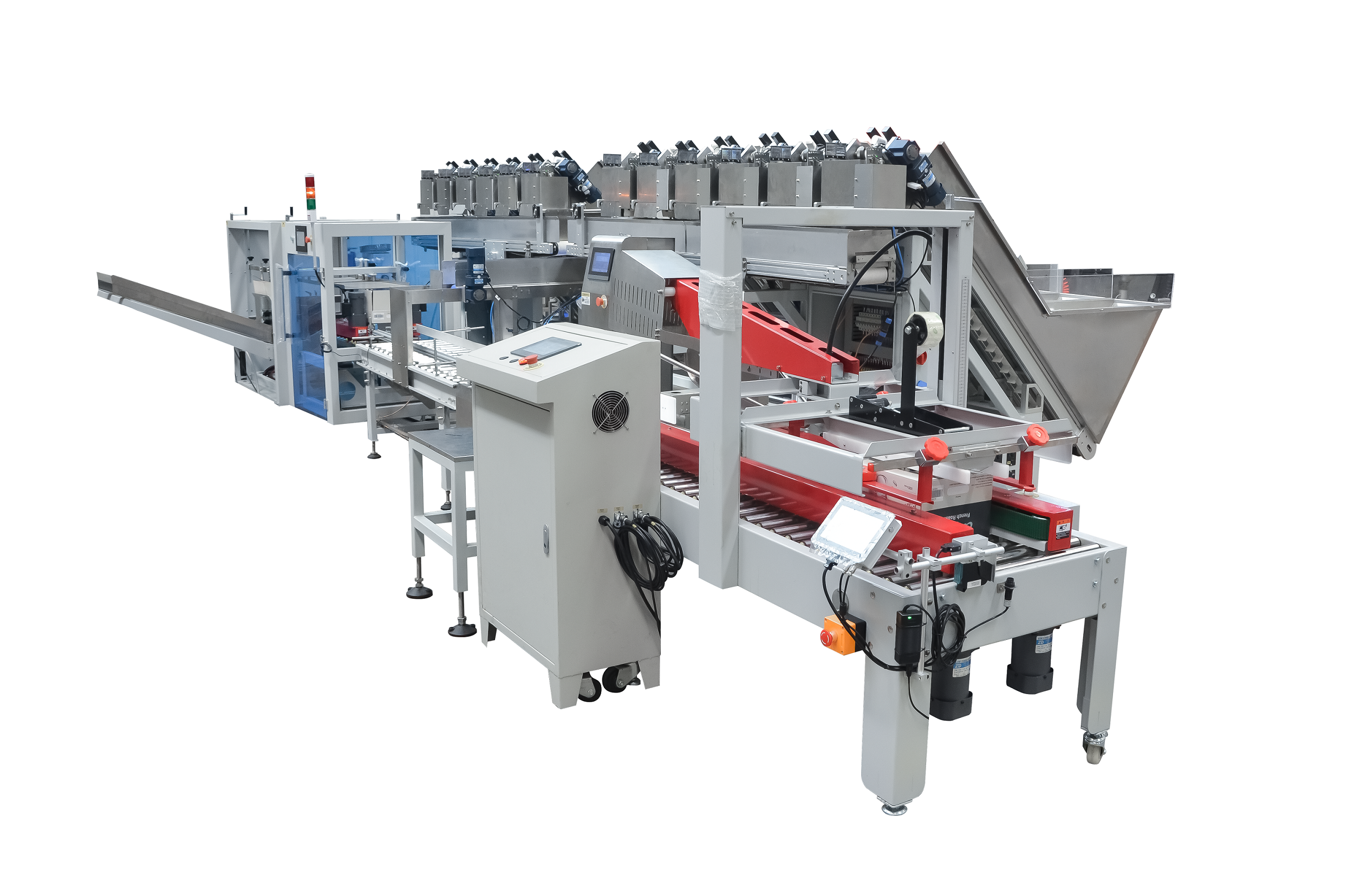

Vertical cartoners rely on top-load mechanics instead. Products drop or are placed down into an open, upright carton. Use vertical systems for gravity-fed products or loose items. Wrapped candies, granular products in pouches, and loose hardware fit vertical loading profiles perfectly. Delicate items requiring careful, precise placement also benefit from vertical loading. The choice depends entirely on product orientation, stability during transport, and how the primary packaging presents the item to the secondary line.
Intermittent motion uses a precise stop-and-start mechanism. The carton pauses momentarily for the product insertion phase. This is the optimal choice for complex loading requirements. Multi-component kits, multi-layer stacking, or products requiring a leaflet insertion often require this brief pause. Intermittent machines typically utilize Geneva drives or servo indexing to control the stop-and-start motion. It suits moderate production speeds, typically running under 150 CPM.
Continuous motion relies on non-stop rotary or linear mechanics. The carton and product move together simultaneously during insertion. The loading pushers travel alongside the carton, gently sliding the product inside without ever stopping the forward momentum. Continuous motion becomes mathematically necessary over intermittent motion at higher speeds. Typically, 150 to 300+ CPM demands a continuous automatic cartoning machine to prevent violent mechanical jarring that would otherwise destroy the machine components and the product.
Technical Feature | Intermittent Motion Systems | Continuous Motion Systems |
|---|---|---|
Operational Speed Range | Up to 150 Cartons Per Minute (CPM) | 150 to 300+ Cartons Per Minute (CPM) |
Product Loading Mechanism | Stop-and-start stationary insertion | Simultaneous moving parallel insertion |
Ideal Packaging Application | Multi-component kits, complex stacking | High-speed single item loading |
Mechanical Wear Profile | Higher due to constant stopping/starting | Lower due to smooth continuous operation |
Footprint Requirements | Generally smaller and more compact | Requires longer linear floor space |

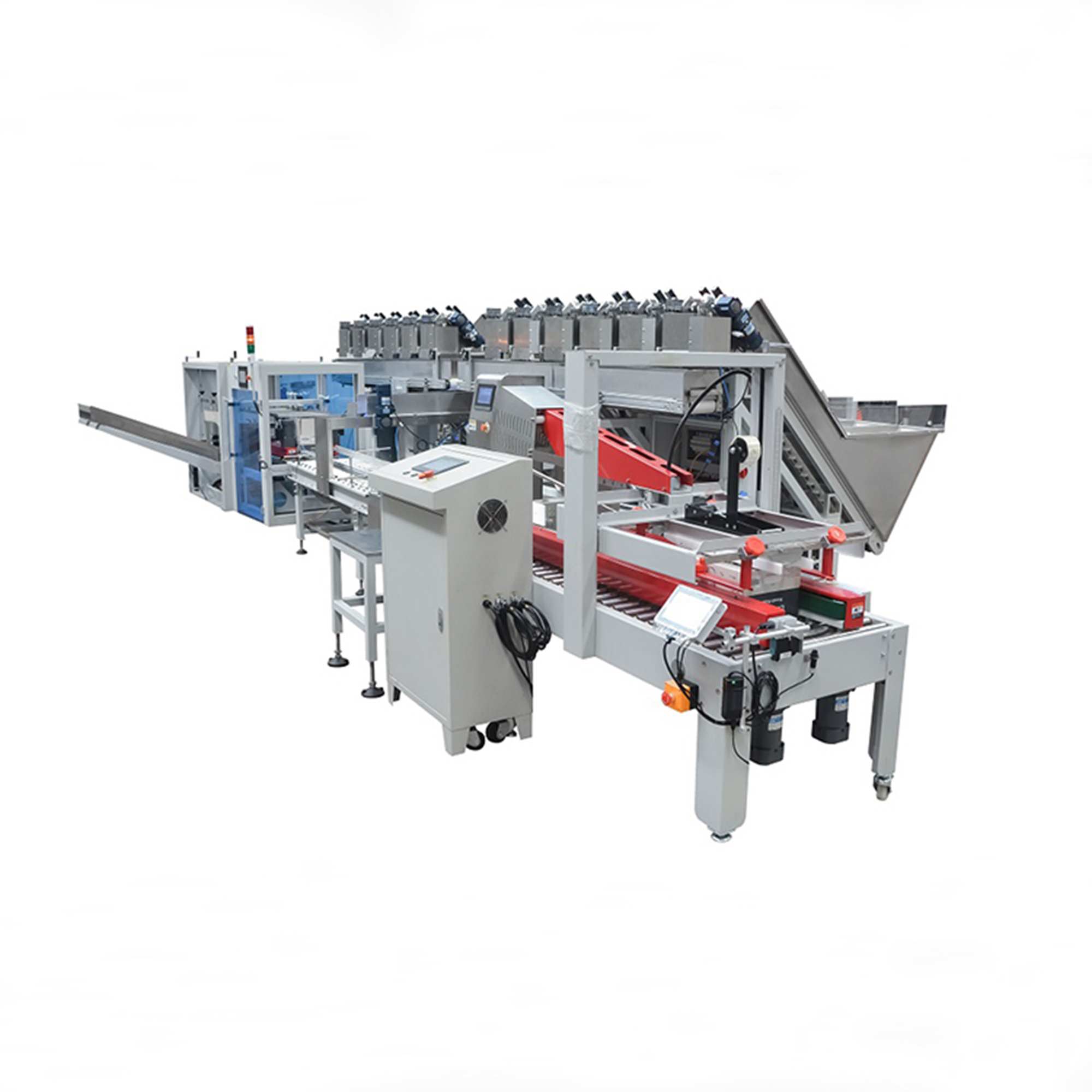

Handling delicate aluminum or compostable pods presents unique engineering challenges. The machine must grip and load pods without scuffing the surface. Crushing the fragile flanges ruins the seal and destroys the product before it ever reaches the consumer. Coffee capsules cartoning requires highly specific orientation controls. You cannot simply dump aluminum pods into a box; they will dent and fail to fit into the brewing machine.
Complex layer configurations are standard in the coffee industry. You often need nested, stacked, or interleaved pod arrangements inside a single box. For example, a standard 10-pack sleeve often requires five pods facing up and five pods facing down to maximize space. Precision infeed mechanisms ensure every capsule drops into its exact designated slot. Vacuum grippers and custom-tooled star wheels manage this delicate orientation process, ensuring the flanges interlock perfectly without applying crushing pressure.
Cartoners must condition and settle flexible bags before loading. Bags coming from Vertical Form Fill Seal (VFFS) machines contain trapped air. Vacuum-packed coffee beans or snacks require settling conveyors before insertion. This flattens the profile and prevents bulky bags from causing flap jams when the carton attempts to close. Overhead sweepers or gentle compression belts press the air out of the bag as it travels toward the loading station.
High-speed flow-wrapped items demand specialized collation systems. These systems group and stack the items rapidly on the conveyor. They must achieve this without crushing the primary seal or breaking the product inside. Timing screws and smart belts sequence these flexible formats into rigid carton flights. If you are packaging granola bars, the smart belts will gap the bars perfectly, allowing a robotic arm or a mechanical pusher to group them into counts of six before sliding them into the carton.
Synchronization between primary and secondary equipment is absolutely necessary. An upstream coffee capsule packaging machine must communicate seamlessly with the downstream cartoner. If the filler stops, the cartoner must pause. If the cartoner jams, the filler must either pause or divert product to an accumulation zone. Infeed solutions for Nespresso capsule cartoning often utilize robotic pick-and-place systems. Delta robots offer more flexibility than traditional mechanical collation tracks, allowing for rapid recipe changes between different pod counts.
A cup cartoning machine requires similar precision to avoid tipping the cups during transport. Accumulation tools and buffer zones are strictly necessary between these machines. Alpine conveyors or bi-directional accumulation tables manage micro-stops on the cartoner without forcing the primary filler to shut down. Shutting down a primary filler often results in burned product, wasted film, or compromised seals, making accumulation zones a mandatory integration feature.
Mechanical pushers offer a rigid, highly reliable loading method. They work exceptionally well for durable, uniformly shaped items like blister packs or rigid bottles. Cam-driven pushers provide exact, repeatable motions that rarely fail under high-speed conditions. However, robotic loading provides flexible, gentle handling for fragile or oddly shaped products. Vision-guided Delta robots can pick up randomly oriented products from a moving belt and place them perfectly into the carton flights.
Mapping these specific handling features directly impacts your daily production outcomes. Gentle robotic loading reduces product damage and significantly lowers reject rates for delicate items like baked goods. Mechanical pushers provide higher speeds but risk damaging delicate primary packaging if a jam occurs. Choose the infeed system matching your product fragility and line speed. Do not force a mechanical pusher onto a fragile product line just to save on initial equipment complexity.
Manual hand-crank adjustments consume valuable production time during changeovers. Operators using wrenches and tape measures to adjust magazine widths and flight chains introduce massive human error. Automated, recipe-driven servo adjustments provide maximum versatility for multi-SKU lines. Operators simply select a recipe on the HMI, and the machine adjusts itself. Servos move the chains, guides, and plows to the exact millimeter required for the new carton size.
The time-to-run metric is a vital performance indicator. The time it takes to produce the first good carton matters most. It is more important than the mechanical changeover time itself. Servo-driven adjustments ensure the first carton out is perfectly formed. This eliminates the trial-and-error waste associated with manual mechanical adjustments. If you run five different carton sizes a day, toolless changeovers utilizing SIKO position indicators and servo motors will save hundreds of hours annually.
Machines exhibit different tolerances for various carton board grades. Running recycled paperboard presents distinct operational challenges. Recycled board tends to warp, bow, or create excessive dust compared to virgin materials like Solid Bleached Sulfate (SBS). This dust clogs vacuum cups and fouls optical sensors. You must specify heavy-duty vacuum generators and self-cleaning sensors if you plan to run recycled board.
Non-marring belts and precise flap folding mechanisms are essential features. They maintain a high-quality finish and perfect squareness for premium retail display. Rotary tuckers must engage the flaps without scratching the printed graphics. Essential inline inspection features protect your brand integrity. Barcode verification prevents mixed-SKU errors during packaging. Hot-melt glue detection sensors and open-flap rejection systems ensure only perfect cartons ship. If the Nordson glue gun misfires, the sensor detects the missing adhesive and kicks the unsealed carton into a reject bin automatically.
Modern automation standards demand advanced connectivity and data logging. IO-Link integration and smart sensors monitor critical components continuously during operation. They track pneumatic pressure drops and record servo torque spikes. If a bearing starts to fail, the servo motor must work harder to turn the shaft. The system detects this torque spike and flags it for maintenance.
Predictive maintenance alerts notify operators before a component actually fails. This proactive approach prevents catastrophic breakdowns and extends the equipment lifespan. Real-time data dashboards allow plant managers to monitor OEE remotely. Integrating these digital tools transforms maintenance from reactive to preventative. Maintenance teams can schedule bearing replacements during planned downtime rather than fighting a broken shaft in the middle of a production run.
Evaluate the conceptual trade-offs between different machine architectures carefully. A mechanically complex machine driven by a single main motor, utilizing chains, sprockets, and complex gearboxes, requires intensive manual lubrication. It demands higher maintenance labor and experiences more wear over time. Chain stretch eventually causes timing issues between the carton flights and the product pushers, leading to jams.
A fully servo-driven cartoning machine offers higher uptime and precise control. It requires significantly less mechanical maintenance and fewer replacement parts. Each major function operates on its own independent servo motor, synchronized electronically by the PLC. Factor in utility consumption during your facility evaluation. Pneumatic air consumption requires robust, continuous compressor infrastructure. Fully electrical or servo-driven systems eliminate heavy reliance on plant air, reducing the load on your facility compressors and eliminating moisture-related pneumatic failures.
Address floor space constraints early in the facility planning phase. Evaluate the trade-offs between inline, right-angle, or custom layout configurations. Inline layouts offer straight product flow but require long, uninterrupted floor space. They are generally easier to maintain because operators can access both sides of the machine freely. Right-angle layouts save linear space but introduce complex product turning mechanisms that can jam if not calibrated perfectly.
Understand the physical and software handshake protocols required. These protocols integrate the cartoner seamlessly with upstream conveyors and downstream case packers. Proper layout planning prevents awkward material handling routes and optimizes operator access. You must leave adequate space for operators to load carton blanks into the magazine safely without interfering with forklift traffic. Safety guarding and light curtains must integrate into the layout without blocking maintenance access panels.
Software integration failures represent a major implementation risk for new lines. PLC communication errors between different machine brands cause frustrating startup delays. If your primary filler uses a Siemens PLC and your cartoner uses an Allen-Bradley PLC, the handshake protocols via EtherNet/IP or PROFINET must be mapped flawlessly. MES or ERP data silos prevent accurate production tracking and inventory management.
Develop a strict mitigation strategy for the entire transition period. Implement mandatory operator and maintenance training programs prior to installation. Ensure your team understands the HMI and troubleshooting protocols thoroughly. Early training prevents operator hesitation and reduces accidental machine faults during the critical ramp-up phase. Operators should know how to clear a jam, reset the servos, and home the machine without calling a maintenance technician for every minor stoppage.
Use a strict vetting checklist when selecting a cartoning machine supplier. Demand guaranteed service response times and verifiable reference checks. Look for specific experience in the food or beverage sector. A supplier who only builds machines for pharmaceutical bottles will struggle to design a gentle infeed for delicate baked goods. Local parts availability is non-negotiable for minimizing unplanned downtime.
Structure a rigorous Factory Acceptance Test (FAT) and Site Acceptance Test (SAT). Use your actual production materials, including your specific carton board and live product. Do not rely solely on the supplier optimized test cartons. Real-world testing exposes flaws before the machine reaches your facility. Run the machine at full speed for at least four hours during the FAT to ensure the glue systems do not overheat and the vacuum pumps do not lose suction under continuous load.
Audit your current primary packaging line speeds to determine the exact cartons-per-minute (CPM) required to eliminate bottlenecks.
Document your exact carton dimensions, board grades, and required flap-closure styles to share with potential equipment vendors.
Map out your facility floor space to identify whether an inline or right-angle machine layout best fits your production environment.
Request detailed technical proposals from a shortlisted group of vetted suppliers, emphasizing their local support and FAT protocols.
A: Intermittent machines use a mechanical stop-start motion, pausing the carton for product insertion. They handle complex, multi-item loading at speeds under 150 cartons per minute. Continuous machines keep the carton and product in constant motion during insertion. This constant motion is mathematically necessary for high-speed runs exceeding 150 to 300 cartons per minute.
A: Standard integration speeds vary widely based on lane configurations. A multi-lane capsule filler outputs anywhere from 200 to over 800 units per minute. Buffer systems and precise collation tracks are strictly necessary to match these primary filling speeds with the downstream loading cycles without causing jams.
A: Integration relies on specialized transitional mechanisms. Collation tracks, settling conveyors, and timing screws condition the product. They flatten flexible bags from a VFFS or group wrapped biscuits from a flow wrapper. This ensures the items slide smoothly into rigid cartons without crushing the primary seals.
A: Routine maintenance focuses on components handling physical manipulation. Operators must regularly inspect and replace worn vacuum cups used for carton erection. Rail lubrication ensures smooth transport. Frequent sensor calibration guarantees accurate product detection, prevents misloads, and stops machine jams before they damage the mechanical pushers.
A: Prioritize vendors with demonstrable experience in your specific product category. Emphasize domestic parts availability and rapid technical support response times. Ensure they allow rigorous Factory Acceptance Testing using your actual production materials rather than their own optimized test samples.
A: While the core frame might be similar, the infeed mechanisms differ drastically. Dedicated infeeds are required for highly specific formats like aluminum pods to prevent flange damage and ensure precise nesting. Switching between pods and standard food boxes on a single machine is highly impractical and causes massive downtime.
