Consumer demand for premium, single-serve wet and dry pet food has accelerated the adoption of rigid cup formats across the manufacturing sector. This shift places heavy throughput demands on secondary packaging lines. Misalignment between high-speed primary filling operations and legacy secondary packaging creates severe production bottlenecks. It drives up labor costs and increases the risk of product damage during the cartoning phase. To maintain Overall Equipment Effectiveness (OEE), protect margins, and balance sustainability with market appeal, operations leaders must evaluate cartoning equipment based on integration capabilities, sanitary design, advanced product handling, and format flexibility. Implementing a robust pet food cup cartoning system resolves these bottlenecks. It synchronizes line speeds and ensures product integrity from the filler discharge all the way to the palletizing station. You need equipment that handles thin-gauge plastics and foil lids without causing micro-leaks. Upgrading your secondary packaging line is mandatory if you want to hit daily production quotas without excessive manual intervention.
Throughput Synchronization: Effective pet food cup cartoning requires seamless speed matching and smart conveyance with upstream primary filling equipment to prevent micro-stops and product accumulation.
Sanitary Compliance: Equipment must meet strict washdown standards (IP65/IP69K) to handle the spill risks associated with wet pet food environments and protect pet health.
Format & Material Flexibility: Rapid, toolless changeovers are critical for facilities running multiple cup sizes, multipack configurations, and transitioning to sustainable packaging materials.
Vendor Accountability: Partnering with an experienced cartoning machine manufacturer ensures rigorous Factory Acceptance Testing (FAT), predictive maintenance integration, and reliable post-installation support.
Establishing baseline metrics before upgrading cartoning equipment ensures the investment aligns with actual production goals rather than just replacing old iron. Target Overall Equipment Effectiveness (OEE) remains the primary indicator of line health. Modern packaging lines should aim for an OEE exceeding 85%, factoring in availability, performance, and quality. Acceptable reject rates must be defined early in the project scope. Precision cartoning should keep carton waste below 0.5% during steady-state operations. Labor reallocation goals also drive equipment upgrades. Automating the cartoning process allows facility managers to move operators from repetitive, low-skill manual packing stations to high-value roles like quality assurance and machine optimization. Market appeal serves as the final metric. The finished carton must present flawlessly on the retail shelf, requiring perfect squareness and secure glue seals.
Target OEE: Maintain a minimum of 85% across all shifts.
Reject Rates: Keep carton and product waste strictly below 0.5%.
Labor Reallocation: Shift at least two operators per line to technical roles.
Market Appeal: Achieve 100% squareness on all retail-ready packaging.
The transition from traditional steel or aluminum cans to plastic, aluminum foil, or eco-friendly rigid cups fundamentally alters secondary packaging requirements. Cans possess high axial load strength, allowing them to bear the weight of stacked pallets without buckling. Rigid cups, particularly those made from thin-gauge plastics or sustainable molded fibers, lack this structural integrity. Consequently, the secondary carton must absorb all vertical compression forces during warehousing and transit. This dynamic requires precise carton forming. If a carton is glued out of square, its structural integrity diminishes rapidly, risking crushed cups and compromised lid seals. Pet food packaging lines must handle these cups gently, avoiding high-pressure accumulation that could deform the cup walls or puncture the flexible lidding film before they even enter the carton.
Retailers increasingly mandate shelf-ready packaging (SRP) to reduce stocking labor in the aisles. This requires cartons with precise perforations and clean tear lines. If the cartoning machine applies glue inconsistently or misaligns the carton blank during the forming stage, the perforations will not tear correctly, frustrating retail staff and damaging the brand's premium image on the shelf. Premiumization in the pet food sector also drives the need for complex multipack presentations. Consumers buying high-end wet food expect a flawless unboxing experience. The cartoner must group cups accurately, insert cardboard dividers if necessary to prevent label scuffing, and seal the flaps without leaving adhesive strings or scorch marks on the carton exterior. Achieving this requires highly controlled blank feeding and precise hot-melt adhesive application.
Pet food manufacturers face intense pressure to adopt sustainable packaging materials. This extends beyond the primary cup to the secondary carton. Processing recycled carton boards presents unique mechanical challenges for cartoning equipment. Recycled fibers are shorter and weaker than virgin fibers, making the board more prone to warping, jamming in the magazine, and generating excessive paper dust during the folding process. Dust accumulation can blind optical sensors and clog vacuum suction cups over a single shift. Adapting to these trends requires cartoning equipment equipped with high-capacity vacuum filtration, robust rotary feeders capable of handling warped blanks, and adjustable glue nozzles to ensure proper adhesion on highly porous recycled surfaces. The machine must reliably process these eco-friendly materials without increasing jam rates or maintenance downtime.
Selecting the correct loading orientation depends entirely on the product mix, floor space, and speed requirements. Top-load and end-load systems utilize different mechanical principles to achieve the final package. Understanding these differences prevents costly specification errors.
Feature | Top-Load Cartoners | End-Load Cartoners |
|---|---|---|
Loading Mechanism | Vertical drop or robotic pick-and-place. | Horizontal push via barrel cam or servo loader. |
Speed Capabilities | Moderate to high (depends on robot payload). | Very high (continuous motion applications). |
Best Application | Variety packs, fragile cups, footprint constraints. | High-speed single flavor multipacks. |
Changeover Complexity | Requires End-of-Arm Tooling (EOAT) swaps. | Requires adjusting pushers and flight chains. |
Footprint | Generally compact, vertical orientation. | Requires longer linear floor space. |
Top-load systems excel in environments requiring variety packs, where different flavors of pet food cups are collated and placed into a single carton. They also suit facilities with strict footprint limitations, as the vertical forming and loading process often requires less linear floor space. End-load systems are the standard for high-speed, continuous motion applications. Cups are grouped and pushed horizontally into an open carton sleeve. This method is highly efficient for standard multipacks but requires careful control of the pushers to avoid damaging the cup seals during the insertion phase.
The choice between continuous and intermittent motion dictates the maximum throughput and the mechanical complexity of the line. Intermittent motion machines index the carton chain, stopping briefly for the cups to be loaded. This pause allows for complex multipack grouping, leaflet insertion, and precise flap folding. It represents a cost-effective solution for lower throughputs, typically under 120 cartons per minute. However, stopping the carton flow can cause upstream bottlenecks if the primary filler operates at higher speeds. Continuous motion machines never stop the carton transport chain. The loading mechanism moves in tandem with the carton, sliding the cups in while both are in motion. This configuration is mandatory for high-volume lines where stopping would force the upstream filler to halt, causing unacceptable OEE losses.
Collating rigid cups before they enter the carton requires precise handling. Mechanical collation systems use star wheels, timing screws, and flighted chains to group cups. These systems are robust and cost-effective but lack flexibility. Changing cup diameters requires swapping heavy mechanical parts, which eats into production time. Evaluating delta robots for high-speed pick-and-place cup loading offers a highly flexible alternative. Delta robots track the incoming cups on a moving conveyor, pick them up using vacuum end-of-arm tooling, and place them directly into the carton flight. This approach eliminates mechanical friction against the cup walls, reducing the risk of label damage. It also allows for instant recipe changes via the HMI, as the robot simply alters its pick-and-place coordinates for different multipack configurations.
Transporting filled, sealed pet food cups from the filler to the cartoner requires more than a standard friction belt. Sloshing wet pet food can contaminate the sealing area if handled roughly. Integrating an automatic cartoning machine with linear servo tracks and intelligent routing systems prevents this. Independent Cart Technology (ICT) uses magnetic propulsion to move individual carriers along a track. This allows for asynchronous movement; cups can move quickly between stations but decelerate smoothly before stopping, eliminating the fluid slosh associated with abrupt stops. These smart conveyors gently transport filled cups, preventing spillage and product damage, ensuring that only clean, perfectly sealed cups enter the cartoning phase.
Pet food manufacturing environments, particularly those processing wet food, face stringent hygiene requirements. Spilled gravy or meat fragments create immediate bacterial risks. Navigating IP ratings is essential for equipment survival. Equipment in these zones must meet strict washdown standards. An IP65 rating protects against low-pressure water jets, suitable for wipe-downs and light cleaning. However, areas directly adjacent to the filler often require IP69K ratings, allowing for high-pressure, high-temperature caustic washdowns. Hygienic design principles must be engineered into the machine frame from the ground up. This includes sloped surfaces (typically 45 degrees) to prevent water pooling, minimal horizontal catch points, continuous TIG welds instead of bolted joints, and standoff mounts for sensors and motors to allow cleaning access behind components.

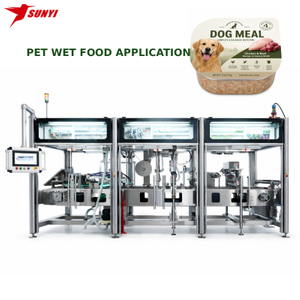

A cartoner cannot operate in isolation. It must act as a slave to the primary filler to maintain line balance. Integration with the pet food filling machine requires robust communication protocols. Utilizing Ethernet/IP or PROFINET allows the PLCs to share real-time speed and status data. Implementing PackML (Packaging Machine Language) standardizes state models, making it easier to sync the cartoner with the upstream filler. The system must manage surge and starvation states effectively. If the cartoner faults, the communication link tells the filler to pause or divert cups to an accumulation buffer. If the filler slows down, the cartoner automatically reduces its speed to prevent running empty cartons through the glue station.
Legacy cartoners rely on manual adjustments and reactive maintenance. Modern systems leverage IoT connectivity and predictive maintenance sensors. Vibration sensors on main drive shafts detect bearing wear weeks before a catastrophic failure, allowing maintenance teams to schedule repairs during planned downtime. Automated vision systems provide real-time quality control. High-speed cameras inspect every carton before discharge, detecting missing cups, misaligned labels, or unsealed flaps. If a defect is found, a high-speed pneumatic reject mechanism removes the faulty carton from the line without stopping production. This ensures only perfect products reach the palletizer, protecting the brand from retail rejections.
Downtime for format changes directly destroys OEE. Facilities running multiple cup sizes and multipack configurations require rapid changeovers. The operational impact of toolless changeovers cannot be overstated. Operators should not need wrenches to adjust guide rails or magazine widths. Recipe-driven HMI settings automate much of the process. When an operator selects a new SKU, servo motors automatically drive the carton transport chains, overhead confines, and glue guns to their precise positions. Automated change parts for switching between different cup diameters and carton dimensions reduce a 45-minute manual changeover to a 5-minute automated sequence, ensuring repeatable accuracy and eliminating human error.
The reliability of a food cartoning machine heavily depends on its blank extraction and gluing systems. Evaluating magazine capacity is the first step; a motorized, extended magazine reduces the frequency of operator interventions. Blank extraction reliability requires rotary vacuum feeders that physically pull the blank down and force it open into the flight chain, overcoming the natural warp of recycled boards. Hot-melt glue application precision minimizes material waste. Advanced glue controllers monitor pump pressure and line speed, adjusting the glue bead volume dynamically. This prevents glue stringing at high speeds and ensures a secure bond, especially when running variable-quality recycled boards that absorb adhesive differently.
Procurement teams must balance the higher initial capital expenditure (CapEx) of fully automated, servo-driven systems against long-term operational savings (OpEx). A mechanical, chain-driven cartoner costs less upfront but requires constant manual lubrication, frequent part replacements, and dedicated operators to clear jams. A fully servo-driven system carries a higher CapEx but drastically reduces OpEx. Servo motors eliminate hundreds of wear parts like chains, sprockets, and mechanical cams. This reduces maintenance labor and spare parts inventory. Furthermore, automated systems run with fewer operators, allowing facilities to reallocate labor to more productive areas, accelerating the return on investment.
Precision cartoning directly impacts material costs. Older machines frequently misfire glue or crush carton blanks during indexing, resulting in high scrap rates. Modern servo cartoners control the blank perfectly, reducing carton waste to near zero. This precision minimizes the need for secondary rework, where operators manually unpack crushed cartons and reload the cups. Furthermore, precise handling supports cost-effective transitions to sustainable pet food packaging materials. Thinner recycled boards cost less but require gentle handling to avoid tearing. Investing in a machine capable of processing these delicate materials allows manufacturers to realize the material savings without sacrificing line efficiency.
Production requirements will change over the lifespan of the equipment. Assessing the machine's capacity to handle future production increases is critical. A machine purchased to run 100 cartons per minute should possess the mechanical frame and servo capacity to run 150 cartons per minute with minor software upgrades. Scalability also applies to new packaging formats. The cartoner should handle future transitions to novel cup shapes or different secondary formats without requiring a complete line replacement. Modular machine designs allow manufacturers to add leaflet inserters, robotic loaders, or specialized closing modules years after the initial installation.
Not all packaging machinery builders understand the nuances of rigid cup handling in wet environments. The importance of choosing a partner with a proven track record specifically in rigid container handling cannot be ignored. A qualified cartoning machine manufacturer will provide reference installations operating in similar pet food facilities. They must demonstrate expertise in wet-environment packaging, detailing their approach to IP69K construction and hygienic cable routing. Furthermore, they should possess deep knowledge of modern automation technologies, including servo integration, vision inspection, and upstream communication protocols.
The Factory Acceptance Test (FAT) is the final opportunity to mitigate risk before the machine ships. Structuring the FAT to simulate actual production conditions is mandatory. Do not run generic cardboard boxes. The FAT must utilize the exact pet food cups, filled to the correct weight, and the specific sustainable carton blanks intended for production. The machine must demonstrate sustained runs at target speeds, execute toolless changeovers within the specified time limits, and successfully trigger all safety and reject mechanisms. A rigorous FAT prevents integration nightmares on the factory floor.
Run a continuous 4-hour test at maximum target speed.
Simulate upstream filler faults to test accumulation logic.
Execute a full format changeover using only the HMI and toolless adjustments.
Introduce warped carton blanks to verify rotary feeder reliability.
Trigger safety doors and e-stops to ensure immediate machine halt and safe recovery.
Implementation risks extend beyond the installation date. Mitigating these risks requires verifying the vendor's post-sale support infrastructure. Confirm the availability of local field service technicians who can respond rapidly to critical down situations. Investigate their spare parts inventory; critical servo drives and specialized vacuum cups must be available for overnight shipping. Finally, demand comprehensive operator training programs. The vendor should provide hands-on training during installation, covering HMI navigation, preventative maintenance routines, and troubleshooting procedures for common faults, ensuring the internal team can maintain high OEE independently.
Audit your current line speeds to identify exact bottleneck locations between the filler and the cartoner.
Draft a User Requirement Specification (URS) detailing your exact cup dimensions, material specs, and target throughput.
Request video demonstrations from vendors showing their equipment handling your specific cup style and carton board grade.
Schedule a site visit to a facility currently running the proposed cartoning equipment in a wet washdown environment.
A: Speeds vary by configuration; intermittent motion machines typically handle 40-120 cartons per minute (cpm), while continuous motion systems can exceed 300 cpm depending on the cup grouping.
A: Integration relies on synchronized PLC communication, utilizing smart sensors and accumulation conveyors to match the outfeed speed of the filler with the infeed capacity of the cartoner, preventing product spillage.
A: Yes, modern servo-driven cartoners feature adjustable magazines, variable pitch transport chains, and toolless change parts to accommodate various cup diameters, multipack configurations, and varying thicknesses of recycled carton boards.
A: Equipment in wet pet food environments typically requires at least an IP65 rating for low-pressure washdowns, while areas prone to heavy contamination may require IP69K for high-pressure, high-temperature cleaning.
A: Top-load machines drop or place cups vertically into an open carton, which is ideal for variety packs. End-load machines slide cups horizontally into a carton sleeve, generally allowing for higher continuous speeds.
A: Advanced conveyors use intelligent routing and smooth servo-driven motion to prevent cup tipping and product sloshing between the filler and the cartoner, ensuring a clean seal and reducing machine jams.
A: ROI calculations should factor in the reduction of manual packing labor, decreased material waste from misformed cartons, increased overall line throughput, reduced downtime from automated changeovers, and the ability to run cost-effective sustainable materials.
