In high-volume secondary packaging, micro-errors in product handling compound rapidly. A 1% error rate in small cup cartoning translates to thousands of crushed products, wasted cartons, and hours of unplanned downtime weekly. Small cups present unique handling challenges on the production line. Their tapered shapes, top-heavy weight distribution, and delicate foil seals make them highly prone to tipping, jamming, and misalignment during the infeed and loading phases.
Achieving high accuracy requires moving beyond raw throughput metrics. You must evaluate the mechanical variables, control systems, and integration factors that drive reliable performance. This guide breaks down the engineering principles necessary to evaluate and select a cup cartoning machine capable of sustained precision, waste reduction, and consistent quality.
Geometry Dictates Equipment Design: The shape, height, and center of gravity of small cups directly determine the required infeed mechanisms and loading orientation, heavily influencing overall cartoning efficiency and carton design.
Motion Control is the Core of Accuracy: Servo-driven mechanisms provide the precise, repeatable positioning required to prevent jams and carton damage, outperforming traditional pneumatic systems while minimizing human intervention.
Upstream Integration is Non-Negotiable: A cartoning machine cannot operate in a vacuum; its accuracy is heavily dependent on the consistency of the upstream filling and sealing processes.
Sustainability Through Precision: High machine accuracy directly minimizes wasted cartons and scrapped products, supporting corporate sustainability goals and improving material yield.
Vendor Validation Reduces Risk: Selecting a cup cartoning machine manufacturer requires rigorous Factory Acceptance Testing (FAT) using actual production materials to validate accuracy claims before deployment.
Product geometry dictates how packaging equipment must handle the item. Small cups carry a unique set of physical traits that complicate high-speed motion. Top-heavy cups, such as liquid-filled sauce containers, possess a high center of gravity. When a 2-ounce cup filled with liquid hits a conveyor stop, the fluid momentum shifts the center of gravity forward. If the guide rails are set even one millimeter too wide, the cup tips. A tipped cup triggers a cascade of downstream jams, requiring operators to halt the line and clear the debris manually.
Tapered profiles introduce another layer of mechanical complexity. Grouping and stacking tapered cups without causing them to nest or shingle requires precise mechanical guides. Most thermoformed cups feature a draft angle of 3 to 5 degrees. When backpressure builds on the infeed conveyor, this angle forces the cups to wedge into one another. When cups nest, optical sensors miscount the product grouping. This leads to incomplete carton loads and immediate machine faults. Managing this requires low-friction conveyor chains and choke belts that isolate line pressure before the collation station.
Seal integrity remains a strict operational priority. You must handle cups without applying any mechanical pressure to their delicate foil or film seals. Die-cut aluminum foil dents easily, while roll-stock film stretches and micro-tears under friction. Specialized gripping tools or rim-pushing mechanisms are necessary to advance the product safely. Applying force to the top film compromises the modified atmosphere packaging (MAP), leading to premature product spoilage.
Carton dimensions require careful advance planning based on the specific cup orientation. Excessive headspace inside the carton allows internal movement during transit, which reduces stacking strength and accuracy. Conversely, tight tolerances risk crushing the cups during the automated loading sequence. Packaging engineers must establish exact dimensional clearances to ensure smooth loading and product protection.
Pack Pattern | Recommended Length Clearance | Recommended Width Clearance | Primary Risk of Tight Tolerance |
|---|---|---|---|
1x2 Single Layer | 1.5mm - 2.0mm | 1.5mm - 2.0mm | Flap interference during tucking |
2x2 Single Layer | 2.0mm - 3.0mm | 2.0mm - 3.0mm | Corner cup crushing during side-load |
2x3 Nested/Inverted | 3.0mm - 4.0mm | 3.0mm - 4.0mm | Rim lock preventing full insertion |
3x4 Multi-Layer | 4.0mm - 5.0mm | 4.0mm - 5.0mm | Cumulative dimensional variance jamming |
The infeed section sets the rhythm for the entire cartoning process. If cups enter the loading zone out of phase, the machine will fail to load them correctly. Different cup materials demand specific infeed technologies to maintain spacing and timing. Plant managers must match the infeed style to the specific rigidity of the cup.
Timing screws excel at spacing and feeding rigid cups. They capture the cup body and advance it at a controlled pitch, matching the speed of the cartoner flights. The root diameter and thread pitch of the screw must be custom-machined for the exact cup profile. However, for delicate or flexible cup materials, star wheels often provide a better solution. Star wheels gently pocket the cups, preventing the friction and squeezing that timing screws inflict on thinner plastics.
Collation strategies determine how cups group into specific pack patterns. Mechanical tolerances at this stage dictate loading success. If the collation mechanism leaves a millimeter of variance, the pusher arm will clip the edge of the carton opening. Integrated vision systems act as the final quality gate. Vision sensors detect missing, inverted, or improperly sealed cups before they enter the loading station, triggering a high-speed pneumatic reject mechanism to eject defects without stopping the primary line.
Motion control technology defines the operational ceiling of any packaging equipment. Multi-axis servo motors allow engineers to program exact motion profiles. They provide smooth acceleration and deceleration curves, eliminating the jerky, aggressive movements commonly associated with pneumatic cylinders. Pneumatic systems drift as plant air pressure fluctuates throughout the day. Servo precision relies on absolute encoder feedback, holding position tolerances to within 0.1 millimeters. This repeatability is vital when loading fragile cups into tight cartons.
Automated, recipe-driven controls drastically reduce reliance on manual operator adjustments. When operators manually tweak pneumatic flow controls, they introduce variability that degrades overall equipment effectiveness (OEE). Servo systems lock in the exact parameters for each product run via the Human Machine Interface (HMI). This directly lowers the risk of human-induced errors, reduces scrap rates, and prevents production delays.
Changeover efficiency improves significantly with servo technology. An automatic cartoning machine equipped with servo drives allows for push-button, recipe-based changeovers. Guide rails, pusher arms, and carton magazines adjust automatically to pre-set positions. This minimizes manual wrench-turning and eliminates the trial-and-error adjustments typically required when switching between different cup sizes.

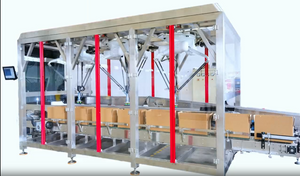

The method used to transfer cups into the carton depends entirely on speed requirements and pack complexity. Robotic top-loading utilizes delta or articulated robots to gently pick and place items. End-of-arm tooling uses vacuum suction cups with specific durometer ratings to grip the rigid cup rims, avoiding the foil seal entirely. Robots excel at building complex pack patterns, handling multi-layer configurations, or creating multi-flavor assortments within a single carton.
Continuous motion side-loading relies on barrel cam pushers for high-speed applications. As the product bucket and the erected carton travel parallel to each other, a cam-driven arm pushes the cups horizontally into the box. This requires absolute synchronization. Even a fraction of a second of timing drift causes the pusher to crush the cups against the carton flaps. Cam profiles must be machined to provide a smooth entry and rapid retraction to clear the trailing carton flap.
A perfectly collated group of cups cannot be loaded if the carton fails to erect properly. The quality of the carton blank and the reliability of the vacuum extraction mechanism govern the initial erecting phase. Worn vacuum cups or inconsistent vacuum pressure cause blanks to misfeed, instantly halting production. Rotary feeders generally outperform reciprocating feeders in high-speed applications by maintaining continuous control of the blank during the erecting sequence.
Inaccurate folding or flap damage usually stems from misaligned static plows or worn tucker arms. The machine must fold the paperboard along its pre-scored crease lines without tearing the material. Precise hot melt glue application or mechanical tuck-in mechanisms ensure uniform sealing. Glue guns must maintain consistent temperature and pressure to prevent stringing or weak bonds.
Consistent folding and sealing do more than just secure the product. They are critical for downstream case packing operations. A poorly sealed carton with a protruding flap will jam a case packer or palletizer. Furthermore, a crisp, square carton maintains a high-quality retail appearance, directly impacting brand perception on the store shelf.
Handling K-cups or Nespresso-style pods requires specialized high-speed orientation. These products possess extreme tapers, usually measuring around 51mm at the rim and tapering sharply to the base. To optimize carton volume and reduce packaging material, machines often need to invert alternating rows of pods. This nesting strategy allows more product to fit into a smaller footprint. Reliable coffee capsules cartoning depends on robotic or mechanical inversion stations that flip the pods 180 degrees without slowing down the primary line speed.
Material considerations dictate machine design in the coffee sector. Aluminum capsules dent easily under mechanical pressure, requiring soft-touch handling and low-friction guide rails. Conversely, plastic or compostable capsules often generate static electricity, causing them to stick together in the collation buckets. Equipment must feature static elimination bars and adapt to these distinct material behaviors to maintain high OEE.
Food environments introduce strict sanitation standards. A food cartoning machine operating near liquid fillers must handle inevitable spills. You must evaluate the necessity of 304 or 316L stainless steel construction, sloped surfaces to shed water, and IP65+ washdown ratings for all electrical enclosures. Equipment handling sauces, dips, or yogurt cannot harbor bacteria in hard-to-clean crevices or exposed threads.
Spill prevention during transport is equally critical. Smooth motion profiles and horizontal loading approaches mitigate the risk of product agitation. If a machine jerks a liquid-filled cup, the liquid sloshes, potentially rupturing the seal or contaminating the packaging zone. Effective small cup food cartoning relies on maintaining fluid stability throughout the packaging cycle, often requiring specialized acceleration curves programmed into the servo drives.
Medical dosage cups demand strict tolerance requirements. Sizing mismatches or loading errors in pharmaceutical packaging compromise patient safety and trigger regulatory audits. The machine must verify that the correct dosage cup accompanies the correct medication bottle within the carton, often requiring complex dual-infeed systems.
Track and trace integration is mandatory in this sector to meet 21 CFR Part 11 compliance. The cartoner must seamlessly integrate with serialization printers and tamper-evident labeling systems. Vision cameras must read and verify 2D matrix codes, lot numbers, and expiration dates on every carton before it leaves the machine discharge. Any unverified carton must be automatically rejected into a locked bin.
Machine precision cannot overcome poor material quality. Using recycled or low-caliper paperboard introduces significant risk. Low-quality board warps easily under humidity changes in the plant environment. Warped blanks cause magazine feeding failures and erecting jams, regardless of how precise the machine's vacuum system operates. You must define strict paperboard specifications with your material supplier, targeting a moisture content of 5% to 8% to prevent warping.
Slight variations in thermoformed cups also lead to cumulative errors. If a plastic cup's rim is half a millimeter wider than specified, a collation of four cups grows by two millimeters. This variance causes the group to miss the carton opening entirely, resulting in a severe crash. The equipment must feature adjustable or forgiving mechanical tolerances, such as spring-loaded pusher faces, to absorb these minor dimensional shifts without faulting.
Treating the cartoner as an isolated unit is a dangerous fallacy. Cartoning accuracy depends heavily on the upstream filling and sealing processes. If the sealer discharges cups with irregular spacing, or if water from a washdown process remains on the cup exteriors, cartoning efficiency degrades immediately. Wet cups slip on conveyor belts, ruining the timing pitch and causing the star wheels to miss the product.
Intelligent accumulation zones provide the necessary buffer between the sealer and the cartoner. A first-in, first-out (FIFO) accumulation table absorbs micro-stoppages. If the cartoner pauses for ten seconds to clear a bad carton, the accumulation zone holds the incoming cups. This prevents the upstream filler from shutting down, maintaining overall line efficiency. Variable Frequency Drives (VFDs) on the conveyors must use cascade control to speed up or slow down based on the accumulation level.
High machine accuracy directly supports corporate sustainability initiatives. When a machine loads cups precisely without crushing them, it minimizes wasted carton board. It also reduces the environmental footprint associated with scrapping perfectly good food or beverage products due to packaging faults. Improving material yield at the secondary packaging stage offers a measurable return on investment while reducing landfill waste. Tracking scrap rates through the machine's HMI provides actionable data for continuous improvement programs.
You cannot validate equipment performance based on sales brochures. Selecting a reliable cup cartoning machine manufacturer requires rigorous Factory Acceptance Testing. You must run the FAT using the exact cups, foil seals, and carton blanks that will be used in your actual production facility. Do not allow the vendor to use idealized, perfect samples for the test. Ship pallets of your worst-case materials, including slightly warped cartons and cups with minor seal overhangs.
Establish clear, uncompromising criteria for the FAT before signing the purchase order. Define the required sustained run times, acceptable reject rates, and maximum changeover durations. A standard FAT should include a continuous four-hour run targeting a 98% efficiency rate. A reputable cartoning machine supplier will welcome these metrics, as they prove the machine's capability under real-world stress conditions.
Audit your current cup geometries, draft angles, and center-of-gravity profiles to identify potential tipping risks before finalizing infeed equipment specifications.
Specify multi-axis servo-driven motion controls in your equipment RFQ to guarantee long-term positioning repeatability, eliminate pneumatic drift, and enable faster recipe-driven changeovers.
Require your equipment vendor to execute the Factory Acceptance Test using your worst-case production materials, mandating a minimum four-hour continuous run at production speeds.
Integrate vision inspection systems immediately upstream of the loading zone to detect and eject defective, inverted, or unsealed cups before they cause internal machine jams.
Establish strict material specifications with your paperboard supplier, controlling caliper and moisture content to prevent magazine feeding failures and erecting faults.
A: Tapered or top-heavy cups require slower acceleration on conveyors to prevent tipping. Specialized infeed mechanisms like timing screws or pocketed star wheels help stabilize these shapes, allowing higher speeds without compromising accuracy or causing the cups to shingle.
A: Erecting failures often result from warped carton blanks, low-quality paperboard, or worn vacuum cups. Maintaining strict material specifications, controlling plant humidity, and regularly inspecting the rotary magazine feeder prevents most erecting jams.
A: Yes. Modern equipment uses servo motors and recipe-driven software to adjust guide rails, pusher arms, and loading mechanisms automatically. This reduces changeover time and minimizes manual wrench adjustments between different cup formats.
A: Robotic arms gently pick and place delicate items using vacuum tooling without applying pressure to the seals. They excel at creating complex pack patterns, handling multi-layer configurations, or mixing different flavors into a single carton.
A: You must use gripping or pushing mechanisms designed to contact only the rigid rim or body of the cup. Avoid any mechanical pressure on the delicate top film, and ensure guide rails are polished to reduce friction.
A: Cartoning equipment relies on a consistent, properly pitched flow of products. If the upstream filler or sealer delivers irregularly spaced or wet cups, the cartoner will experience frequent jams, missed loads, and severely reduced operational efficiency.
